Yamaha XF50W - Leg Shield1,2

LEG SHIELD1,2
COVER AND PANEL
CHK
ADJ
<&
Order Job/Part
Q’ty
Remarks
1
2
3
4
5
6
7
8

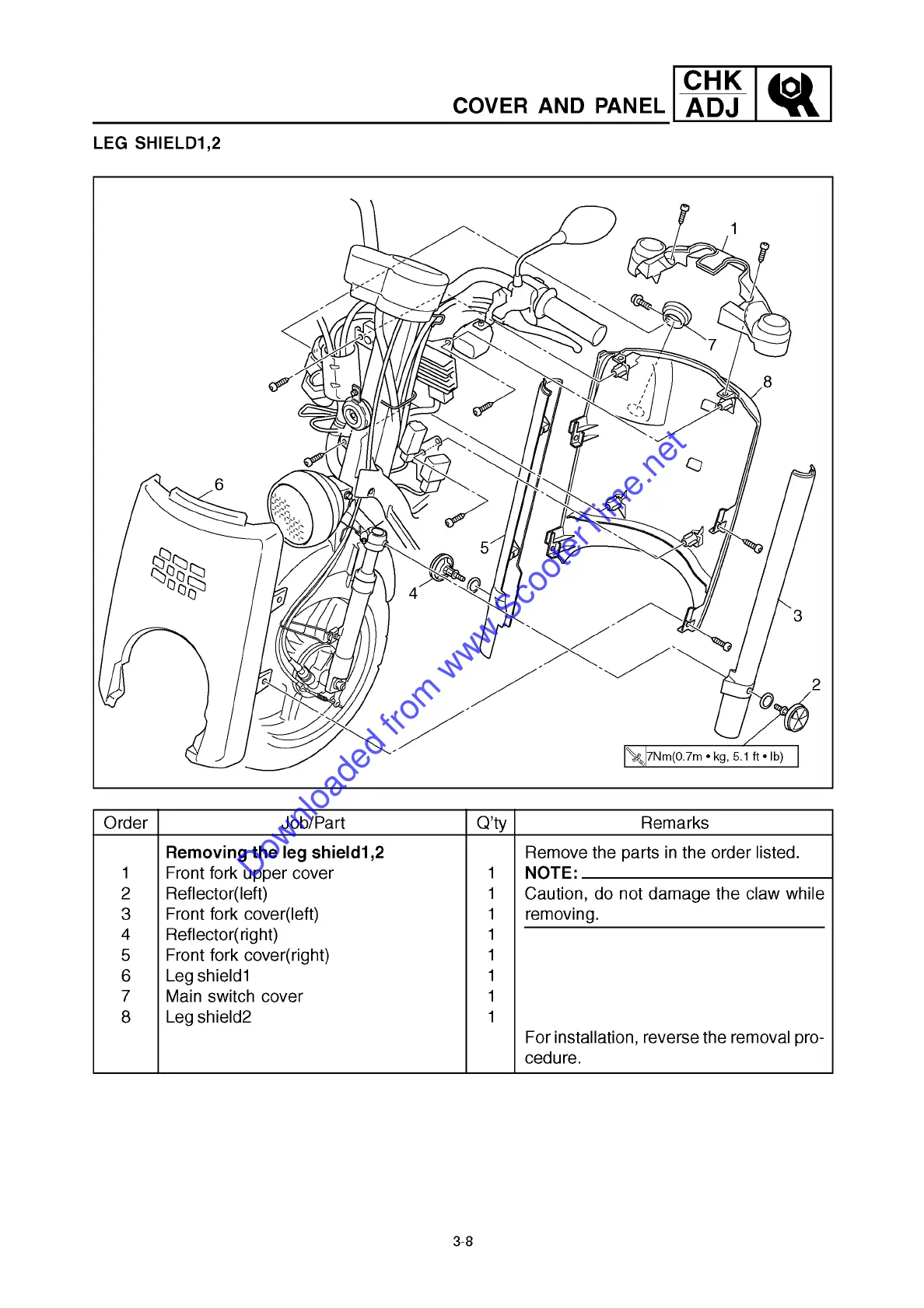

Removing the leg shield1,2
Front fork upper cover
Reflector(left)
Front fork cover(left)
Reflector(right)
Front fork cover(right)
Leg shield1
Main switch cover
Leg shield2
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
1
2
3
4
5
6
7
8
Removing the leg shield1,2
Front fork upper cover
Reflector(left)
Front fork cover(left)
Reflector(right)
Front fork cover(right)
Leg shield1
Main switch cover
Leg shield2
1
1
1
1
1
1
1
1
Caution, do not damage the claw while
removing.
For installation, reverse the removal pro-
cedure.
