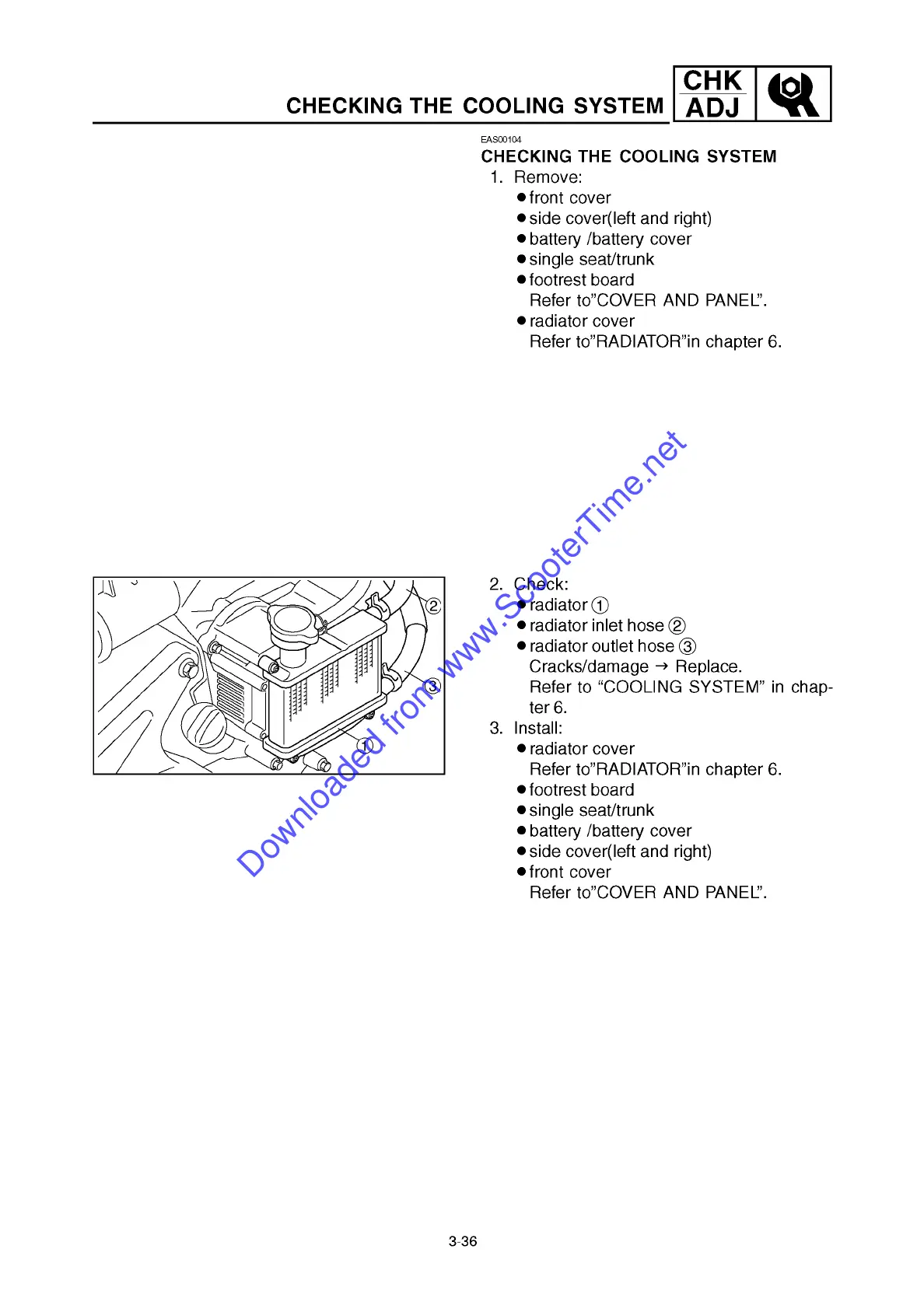

CHECKING THE COOLING SYSTEM
EAS00104
CHECKING THE COOLING SYSTEM
1.
Remove:
8front cover
8side cover(left and right)
8battery /battery cover
8single seat/trunk
8footrest board
Refer to”COVER AND PANEL”.
8radiator cover
Refer to”RADIATOR”in chapter 6.
Jl "
\ / -/C-^y ^
<^Cl&
^^v
Vg
iy,
^^\^y^fe^^\^p—\
N^gf
/ ^
I\XMT^
°V
^7
'•'•':\ 1'
*
s
o)
X3
/
^~ ^ ^^sr^/^js,
2.
Check:
• radiator©
• radiator inlet hose (2)
• radiator outlet hose (3)
Cracks/damage -» Replace.
Refer to “COOLING SYSTEM” in chap-
ter 6.
3. Install:
• radiator cover
Refer to”RADIATOR”in chapter 6.
• footrest board
• single seat/trunk
• battery /battery cover
• side cover(left and right)
• front cover
Refer to”COVER AND PANEL”.
3-36
