BELT DRIVE
ENG
%m
EAS00323

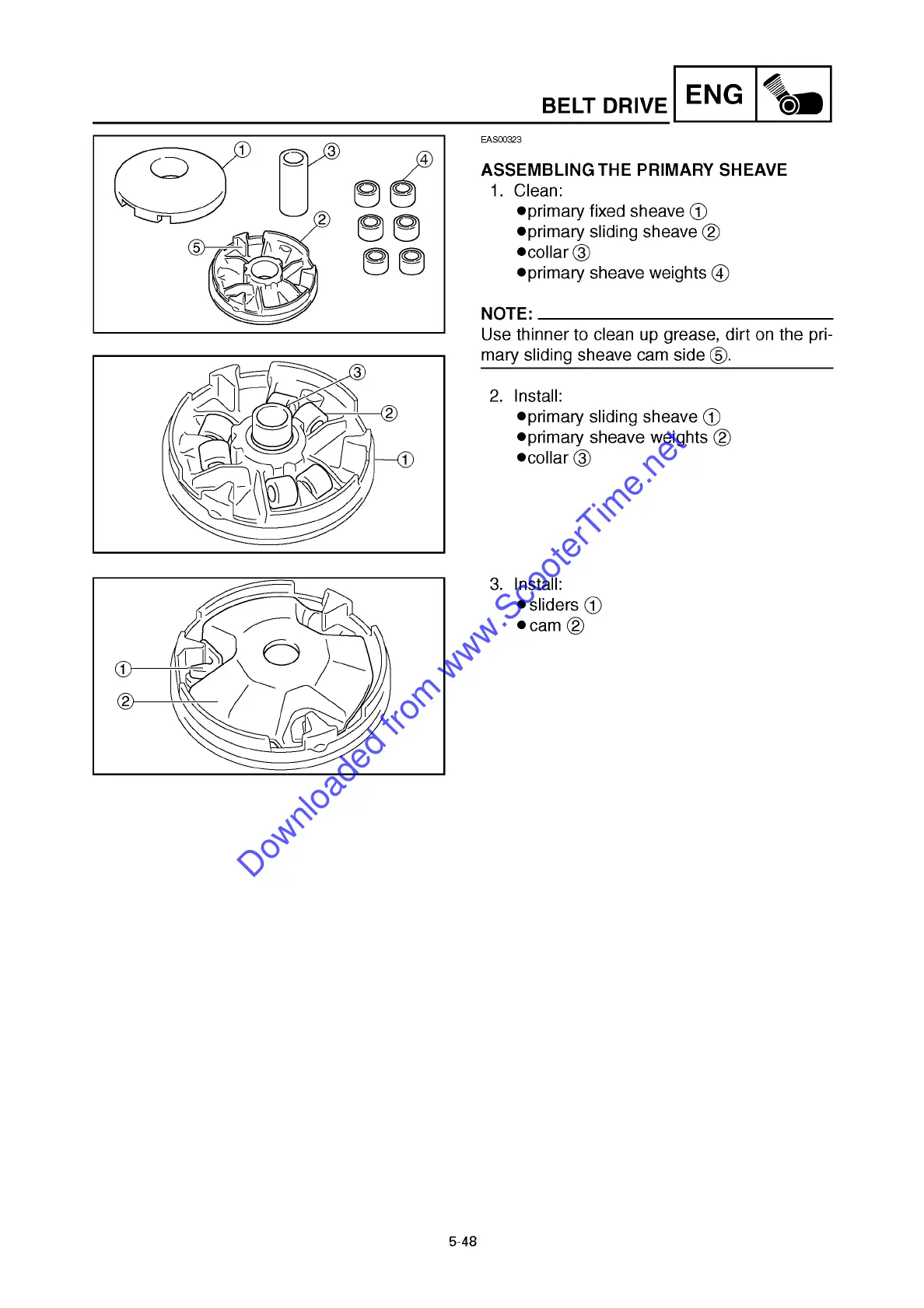

ASSEMBLING THE PRIMARY SHEAVE
1. Clean:
8primary fixed sheave 1
8primary sliding sheave 2
8collar 3
8primary sheave weights 4
NOTE:
Use thinner to clean up grease, dirt on the pri-
mary sliding sheave cam side 5.
2. Install:
8primary sliding sheave 1
8primary sheave weights 2
8collar 3
3. Install:
8sliders 1
8cam 2
5-48
