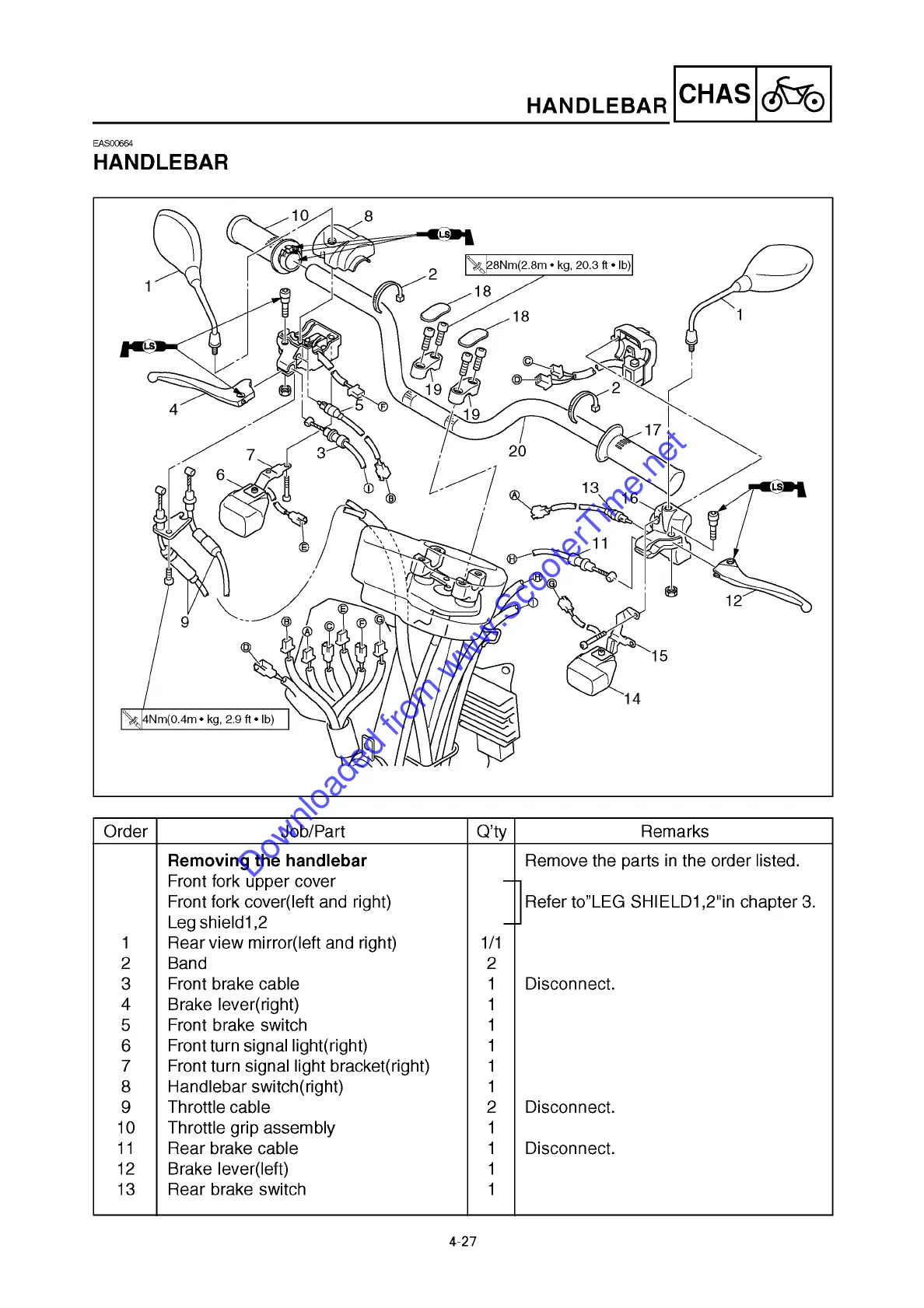

HANDLEBAR
CHAS (3^3^)
EAS00664
HANDLEBAR
-10^
Order Job/Part
Q’ty
Remarks
Removing the handlebar Remove the parts in the order listed.
Front fork upper cover
Front fork cover(left and right) Refer to”LEG SHIELD1,2"in chapter 3.
Leg shield1,2
1 Rear view mirror(left and right) 1/1
2 Band 2
3 Front brake cable 1 Disconnect.
4 Brake lever(right) 1
5 Front brake switch 1
6 Front turn signal light(right) 1
7 Front turn signal light bracket(right) 1
8 Handlebar switch(right) 1
9 Throttle cable 2 Disconnect.
10 Throttle grip assembly 1
11 Rear brake cable 1 Disconnect.
12 Brake lever(left) 1
13 Rear brake switch 1
4-27
