FUEL INJECTION SYSTEM
FI ifl
EAS00894

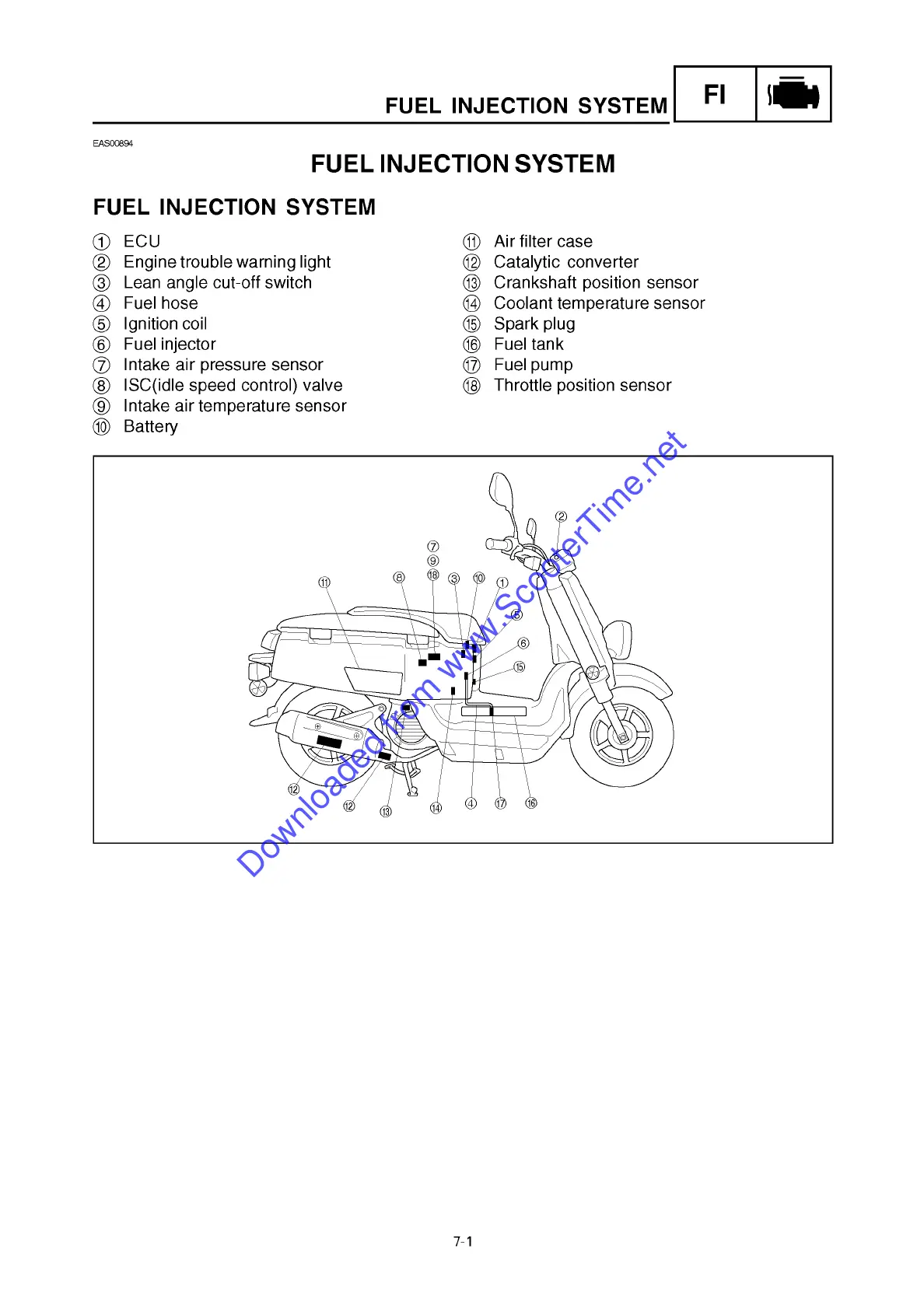

FUEL INJECTION SYSTEM
FUEL INJECTION SYSTEM
1 ECU q Air filter case
2 Engine trouble warning light w Catalytic converter
3 Lean angle cut-off switch e Crankshaft position sensor
4 Fuel hose r Coolant temperature sensor
5 Ignition coil t Spark plug
6 Fuel injector y Fuel tank
7 Intake air pressure sensor u Fuel pump
8 ISC(idle speed control) valve i Throttle position sensor
9 Intake air temperature sensor
0 Battery
7-1
