Yamaha XF50W - Troubleshooting

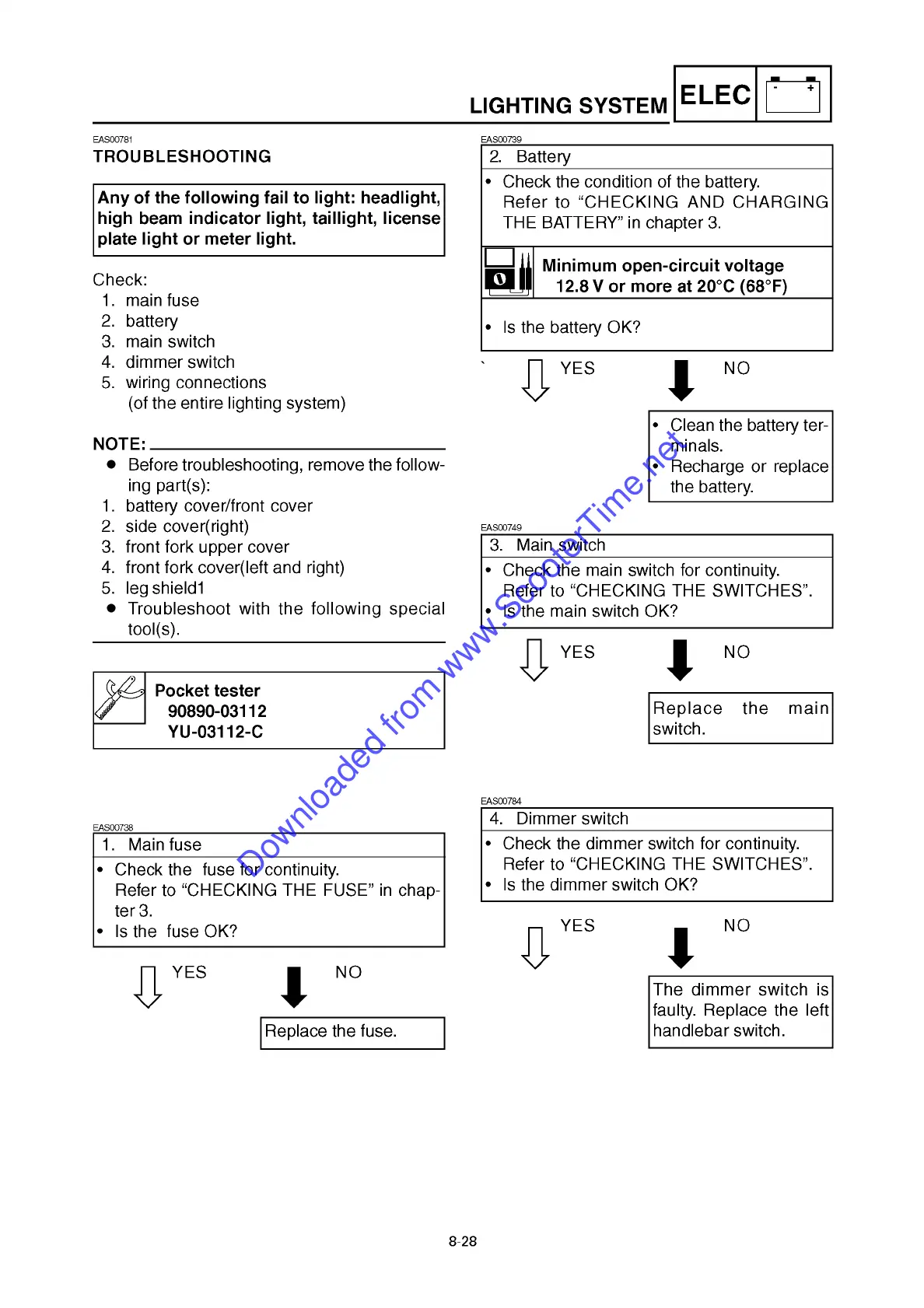

LIGHTING SYSTEM
EAS00781
TROUBLESHOOTING
Any of the following fail to light: headlight,
high beam indicator light, taillight, license
plate light or meter light.
Check:
1. main fuse
2. battery
3. main switch
4. dimmer switch
5. wiring connections
(of the entire lighting system)
NOTE:
8 Before troubleshooting, remove the follow-
ing part(s):
1. battery cover/front cover
2. side cover(right)
3. front fork upper cover
4. front fork cover(left and right)
5. leg shield1
8 Troubleshoot with the following special
tool(s).
y*
Pocket tester
90890-03112
YU-03112-C
EAS00739
2. Battery
• Check the condition of the battery.
Refer to “CHECKING AND CHARGING
THE BATTERY” in chapter 3.
a
Minimum open-circuit voltage
12.8 V or more at 20°C (68°F)
• Is the battery OK?
` YES
V
X
NO
• Clean the battery ter-
minals.
• Recharge or replace
the battery.
EAS00749
• Check the main switch for continuity.
Refer to “CHECKING THE SWITCHES”.
• Is the main switch OK?
YES
V
\
NO
Replace the main
switch.
EAS00738
1. Main fuse
• Check the fuse for continuity.
Refer to “CHECKING THE FUSE” in chap-
ter 3.
• Is the fuse OK?
YES
V
X
NO
Replace the fuse.
EAS00784
• Check the dimmer switch for continuity.
Refer to “CHECKING THE SWITCHES”.
• Is the dimmer switch OK?
r-i YES
V
X
NO
The dimmer switch is
faulty. Replace the left
handlebar switch.
3. Main switch
4. Dimmer switch
8-28
