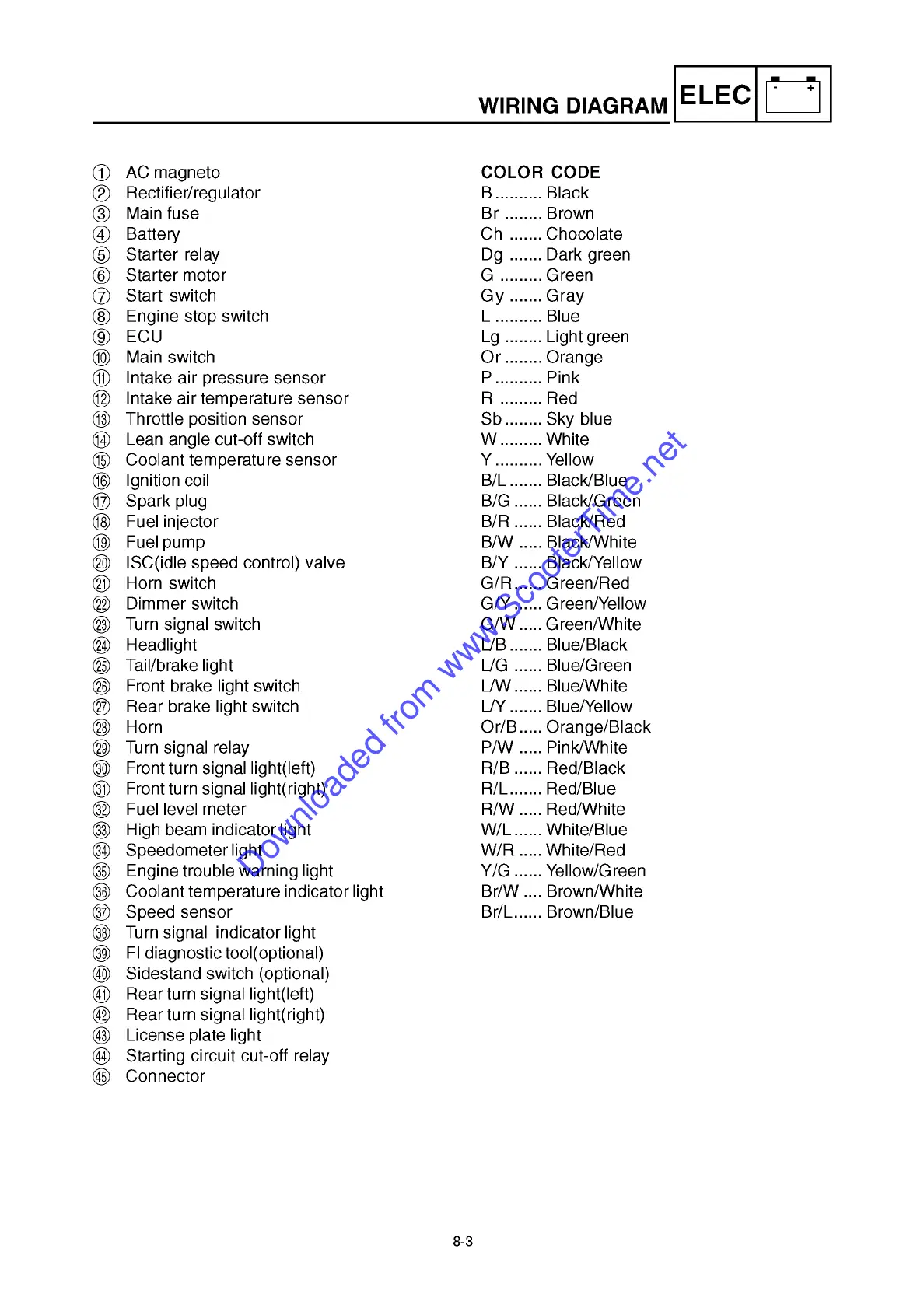

WIRING DIAGRAM
1 AC magneto COLOR CODE
2 Rectifier/regulator B Black
3 Main fuse Br Brown
4 Battery Ch Chocolate
5 Starter relay Dg Dark green
6 Starter motor G Green
7 Start switch Gy Gray
8 Engine stop switch L Blue
9 ECU Lg Light green
0 Main switch Or Orange
q Intake air pressure sensor P Pink
w Intake air temperature sensor R Red
e Throttle position sensor Sb Sky blue
r Lean angle cut-off switch W White
t Coolant temperature sensor Y Yellow
y Ignition coil B/L Black/Blue
u Spark plug B/G Black/Green
i Fuel injector B/R Black/Red
o Fuel pump B/W Black/White
p ISC(idle speed control) valve B/Y Black/Yellow
a Horn switch G/R Green/Red
s Dimmer switch G/Y Green/Yellow
d Turn signal switch G/W Green/White
f Headlight L/B Blue/Black
g Tail/brake light L/G Blue/Green
h Front brake light switch L/W Blue/White
j Rear brake light switch L/Y Blue/Yellow
k Horn Or/B Orange/Black
l Turn signal relay P/W Pink/White
; Front turn signal light(left) R/B Red/Black
z Front turn signal light(right) R/L Red/Blue
x Fuel level meter R/W Red/White
c High beam indicator light W/L White/Blue
v Speedometer light W/R White/Red
b Engine trouble warning light Y/G Yellow/Green
n Coolant temperature indicator light Br/W .... Brown/White
m Speed sensor Br/L Brown/Blue
, Turn signal indicator light
. FI diagnostic tool(optional)
/ Sidestand switch (optional)
! Rear turn signal light(left)
@ Rear turn signal light(right)
# License plate light
$ Starting circuit cut-off relay
% Connector
