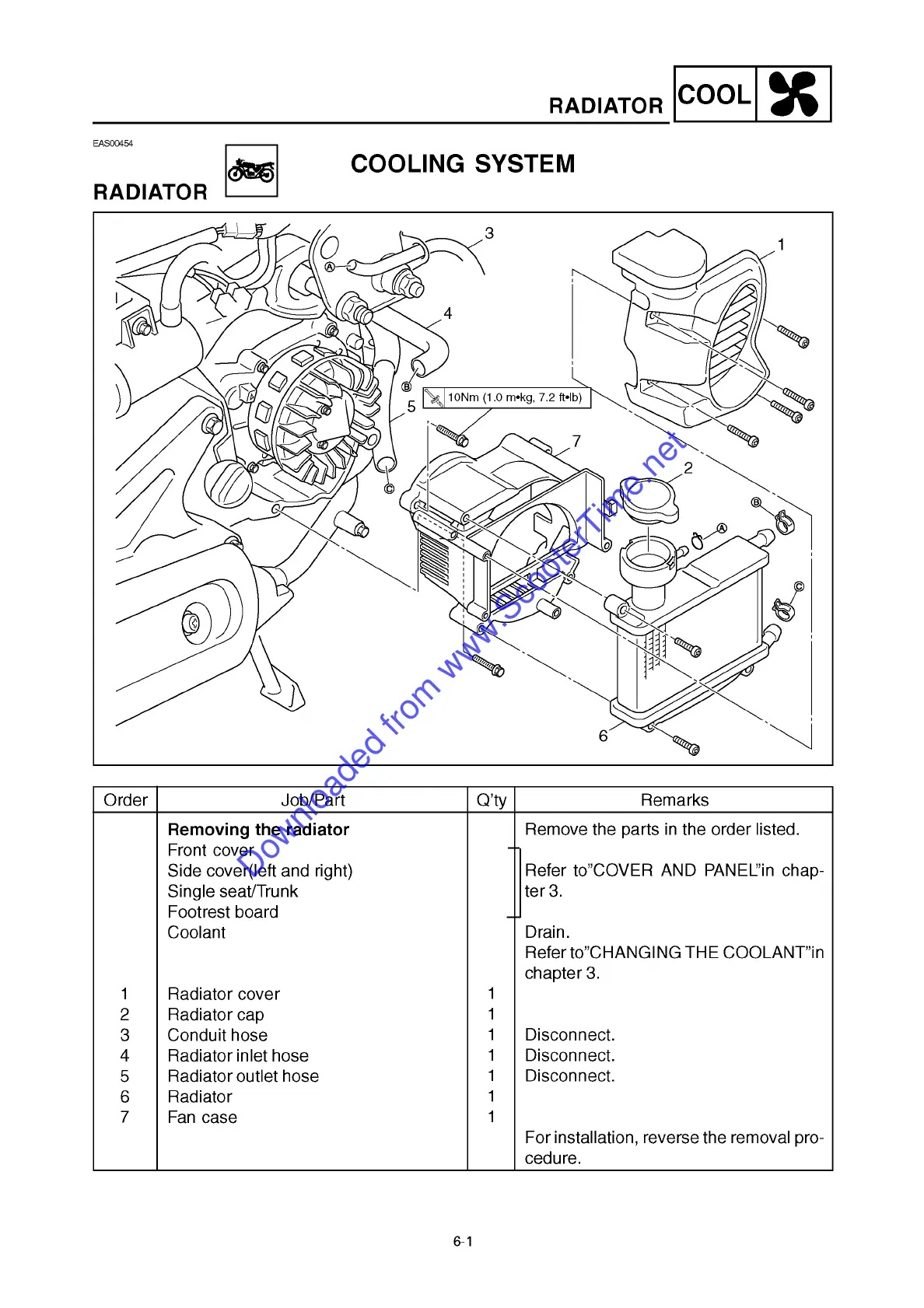

Yamaha XF50W - RADIATOR

RADIATOR
COOL JC
EAS00454
RADIATOR
COOLING SYSTEM
Order Job/Part
Q’ty
Remarks
1
2
3
4
5
6
7
Removing the radiator
Front cover
Side cover(left and right)
Single seat/Trunk
Footrest board
Coolant
Radiator cover
Radiator cap
Conduit hose
Radiator inlet hose
Radiator outlet hose
Radiator
Fan case
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to”COVER AND PANEL”in chap-
ter 3.
Drain.
Refer to”CHANGING THE COOLANT”in
chapter 3.
Disconnect.
Disconnect.
Disconnect.
For installation, reverse the removal pro-
cedure.
