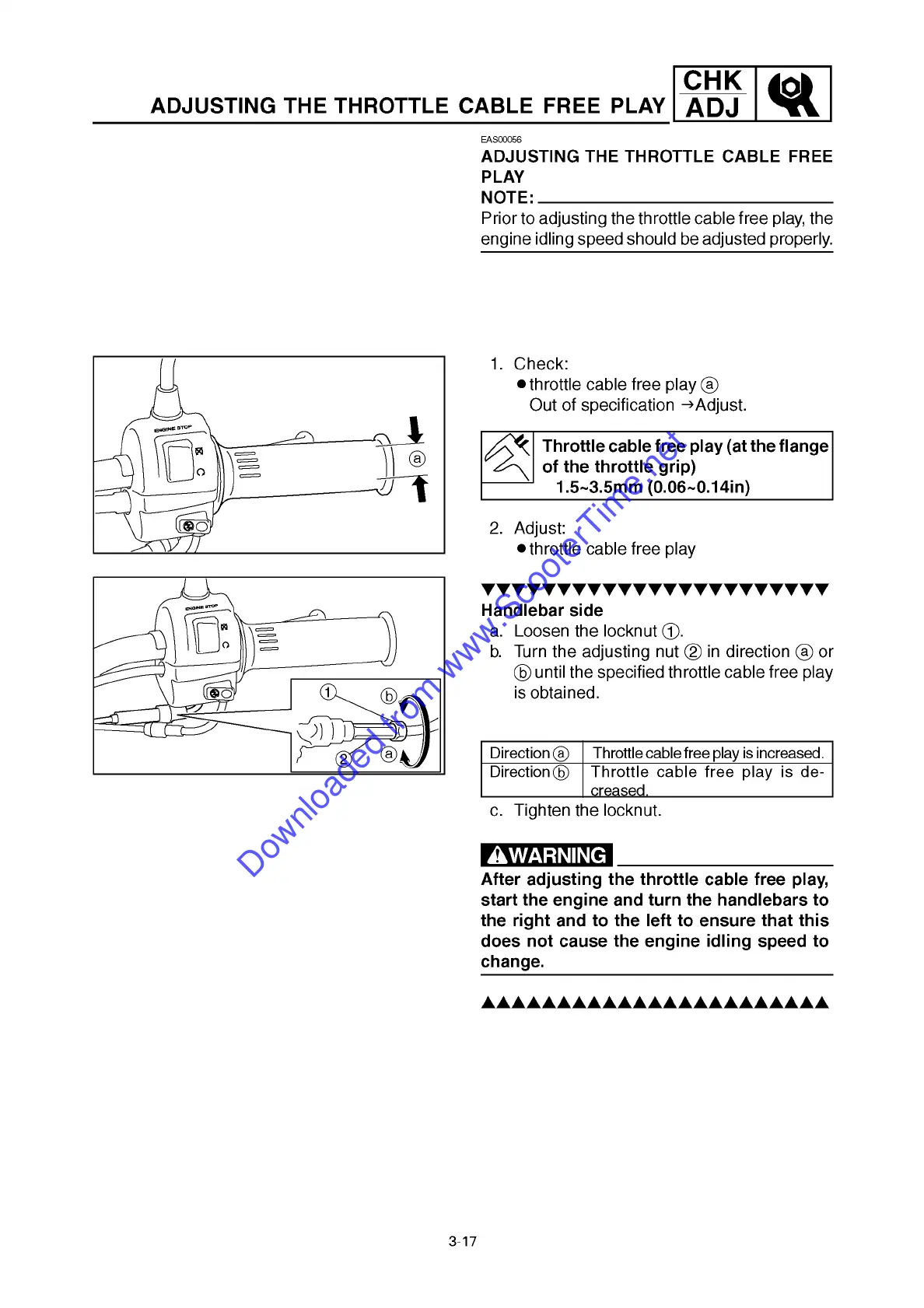

ADJUSTING THE THROTTLE CABLE FREE PLAY
EAS00056
ADJUSTING THE THROTTLE CABLE FREE
PLAY
NOTE:
Prior to adjusting the throttle cable free play, the
engine idling speed should be adjusted properly.
1. Check:
• throttle cable free play a
Out of specification ^Adjust.
Throttle cable free play (at the flange
of the throttle grip)
1.5~3.5mm (0.06~0.14in)
2. Adjust:
8throttle cable free play
•••••••••••••••••••••••
Handlebar side
a. Loosen the locknut 1.
b. Turn the adjusting nut 2 in direction a or
b until the specified throttle cable free play
is obtained.
Direction a Throttle cable free play is increased.
Direction b Throttle cable free play is de-
creased.
c. Tighten the locknut.
w
After adjusting the throttle cable free play,
start the engine and turn the handlebars to
the right and to the left to ensure that this
does not cause the engine idling speed to
change.
•••••••••••••••••••••••
