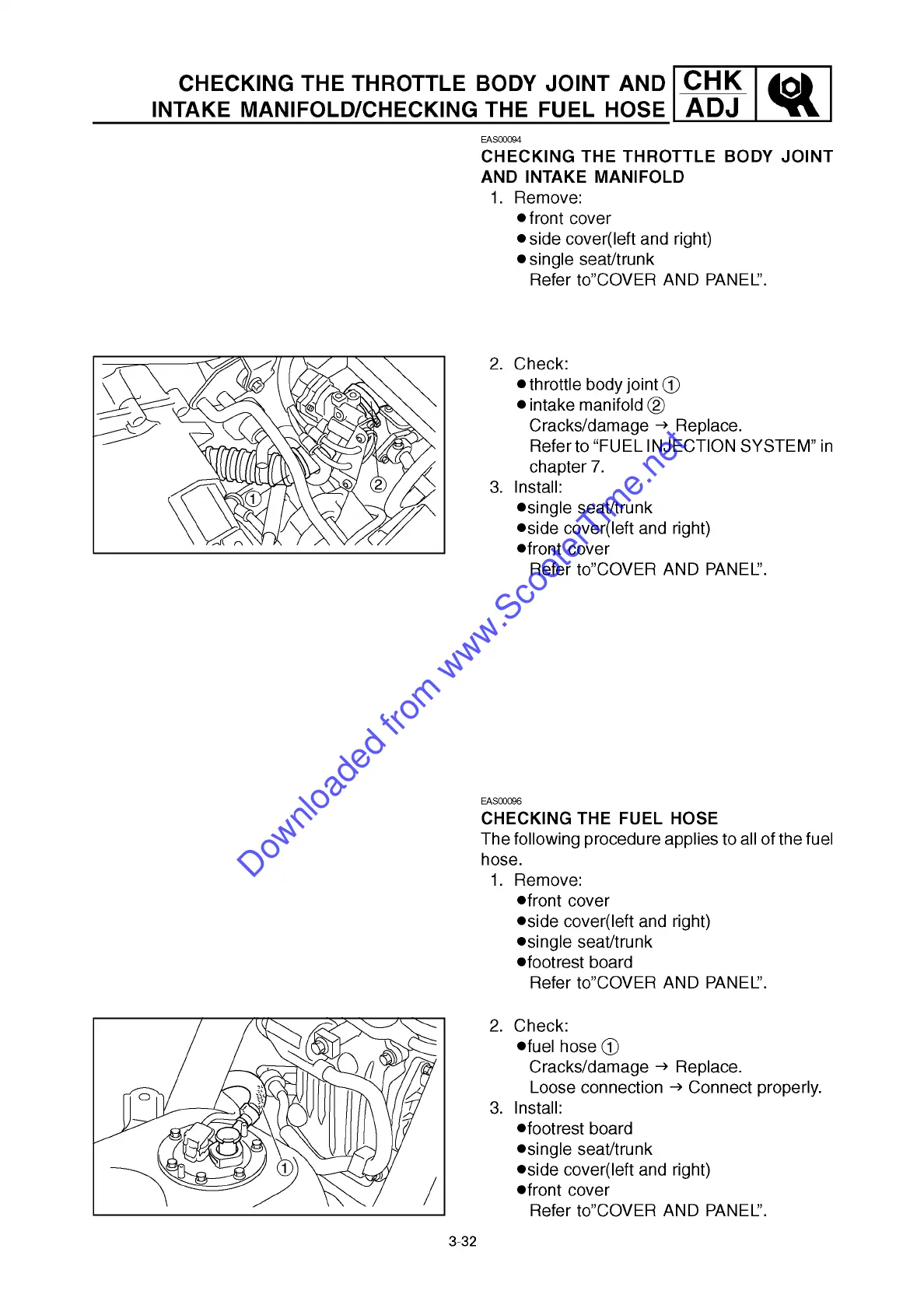

Yamaha XF50W - Checking the Throttle Body Joint and Intake Manifold; Checking the Fuel Hose

CHECKING THE THROTTLE BODY JOINT AND
INTAKE MANIFOLD/CHECKING THE FUEL HOSE
EAS00094
CHECKING THE THROTTLE BODY JOINT
AND INTAKE MANIFOLD
1. Remove:
8front cover
8side cover(left and right)
8single seat/trunk
Refer to”COVER AND PANEL”.
2. Check:
• throttle body joint (T)
• intake manifold (2)
Cracks/damage -» Replace.
Refer to “FUEL INJECTION SYSTEM” in
chapter 7.
3. Install:
•single seat/trunk
•side cover(left and right)
•front cover
Refer to”COVER AND PANEL”.
EAS00096
CHECKING THE FUEL HOSE
The following procedure applies to all of the fuel
hose.
1. Remove:
•front cover
•side cover(left and right)
•single seat/trunk
•footrest board
Refer to”COVER AND PANEL”.
2. Check:
•fuel hose (T)
Cracks/damage -» Replace.
Loose connection -» Connect properly.
3. Install:
•footrest board
•single seat/trunk
•side cover(left and right)
•front cover
Refer to”COVER AND PANEL”.
