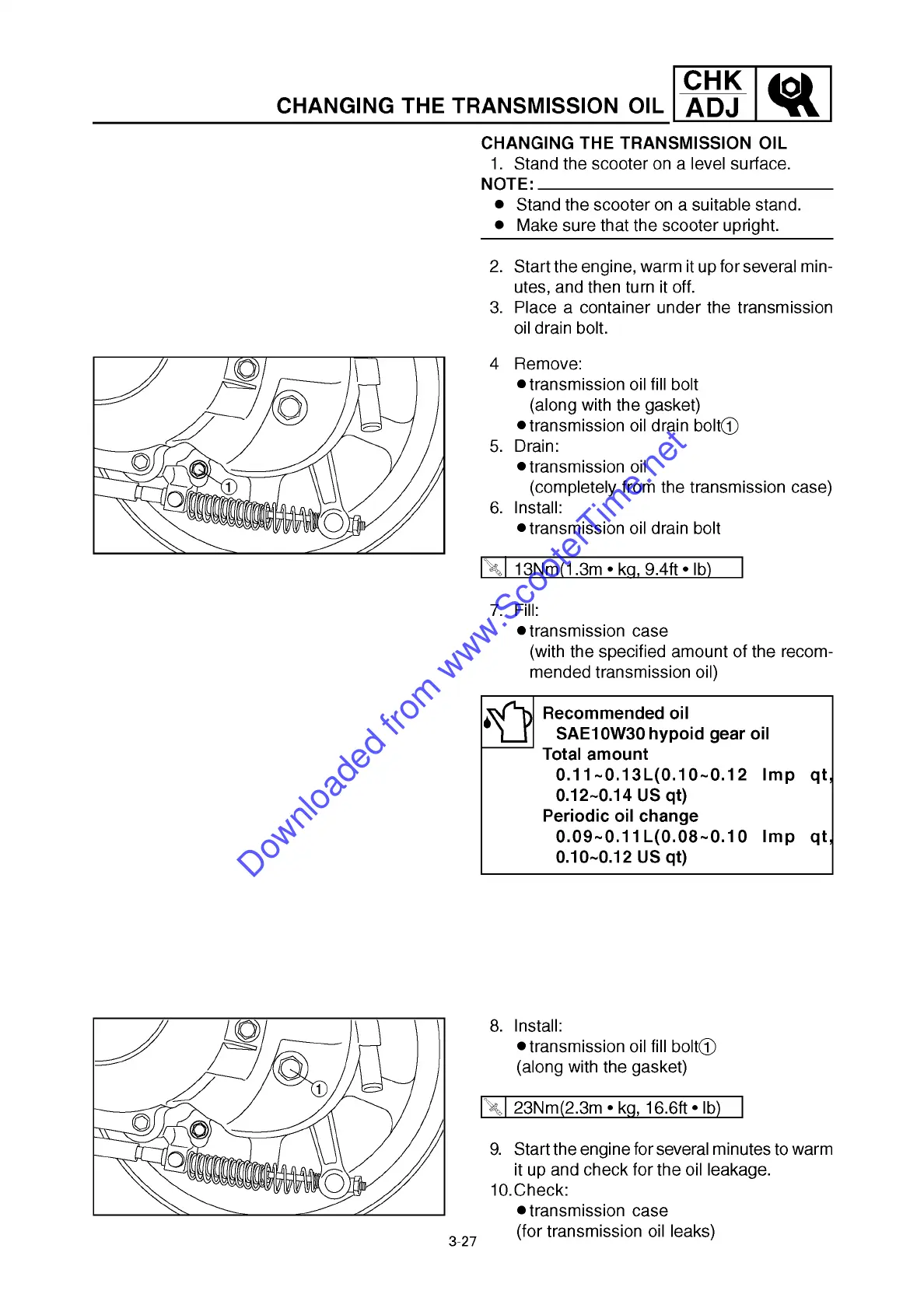

Yamaha XF50W - Changing the Transmission Oil

CHANGING THE TRANSMISSION OIL
CHK
ADJ
<&
CHANGING THE TRANSMISSION OIL
1. Stand the scooter on a level surface.
NOTE:
• Stand the scooter on a suitable stand.
• Make sure that the scooter upright.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place a container under the transmission
oil drain bolt.
4 Remove:
• transmission oil fill bolt
(along with the gasket)
• transmission oil drain bolt©
5. Drain:
• transmission oil
(completely from the transmission case)
6. Install:
• transmission oil drain bolt
XI 13Nm(1.3m * kg, 9.4ft * lb)
7. Fill:
• transmission case
(with the specified amount of the recom-
mended transmission oil)
K}
Recommended oil
SAE10W30 hypoid gear oil
Total amount
0.11~0.13L(0.10~0.12 Imp qt,
0.12~0.14 US qt)
Periodic oil change
0.09~0.11L(0.08~0.10 Imp qt,
0.10~0.12 US qt)
3-27
8. Install:
• transmission oil fill bolt©
(along with the gasket)
XI 23Nm(2.3m * kg, 16.6ft * lb)
9. Start the engine for several minutes to warm
it up and check for the oil leakage.
10.Check:
• transmission case
(for transmission oil leaks)
