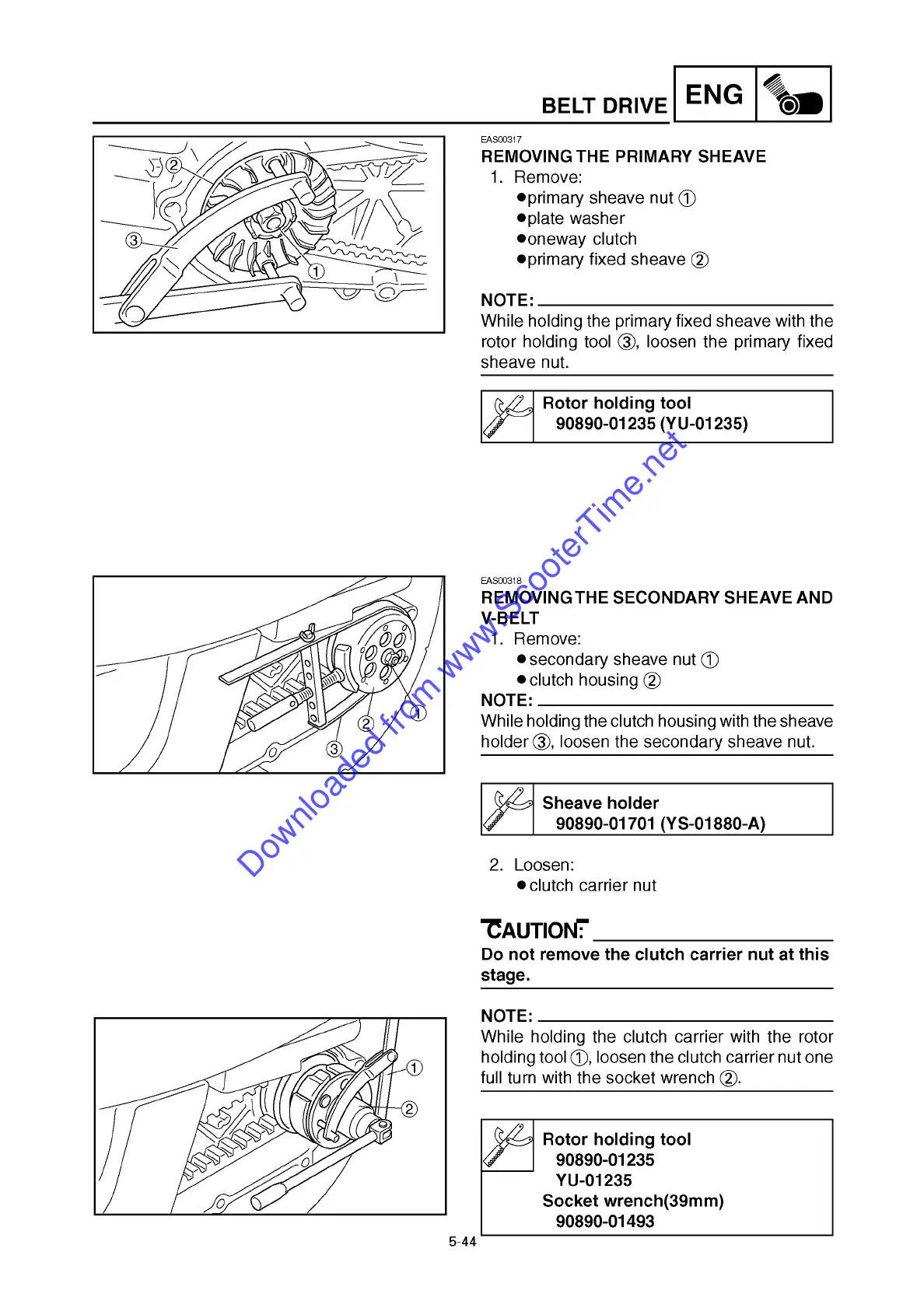

Yamaha XF50W - Removing the Primary Sheave; Removing the Secondary Sheave and V-Belt

BELT DRIVE
ENG
%m
EAS00317
REMOVING THE PRIMARY SHEAVE
1. Remove:
8primary sheave nut 1
8plate washer
8oneway clutch
8primary fixed sheave 2
NOTE:
While holding the primary fixed sheave with the
rotor holding tool 3, loosen the primary fixed
sheave nut.
Rotor holding tool
90890-01235 (YU-01235)
-^— "\f ^^^^\\
Jf2/®
/J ijy
® /
-^z^r^^
«S
If M.
/ / jS/Ki/
EAS00318
REMOVING THE SECONDARY SHEAVE AND
V-BELT
1. Remove:
8secondary sheave nut 1
8clutch housing 2
NOTE:
While holding the clutch housing with the sheave
holder 3, loosen the secondary sheave nut.
y-
Sheave holder
90890-01701 (YS-01880-A)
2. Loosen:
8clutch carrier nut
cC
Do not remove the clutch carrier nut at this
stage.
NOTE:
While holding the clutch carrier with the rotor
holding tool 1, loosen the clutch carrier nut one
full turn with the socket wrench 2.
f,
5-44
Rotor holding tool
90890-01235
YU-01235
Socket wrench(39mm)
90890-01493
