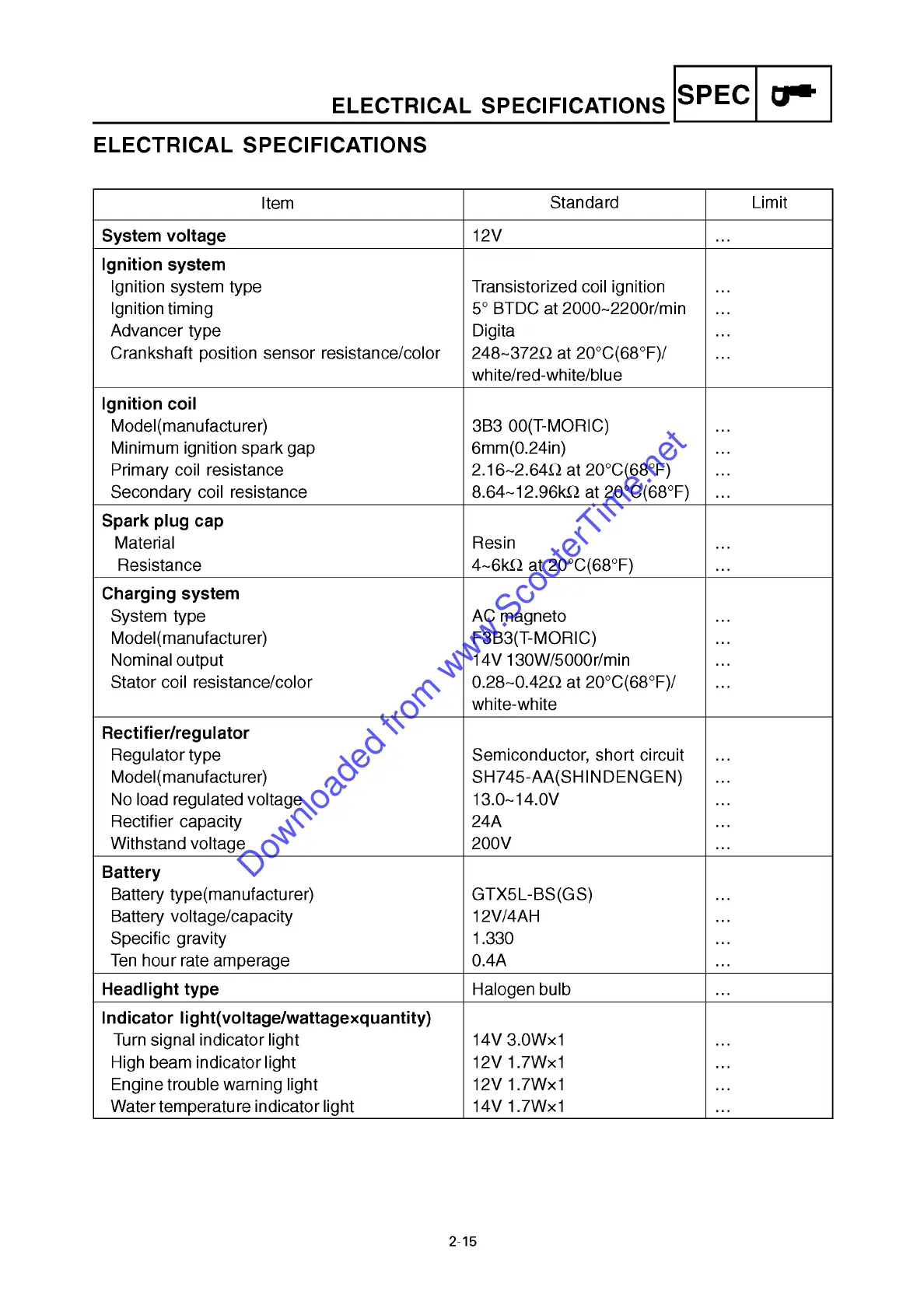

ELECTRICAL SPECIFICATIONS
SPEC 0*
ELECTRICAL SPECIFICATIONS
Item
Standard Limit
System voltage 12V …
Ignition system
Ignition system type Transistorized coil ignition …
Ignition timing 5° BTDC at 2000~2200r/min …
Advancer type Digita …
Crankshaft position sensor resistance/color 248~372 at 20°C(68°F)/
white/red-white/blue
…
Ignition coil
Model(manufacturer) 3B3 00(T-MORIC) …
Minimum ignition spark gap 6mm(0.24in) …
Primary coil resistance 2.16~2.64Q at 20°C(68°F) …
Secondary coil resistance 8.64~12.96k£2 at 20°C(68°F) …
Spark plug cap
Material Resin …
Resistance 4~6k£2 at 20°C(68°F) …
Charging system
System type AC magneto …
Model(manufacturer) F3B3(T-MORIC) …
Nominal output 14V 130W/5000r/min …
Stator coil resistance/color 0.28~0.42 at 20°C(68°F)/
white-white
…
Rectifier/regulator
Regulator type Semiconductor, short circuit …
Model(manufacturer) SH745-AA(SHINDENGEN) …
No load regulated voltage 13.0~14.0V …
Rectifier capacity 24A …
Withstand voltage 200V …
Battery
Battery type(manufacturer) GTX5L-BS(GS) …
Battery voltage/capacity 12V/4AH …
Specific gravity 1.330 …
Ten hour rate amperage 0.4A …
Headlight type Halogen bulb …
Indicator light(voltage/wattage×quantity)
Turn signal indicator light 14V 3.0W×1 …
High beam indicator light 12V 1.7W×1 …
Engine trouble warning light 12V 1.7W×1 …
Water temperature indicator light 14V 1.7W×1 …
