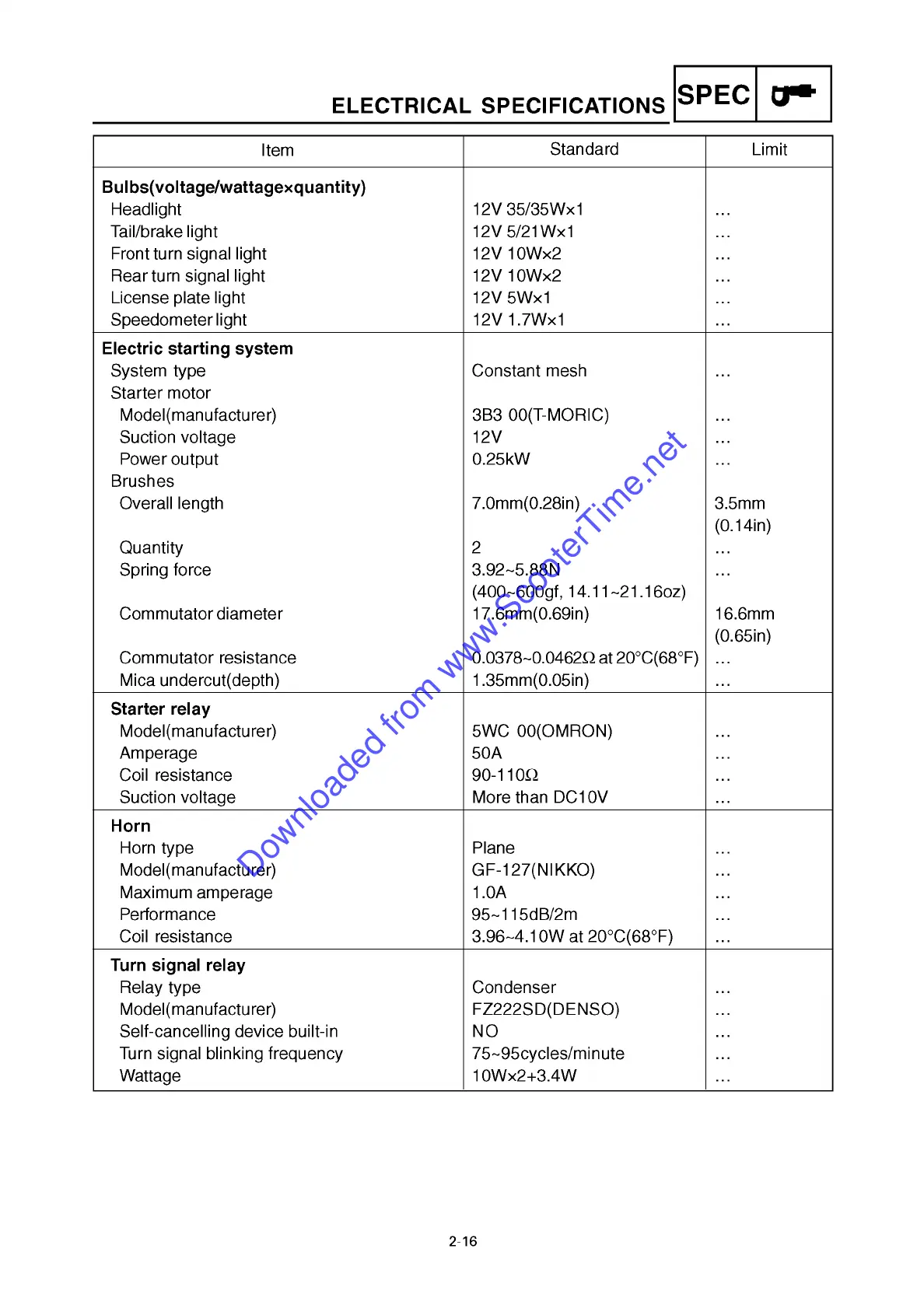

ELECTRICAL SPECIFICATIONS
SPEC 0*
Item
Standard
Limit
Bulbs(voltage/wattage×quantity)
Headlight
Tail/brake light
Front turn signal light
Rear turn signal light
License plate light
Speedometer light
12V 35/35W×1
12V 5/21W×1
12V 10W×2
12V 10W×2
12V 5W×1
12V 1.7W×1
…
…
…
…
…
…
Electric starting system
System type
Starter motor
Model(manufacturer)
Suction voltage
Power output
Brushes
Overall length
Quantity
Spring force
Commutator diameter
Commutator resistance
Mica undercut(depth)
Constant mesh
3B3 00(T-MORIC)
12V
0.25kW
7.0mm(0.28in)
2
3.92~5.88N
(400~600gf, 14.11~21.16oz)
17.6mm(0.69in)
0.0378~0.0462 at 20°C(68°F)
1.35mm(0.05in)
…
…
…
…
3.5mm
(0.14in)
…
…
16.6mm
(0.65in)
…
…
Starter relay
Model(manufacturer)
Amperage
Coil resistance
Suction voltage
5WC 00(OMRON)
50A
90-110
More than DC10V
…
…
…
…
Horn
Horn type
Model(manufacturer)
Maximum amperage
Performance
Coil resistance
Plane
GF-127(NIKKO)
1.0A
95~115dB/2m
3.96~4.10W at 20°C(68°F)
…
…
…
…
…
Turn signal relay
Relay type
Model(manufacturer)
Self-cancelling device built-in
Turn signal blinking frequency
Wattage
Condenser
FZ222SD(DENSO)
NO
75~95cycles/minute
10W×2+3.4W
…
…
…
…
…
2-16
