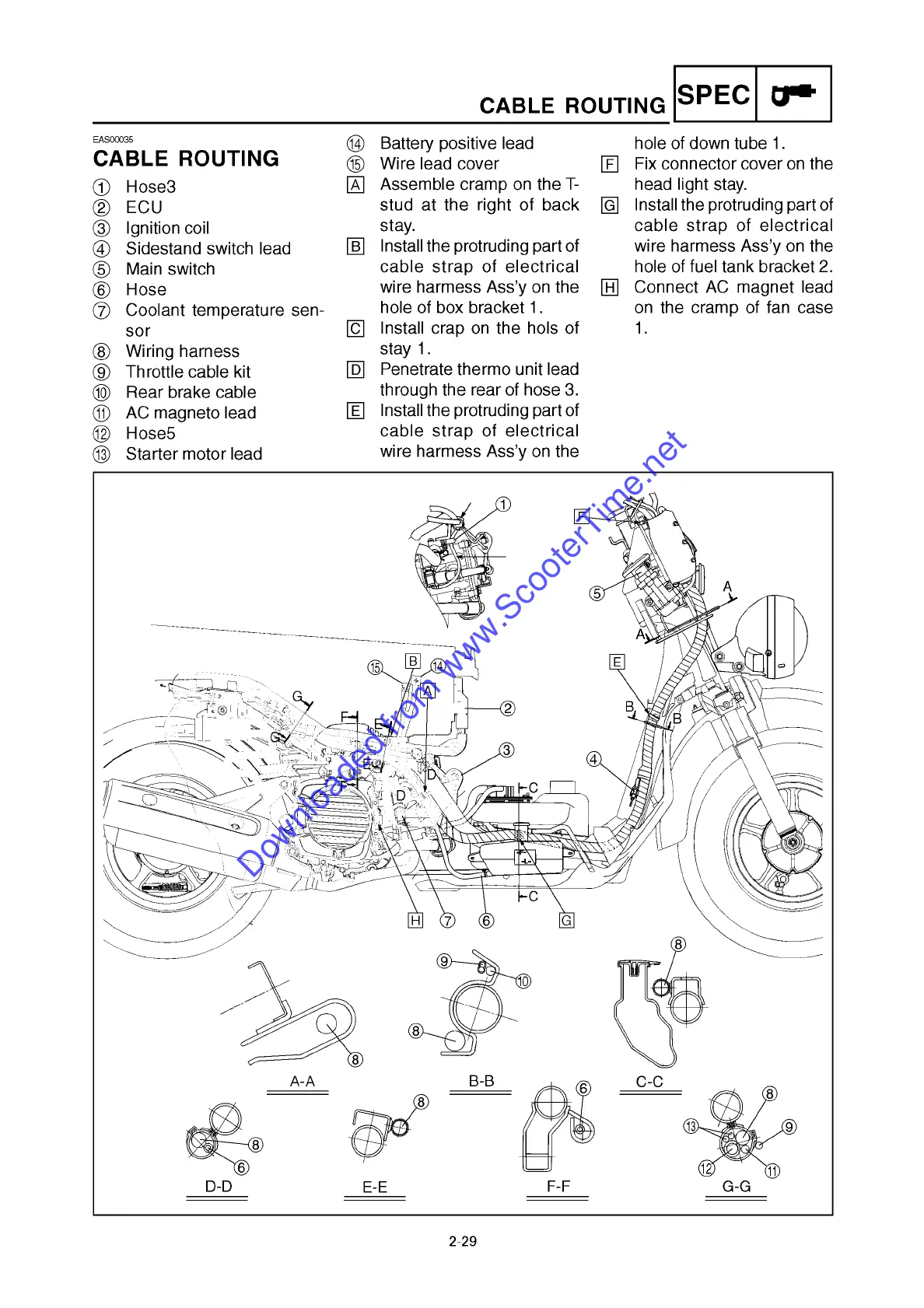

CABLE ROUTING
SPEC 0*
EAS00035
CABLE ROUTING
1 Hose3
2 ECU
3 Ignition coil
4 Sidestand switch lead
5 Main switch
6 Hose
7 Coolant temperature
sen-
sor
8 Wiring harness
9 Throttle cable kit
0 Rear brake cable
q AC magneto lead
w Hose5
e Starter motor lead
r
t
A
B
C
D
E
Battery positive lead
Wire lead cover
Assemble cramp on the T-
stud at the right of back
stay.
Install the protruding part of
cable strap of electrical
wire harmess Ass’y on the
hole of box bracket 1.
Install crap on the hols of
stay 1.
Penetrate thermo unit lead
through the rear of hose 3.
Install the protruding part of
cable strap of electrical
wire harmess Ass’y on the
hole of down tube 1.
F Fix connector cover on the
head light stay.
G Install the protruding part of
cable strap of electrical
wire harmess Ass’y on the
hole of fuel tank bracket 2.
H Connect AC magnet lead
on the cramp of fan case
1.
D-D
6
E-E
F-F G-G
2-29
