STEERING HEAD
CHAS (3^3^)
EAS00682

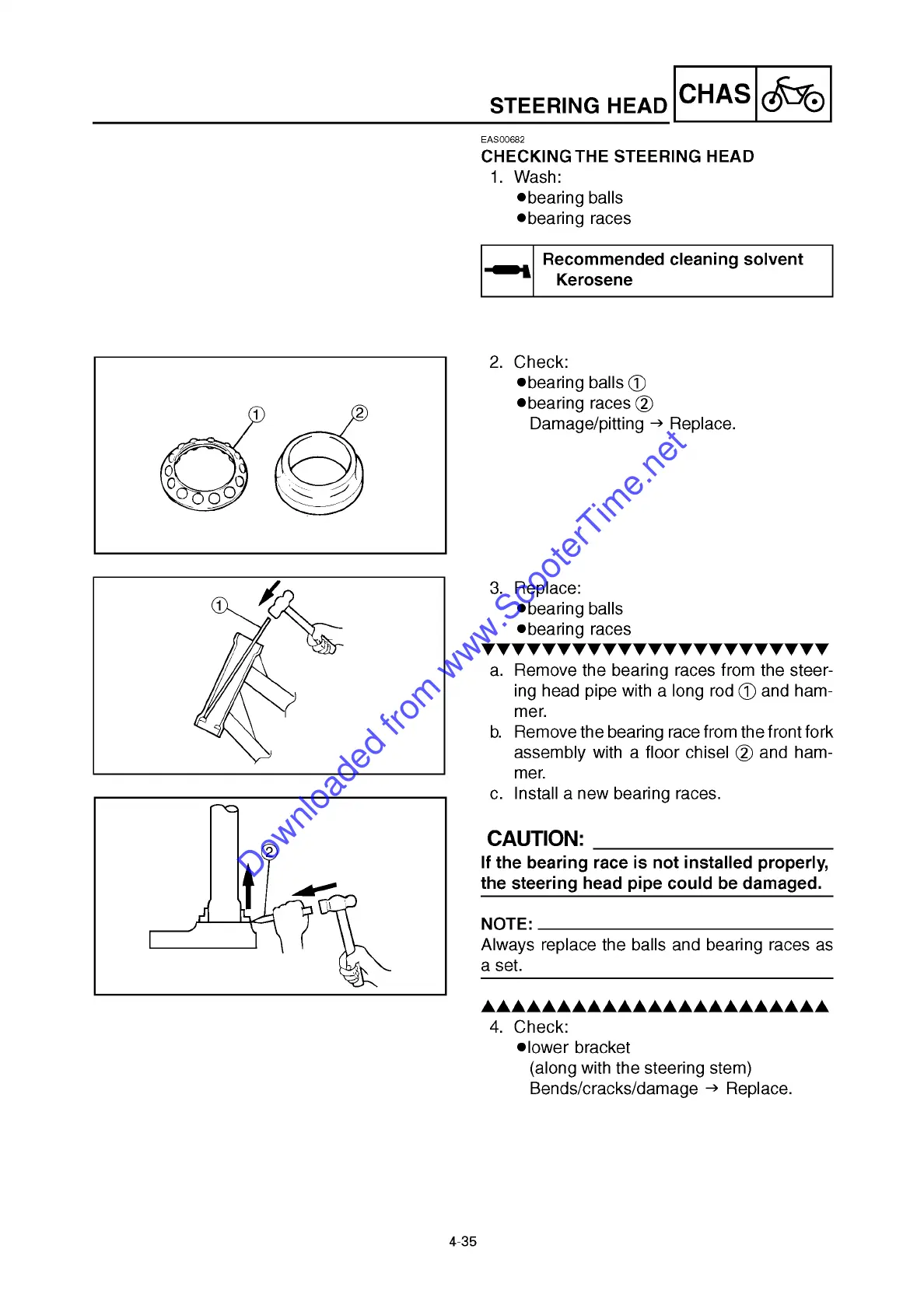

CHECKING THE STEERING HEAD
1. Wash:
8bearing balls
8bearing races
Recommended cleaning solvent
Kerosene
2. Check:
8bearing balls (T)
8bearing races (2)
Damage/pitting -» Replace.
3. Replace:
8bearing balls
8bearing races
•••••••••••••••••••••••
a. Remove the bearing races from the steer-
ing head pipe with a long rod 1 and ham-
mer.
b. Remove the bearing race from the front fork
assembly with a floor chisel 2 and ham-
mer.
c. Install a new bearing races.
cC
If the bearing race is not installed properly,
the steering head pipe could be damaged.
NOTE:
Always replace the balls and bearing races as
a set.
•••••••••••••••••••••••
4. Check:
8lower bracket
(along with the steering stem)
Bends/cracks/damage -» Replace.
