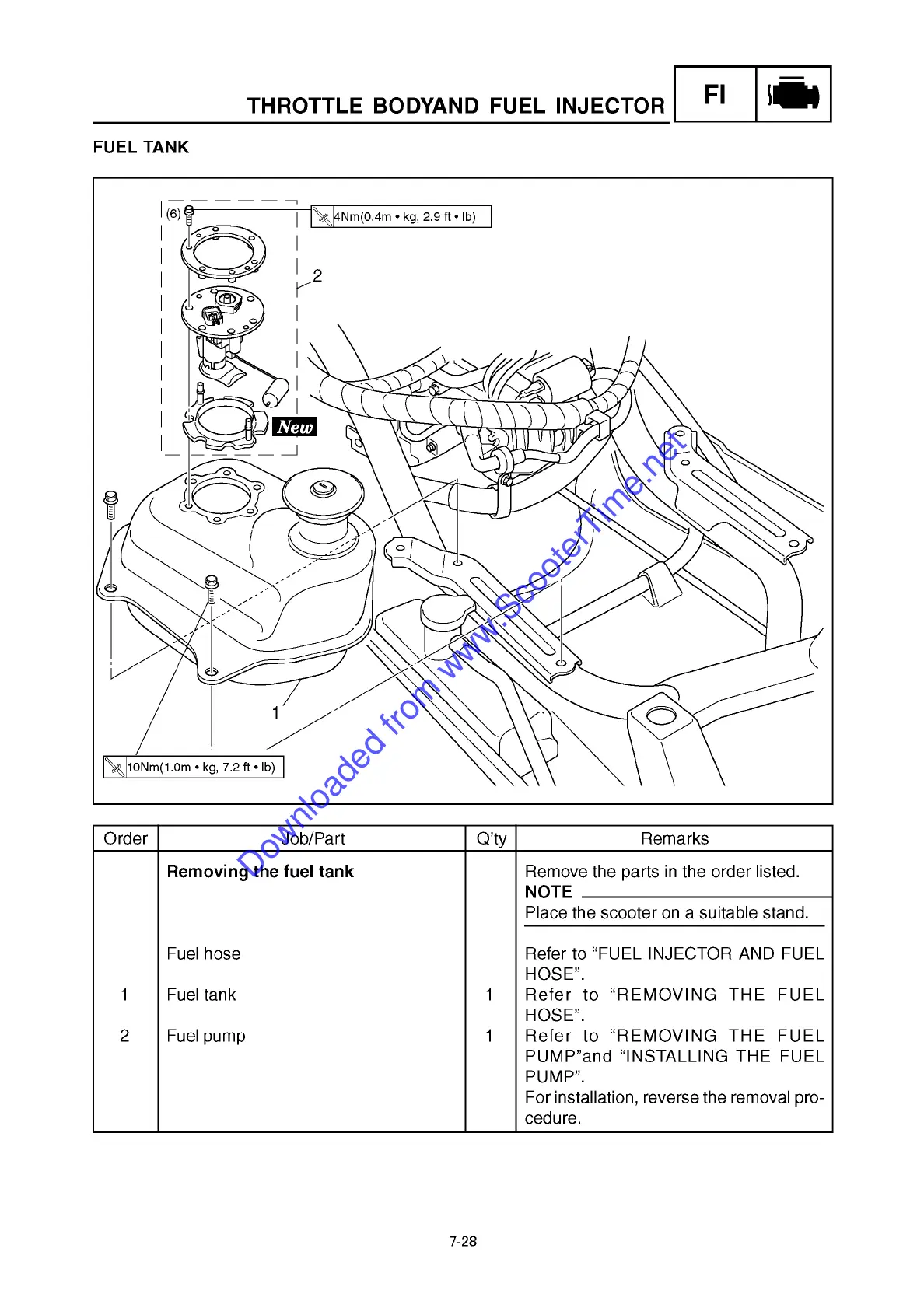

THROTTLE BODYAND FUEL INJECTOR
FI ifl
FUEL TANK
«&
4Nm(0.4m • kg, 2.9 ft • lb)
Order Job/Part
Q’ty
Remarks
Removing the fuel tank Remove the parts in the order listed.
Place the scooter on a suitable stand.
Fuel hose Refer to “FUEL INJECTOR AND FUEL
HOSE”.
1 Fuel tank 1 Refer to “REMOVING THE FUEL
HOSE”.
2 Fuel pump 1 Refer to “REMOVING THE FUEL
PUMP”and “INSTALLING THE FUEL
PUMP”.
For
installation,
reverse the removal pro-
cedure.
7-28
