Yamaha XF50W - Air Cut-Off Valve and Air Filter Case

AIR INDUCTION SYSTEM
FI ifl

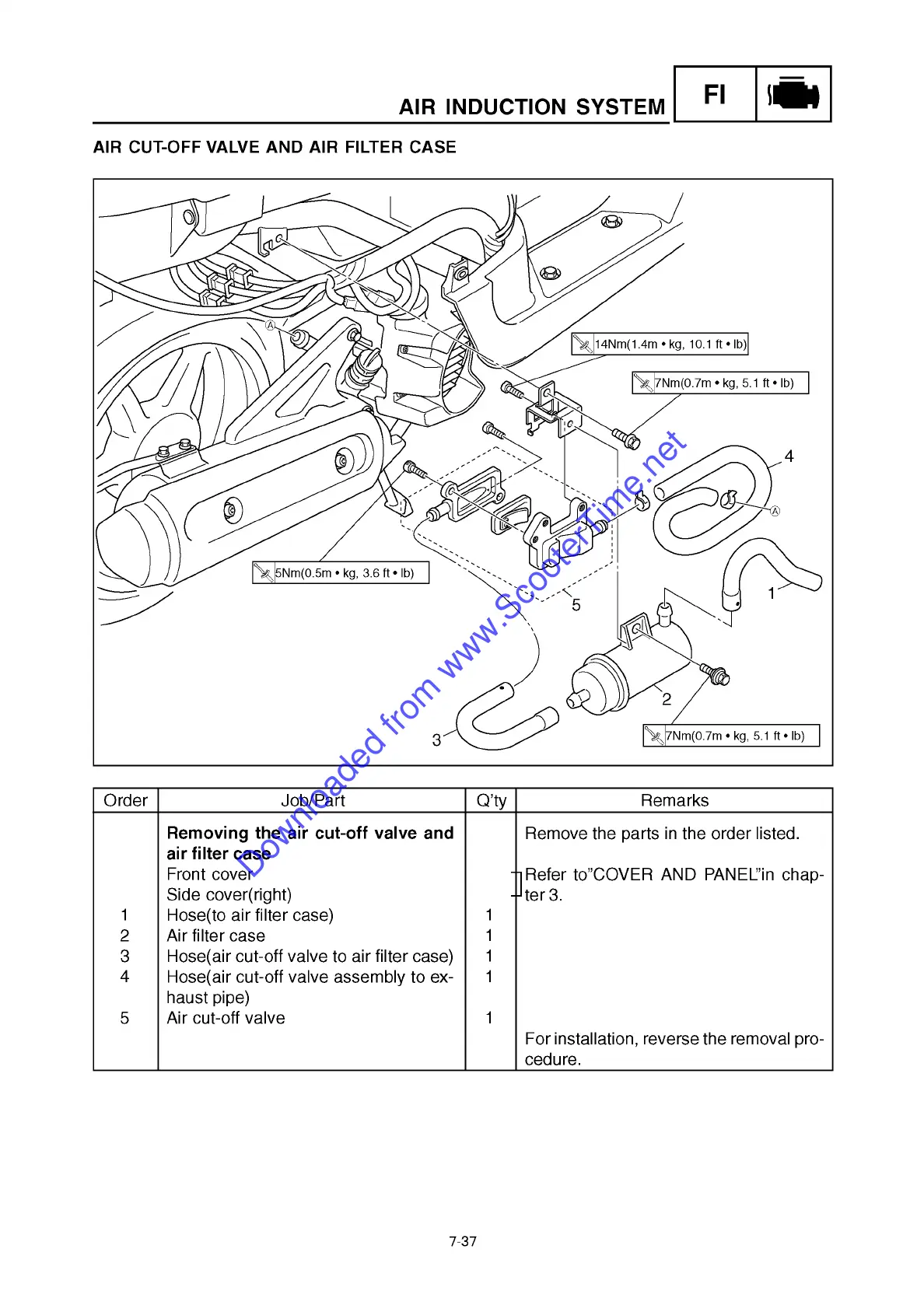

AIR CUT-OFF VALVE AND AIR FILTER CASE
PV 7Nm(0.7m • kg, 5.1 ft • lb)
3R 7Nm(0.7m • kg, 5.1 ft • lb)
Order Job/Part
Q’ty
Remarks
Removing the air cut-off valve and
air filter case
Remove the parts in the order listed.
Front cover
Refer to”COVER AND PANEL”in chap-
ter 3.
Side cover(right)
Refer to”COVER AND PANEL”in chap-
ter 3.
1 Hose(to air filter case) 1
2 Air filter case 1
3 Hose(air cut-off valve to air filter case) 1
4 Hose(air cut-off valve assembly to ex-
haust pipe)
1
5 Air cut-off valve 1
For installation, reverse the removal pro-
cedure.
7-37
