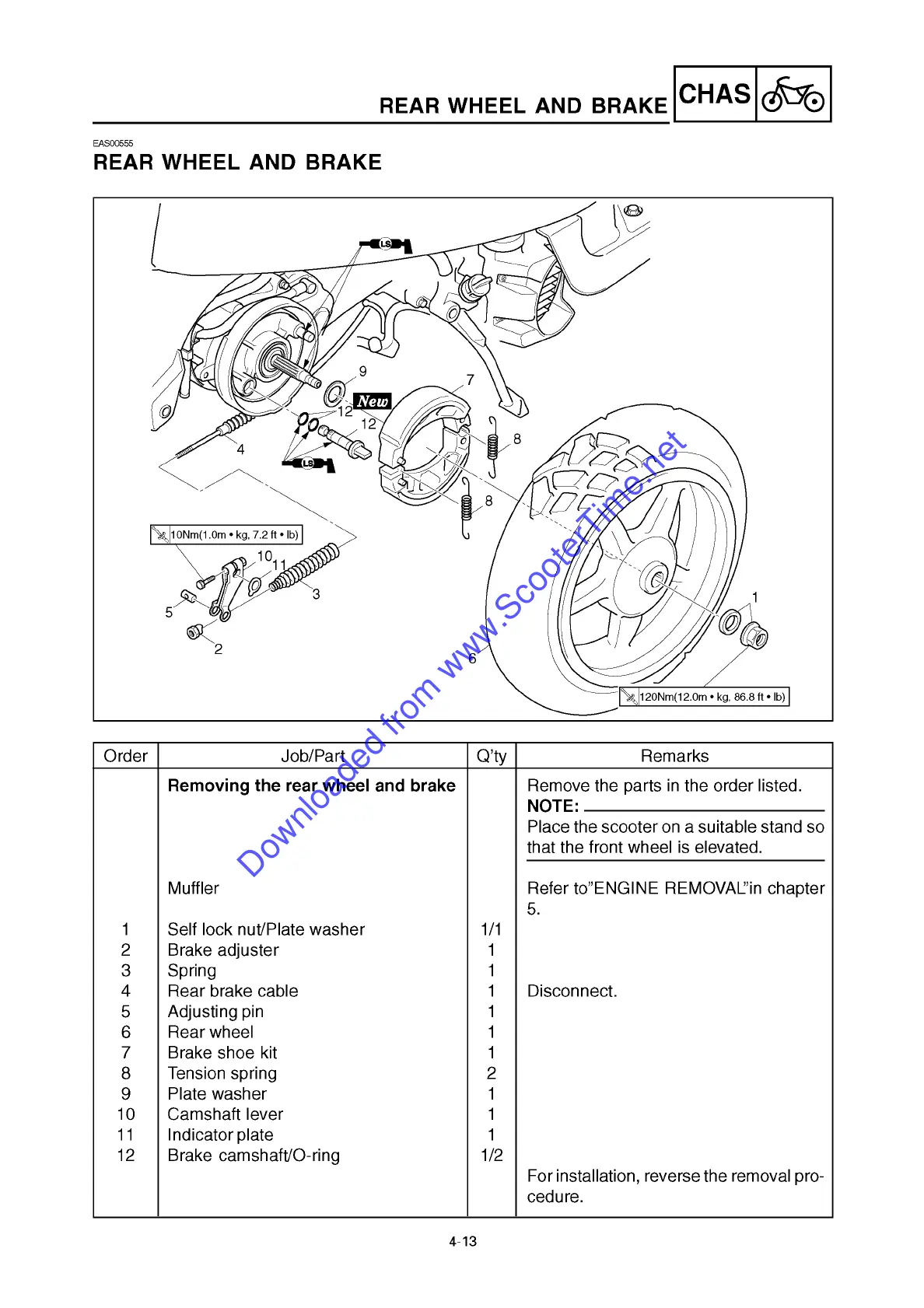

REAR WHEEL AND BRAKE
CHAS (3^3^)
EAS00555
REAR WHEEL AND BRAKE
Order Job/Part
Q’ty
Remarks
Removing the rear wheel and brake
Muffler
1 Self lock nut/Plate washer
2 Brake adjuster
3 Spring
4 Rear brake cable
5 Adjusting pin
6 Rear wheel
7 Brake shoe kit
8 Tension spring
9 Plate washer
10 Camshaft lever
11 Indicator plate
12 Brake camshaft/O-ring
1/1
1
1
1
1
1
1
2
1
1
1
1/2
Remove the parts in the order listed.
NOTE:
Place the scooter on a suitable stand so
that the front wheel is elevated.
Refer to”ENGINE REMOVAL”in chapter
5.
Disconnect.
For
installation,
reverse the removal pro-
cedure.
