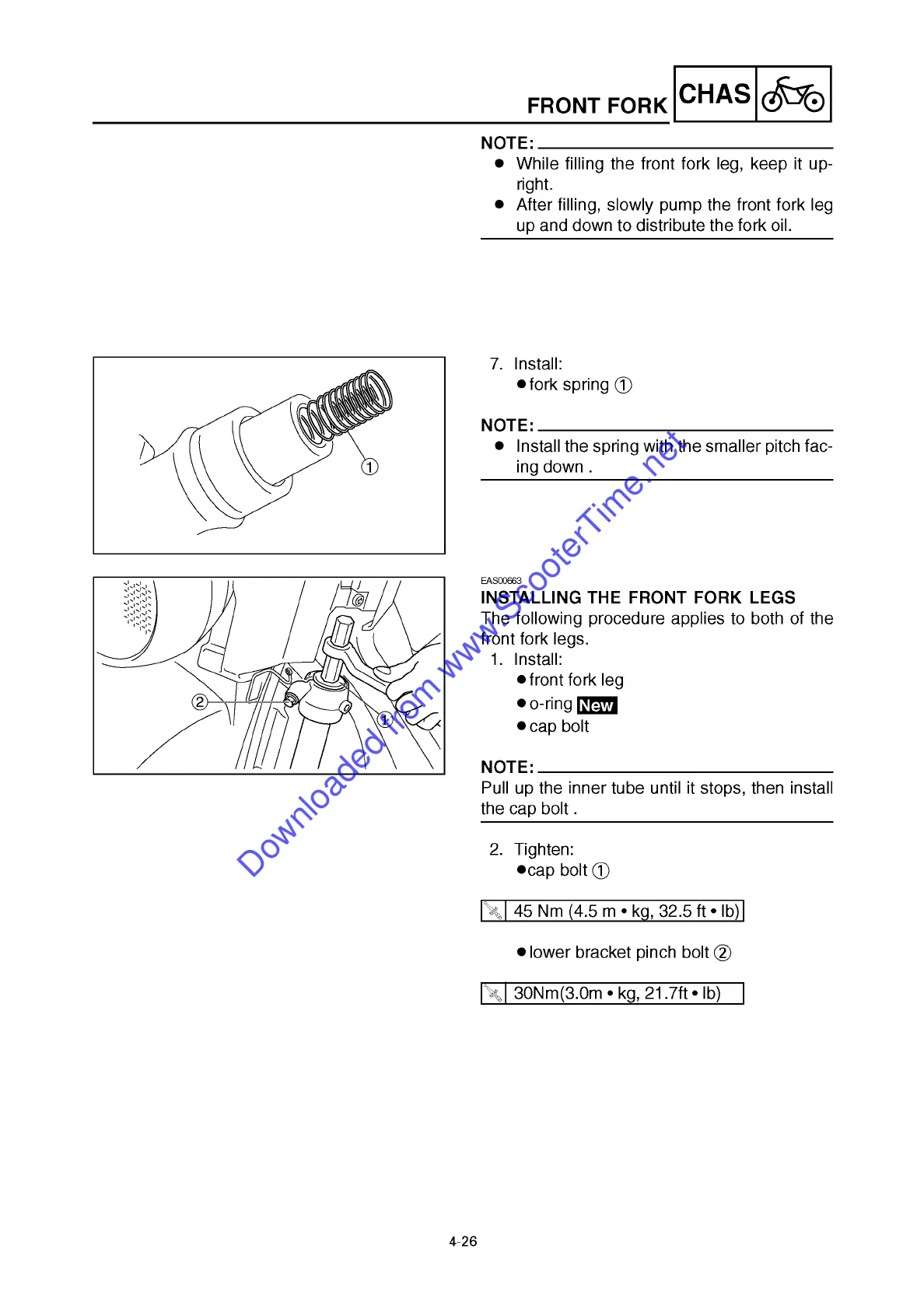

Yamaha XF50W - Installing the Front Fork Legs

FRONT FORK
CHAS (3^3^)
NOTE:
8 While filling the front fork leg, keep it up-
right.
8 After filling, slowly pump the front fork leg
up and down to distribute the fork oil.
7. Install:
8fork spring 1
NOTE:
8 Install the spring with the smaller pitch fac-
ing down .
EAS00663
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
• front fork leg
• o-ring New
• cap bolt
NOTE:
Pull up the inner tube until it stops, then install
the cap bolt .
2. Tighten:
•cap bolt (T)
X| 45 Nm (4.5 m * kg, 32.5 ft * lb)
• lower bracket pinch bolt (2)
X| 30Nm(3.0m * kg, 21.7ft * lb)
4-26
