Yamaha XF50W - Footrest Board and Inner Fender

COVER AND PANEL
CHK
ADJ
<&

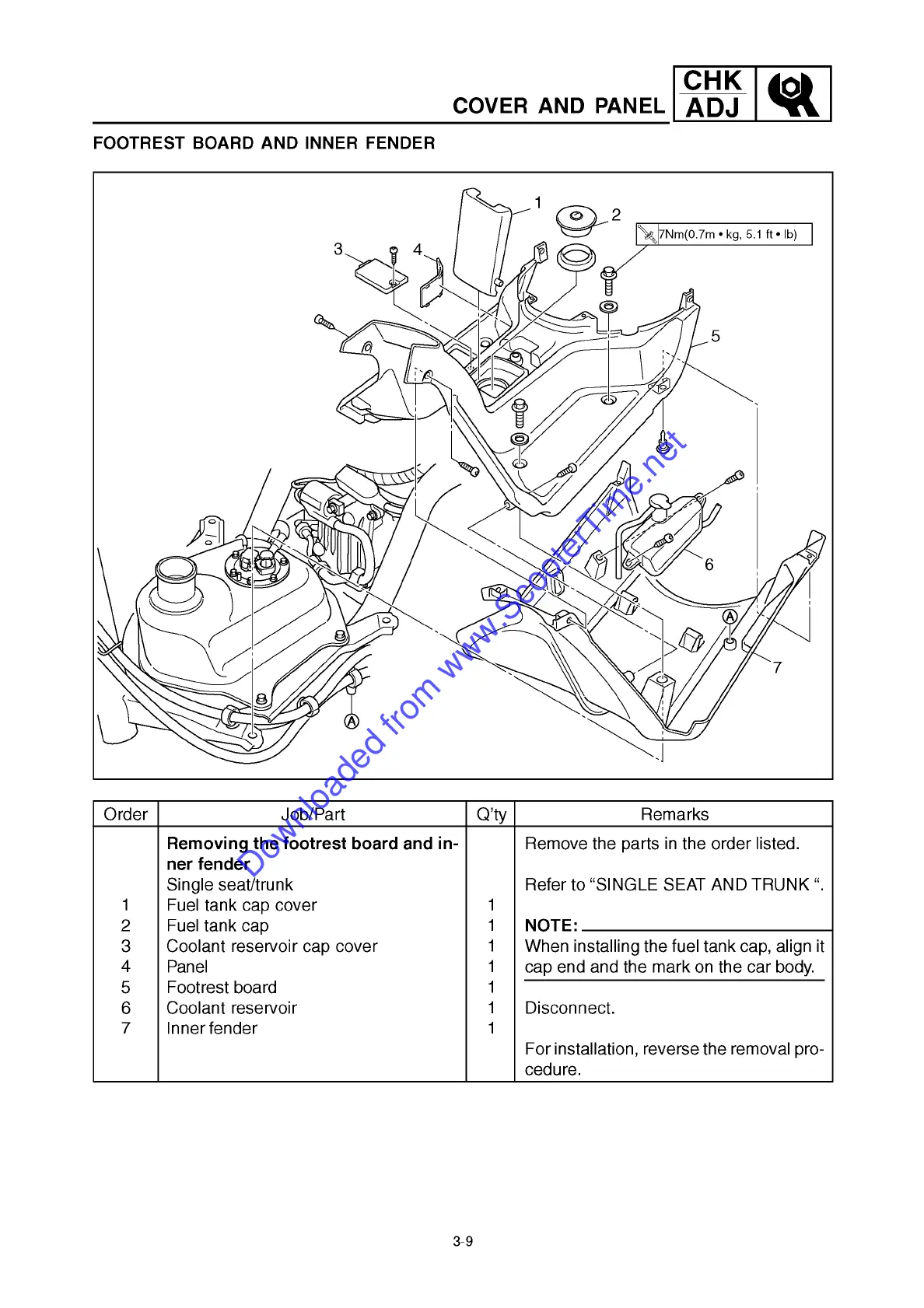

FOOTREST BOARD AND INNER FENDER
Order Job/Part
Q’ty
Remarks
1
2
3
4
5
6
7
Removing the footrest board and in-
ner fender
Single seat/trunk
Fuel tank cap cover
Fuel tank cap
Coolant reservoir cap cover
Panel
Footrest board
Coolant reservoir
Inner fender
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “SINGLE SEAT AND TRUNK “.
1
2
3
4
5
6
7
Removing the footrest board and in-
ner fender
Single seat/trunk
Fuel tank cap cover
Fuel tank cap
Coolant reservoir cap cover
Panel
Footrest board
Coolant reservoir
Inner fender
1
1
1
1
1
1
1
When installing the fuel tank cap, align it
cap end and the mark on the car body.
Disconnect.
For installation, reverse the removal pro-
cedure.
3-9
