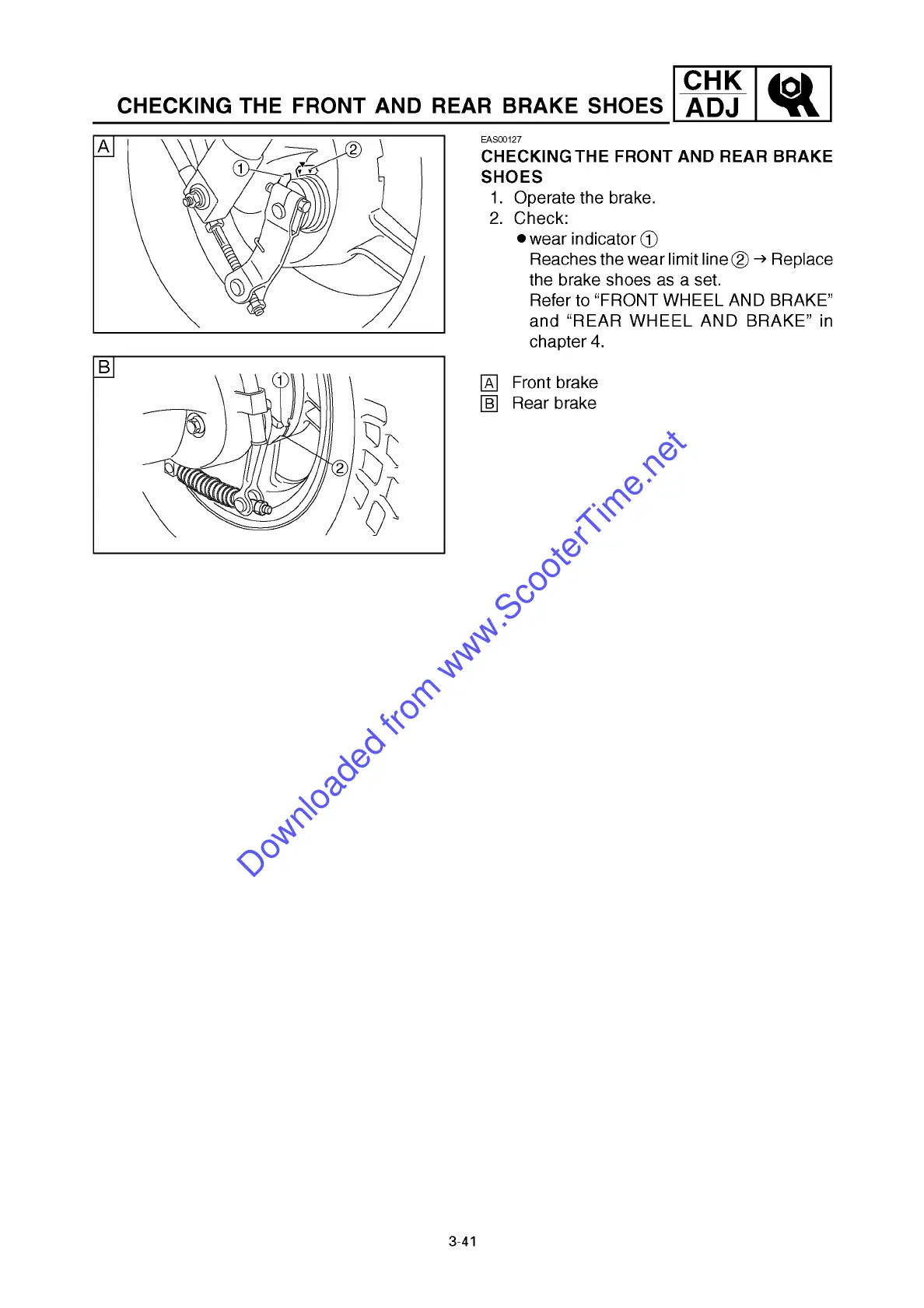

CHECKING THE FRONT AND REAR BRAKE SHOES
CHK
ADJ
<&
EAS00127
CHECKING THE FRONT AND REAR BRAKE
SHOES
1.
2.
Operate the brake.
Check:
• wear indicator (T)
Reaches the wear limit line (2) -» Replace
the brake shoes as a set.
Refer to “FRONT WHEEL AND BRAKE”
and “REAR WHEEL AND BRAKE” in
chapter 4.
A Front brake
B Rear brake
3-41
