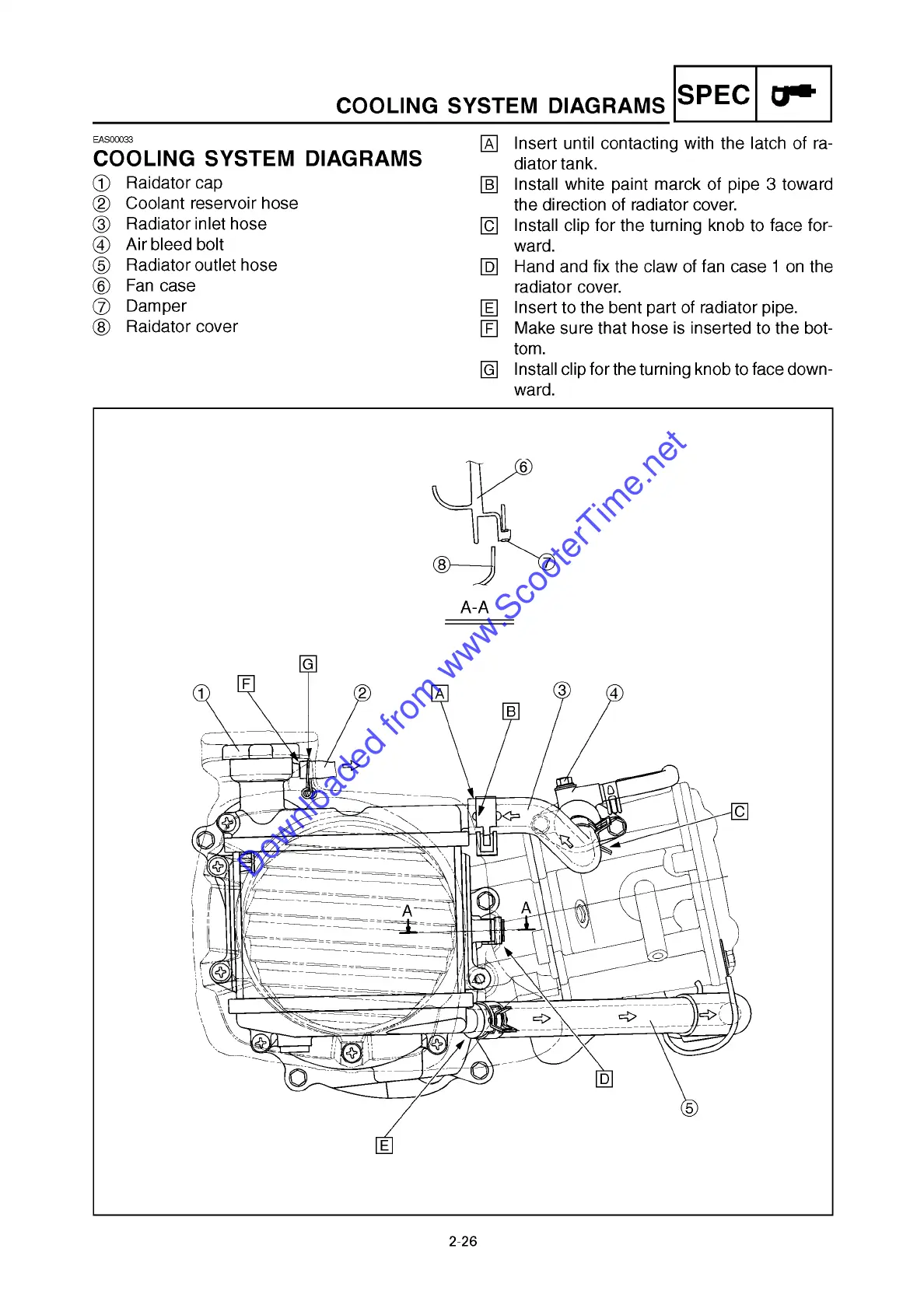

COOLING SYSTEM DIAGRAMS
SPEC 0*
EAS00033
A Insert until contacting with the latch of ra-
COOLING SYSTEM DIAGRAMS
diator tank.
1 Raidator cap
B Install white paint marck of pipe 3 toward
2 Coolant reservoir hose
the direction of radiator cover.
3 Radiator inlet hose
C Install clip for the turning knob to face for-
4 Air bleed bolt
ward.
5 Radiator outlet hose
D Hand and fix the claw of fan case 1 on the
6 Fan case
radiator cover.
7 Damper
E Insert to the bent part of radiator pipe.
8 Raidator cover
F Make sure that hose is inserted to the bot-
tom.
G Install clip for the turning knob to face down-
ward.
