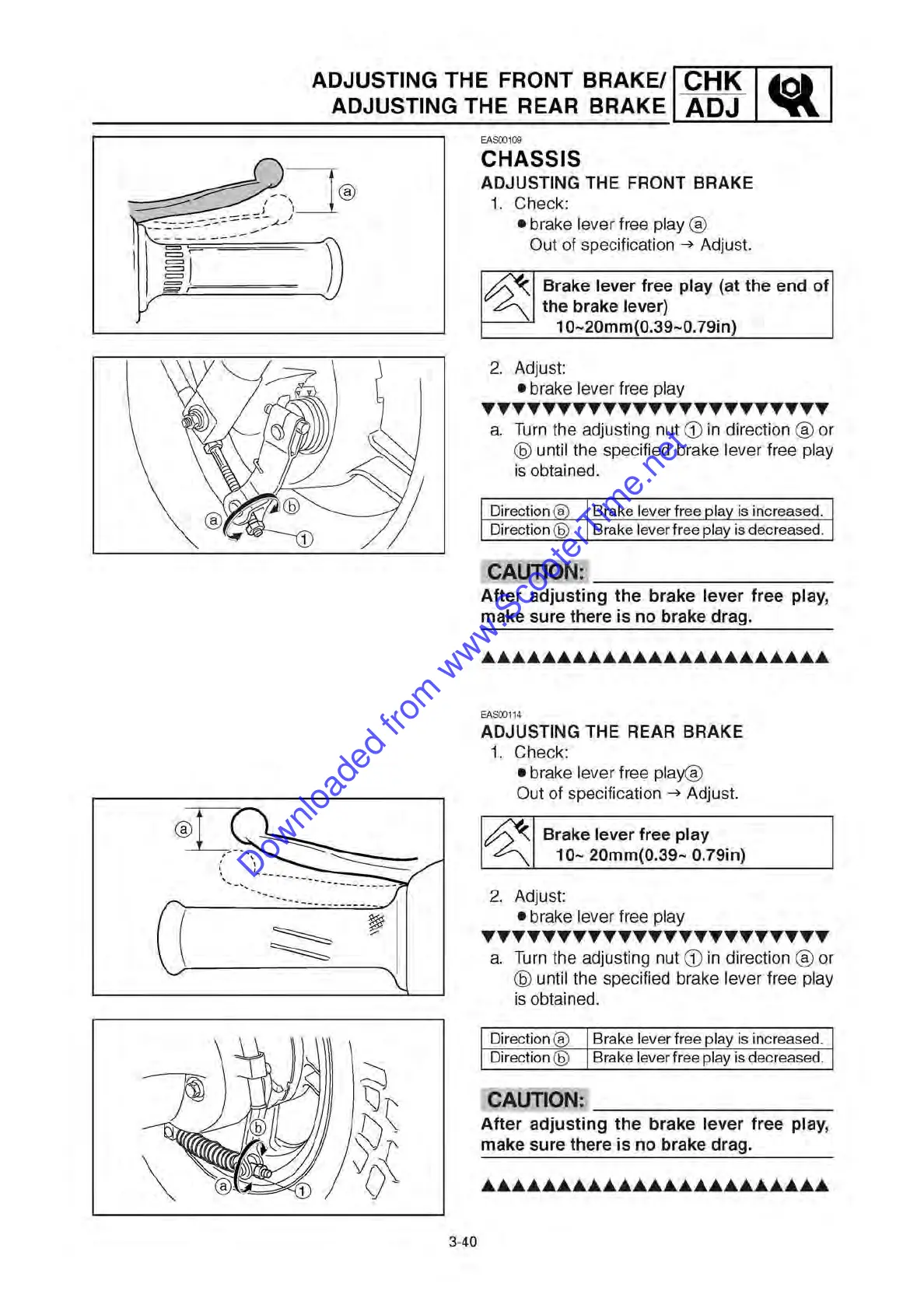

Yamaha XF50W - CHASSIS

ADJUSTING THE FRONT BRAKE/
ADJUSTING THE REAR BRAKE
CHK
ADJ
<&
EAS00109
CHASSIS
ADJUSTING THE FRONT BRAKE
1. Check:
8 brake lever free play a
Out of specification -» Adjust.
Brake lever free play (at the end of
the brake lever)
10~20mm(0.39~0.79in)
2. Adjust:
8brake lever free play
•••••••••••••••••••••••
a. Turn the adjusting nut 1 in direction a or
b until the specified brake lever free play
is obtained.
Direction a Brake lever free play is increased.
Direction b Brake lever free play is decreased.
cC
After adjusting the brake lever free play,
make sure there is no brake drag.
•••••••••••••••••••••••
EAS00114
ADJUSTING THE REAR BRAKE
1. Check:
8 brake lever free playa
Out of specification -» Adjust.
Brake lever free play
10~ 20mm(0.39~ 0.79in)
2. Adjust:
8brake lever free play
•••••••••••••••••••••••
a. Turn the adjusting nut 1 in direction a or
b until the specified brake lever free play
is obtained.
Direction a Brake lever free play is increased.
Direction b Brake lever free play is decreased.
cC
After adjusting the brake lever free play,
make sure there is no brake drag.
•••••••••••••••••••••••
