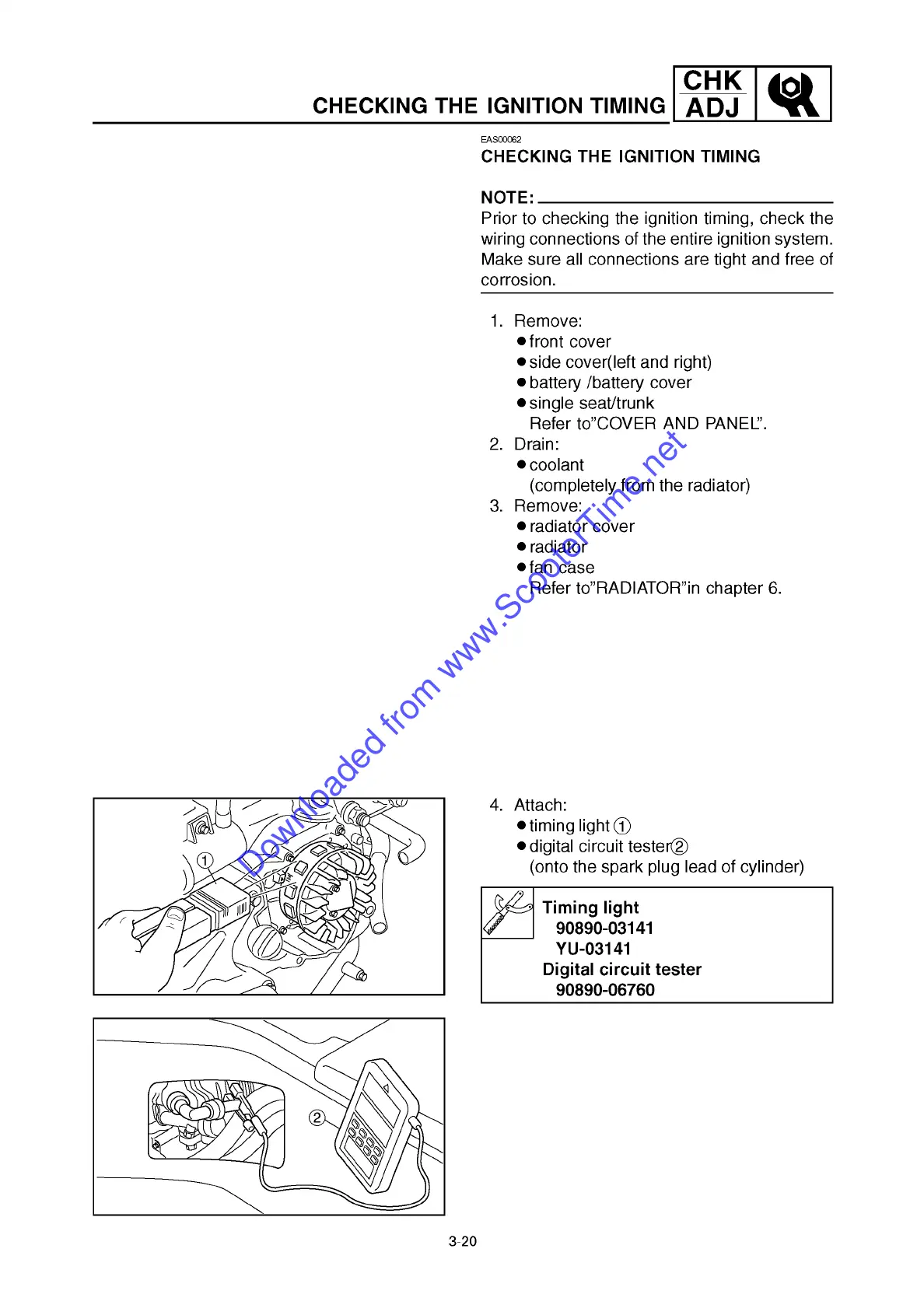

CHECKING THE IGNITION TIMING
CHK
ADJ
<&
EAS00062
CHECKING THE IGNITION TIMING
NOTE:
Prior to checking the ignition timing, check the
wiring connections of the entire ignition system.
Make sure all connections are tight and free of
corrosion.
1. Remove:
8front cover
8side cover(left and right)
8battery /battery cover
8single seat/trunk
Refer to”COVER AND PANEL”.
2. Drain:
8coolant
(completely from the radiator)
3. Remove:
8radiator cover
8radiator
8fan case
Refer to”RADIATOR”in chapter 6.
4. Attach:
8timing light 1
8digital circuit tester2
(onto the spark plug lead of cylinder)
Timing light
90890-03141
YU-03141
Digital circuit tester
90890-06760
3-20
