Yamaha XF50W - Installing the Steering Head

STEERING HEAD
CHAS (3^3^)
EAS00684

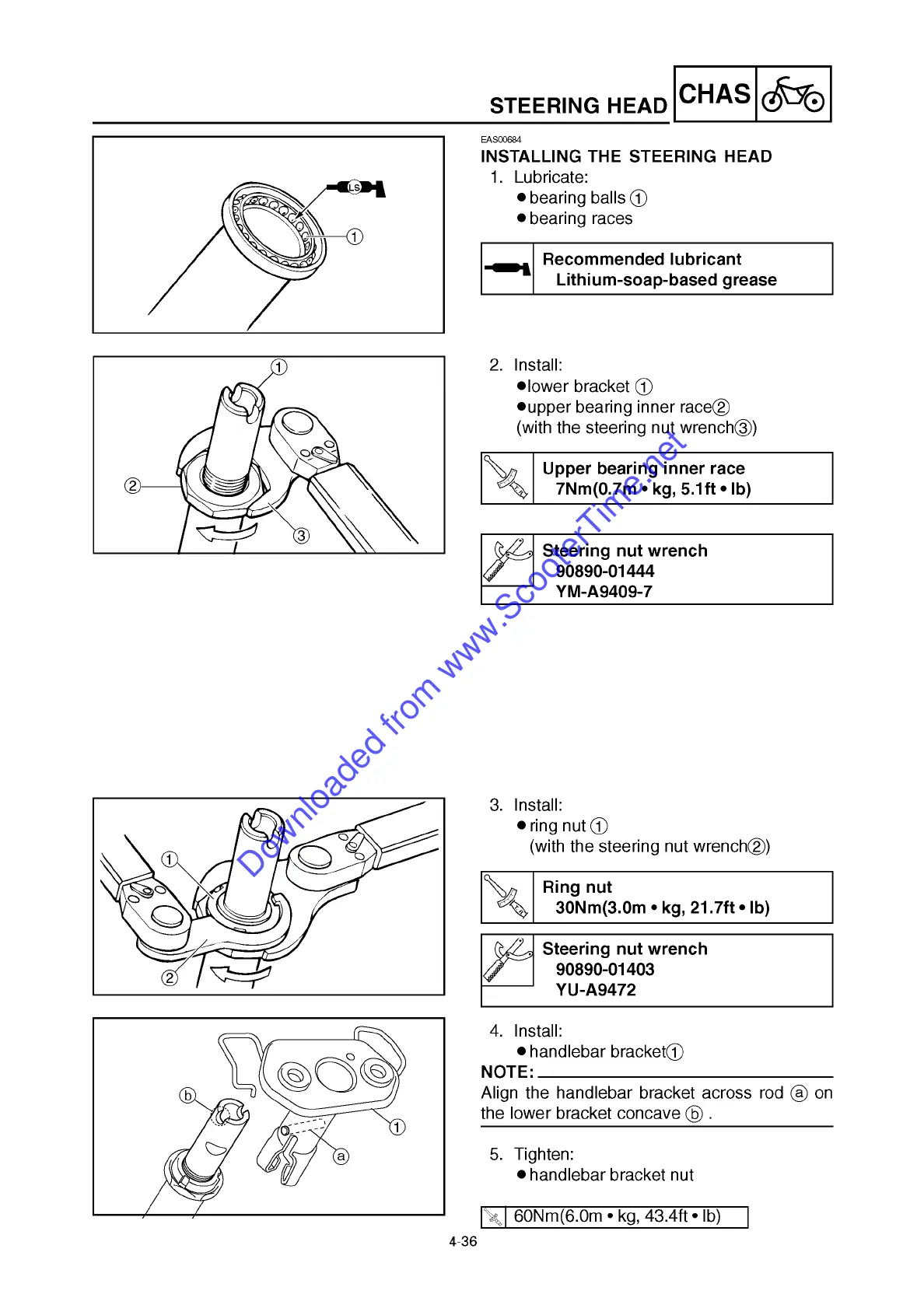

INSTALLING THE STEERING HEAD
1. Lubricate:
8bearing balls 1
8bearing races
Recommended lubricant
Lithium-soap-based grease
2. Install:
8lower bracket 1
8upper bearing inner race2
(with the steering nut wrench3)
Upper bearing inner race
7Nm(0.7m • kg, 5.1ft • lb)
f*
Steering nut wrench
90890-01444
YM-A9409-7
3. Install:
8ring nut 1
(with the steering nut wrench2)
V
%
Ring nut
30Nm(3.0m • kg, 21.7ft • lb)
Steering nut wrench
90890-01403
YU-A9472
4. Install:
8handlebar bracket1
NOTE:
Align the handlebar bracket across rod a on
the lower bracket concave b .
5. Tighten:
• handlebar bracket nut
\| 60Nm(6.0m * kg, 43.4ft * lb)
4-36
