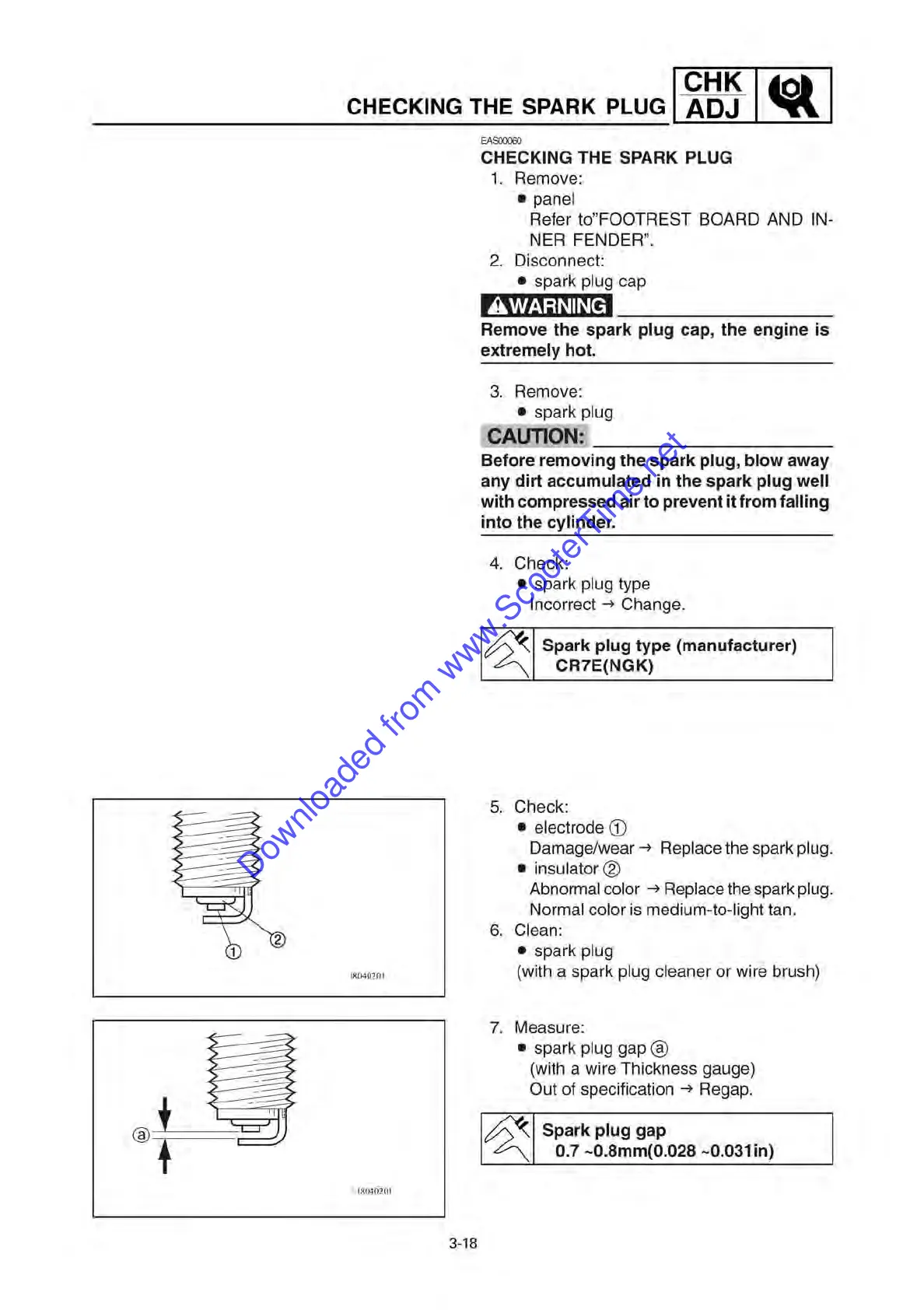

CHECKING THE SPARK PLUG
EAS00060
CHECKING THE SPARK PLUG
1.
Remove:
8 panel
Refer to”FOOTREST BOARD AND IN-
NER FENDER”.
2.
Disconnect:
8 spark plug cap
w
Remove the spark plug cap, the engine is
extremely hot.
3. Remove:
8 spark plug
cC
Before removing the spark plug, blow away
any dirt accumulated in the spark plug well
with compressed air to prevent it from falling
into the cylinder.
4.
Check:
8 spark plug type
Incorrect -* Change.
Spark plug type (manufacturer)
CR7E(NGK)
5. Check:
8 electrode ©
Damage/wear -* Replace the spark
plug.
8 insulator©
Abnormal color -* Replace the spark
plug.
Normal color is medium-to-light tan.
6. Clean:
8 spark plug
(with a spark plug cleaner or wire brush)
7. Measure:
8 spark plug gap a
(with a wire Thickness gauge)
Out of specification -* Regap.
Spark plug gap
0.7 ~0.8mm(0.028 ~0.031in)
3-18
