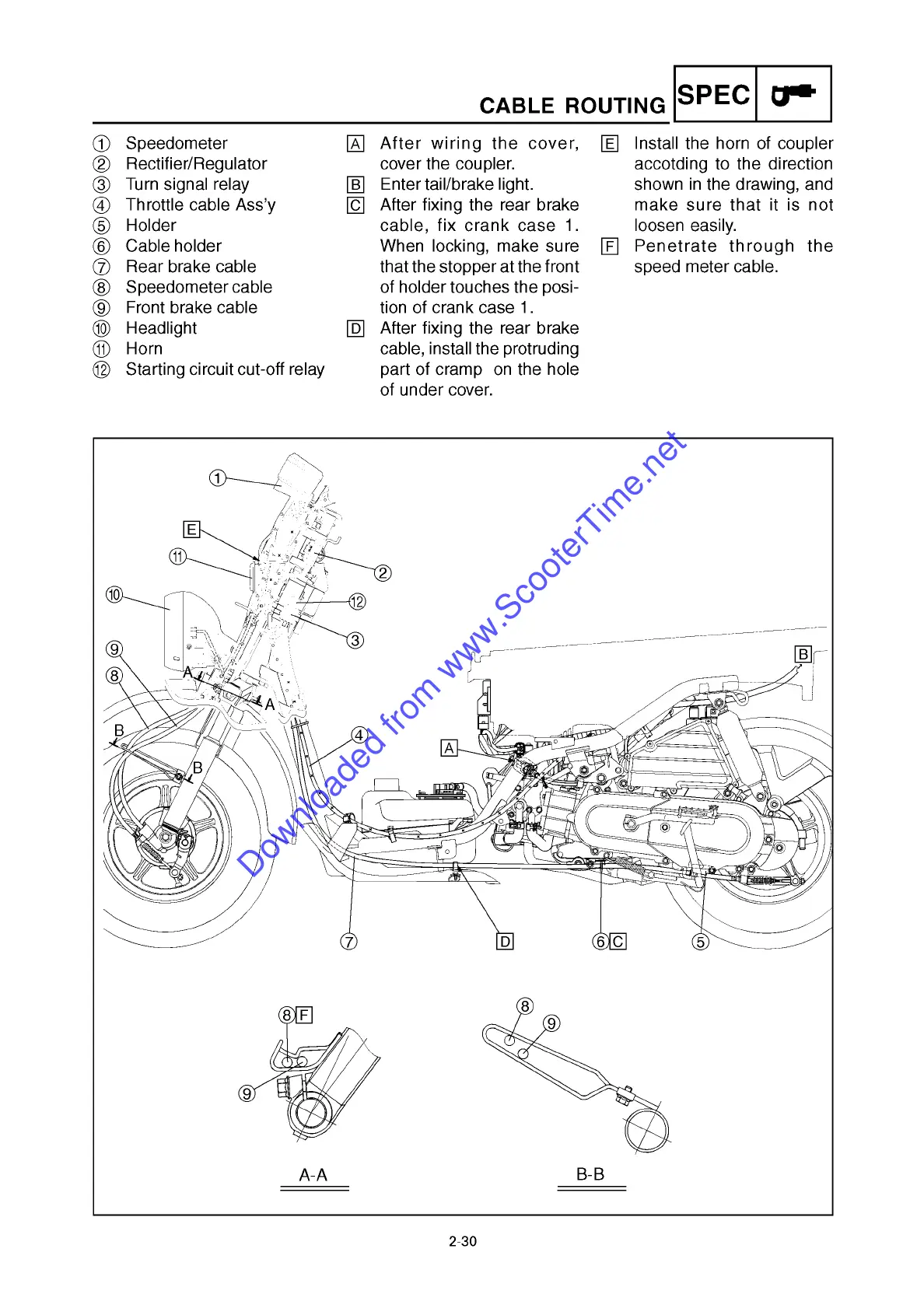

CABLE ROUTING
SPEC 0*
1 Speedometer A
2 Rectifier/Regulator
3 Turn signal relay B
4 Throttle cable Ass’y C
5 Holder
6 Cable holder
7 Rear brake cable
8 Speedometer cable
9 Front brake cable
0 Headlight D
q Horn
w Starting circuit cut-off relay
After wiring the cover,
cover the coupler.
Enter tail/brake light.
After fixing the rear brake
cable,
fix crank case 1.
When locking, make sure
that the stopper at the front
of holder touches the
posi-
tion of crank case 1.
After fixing the rear brake
cable,
install the protruding
part of cramp on the hole
of under cover.
E Install the horn of coupler
accotding to the direction
shown in the drawing, and
make sure that it is not
loosen easily.
F Penetrate through the
speed meter cable.
2-30
