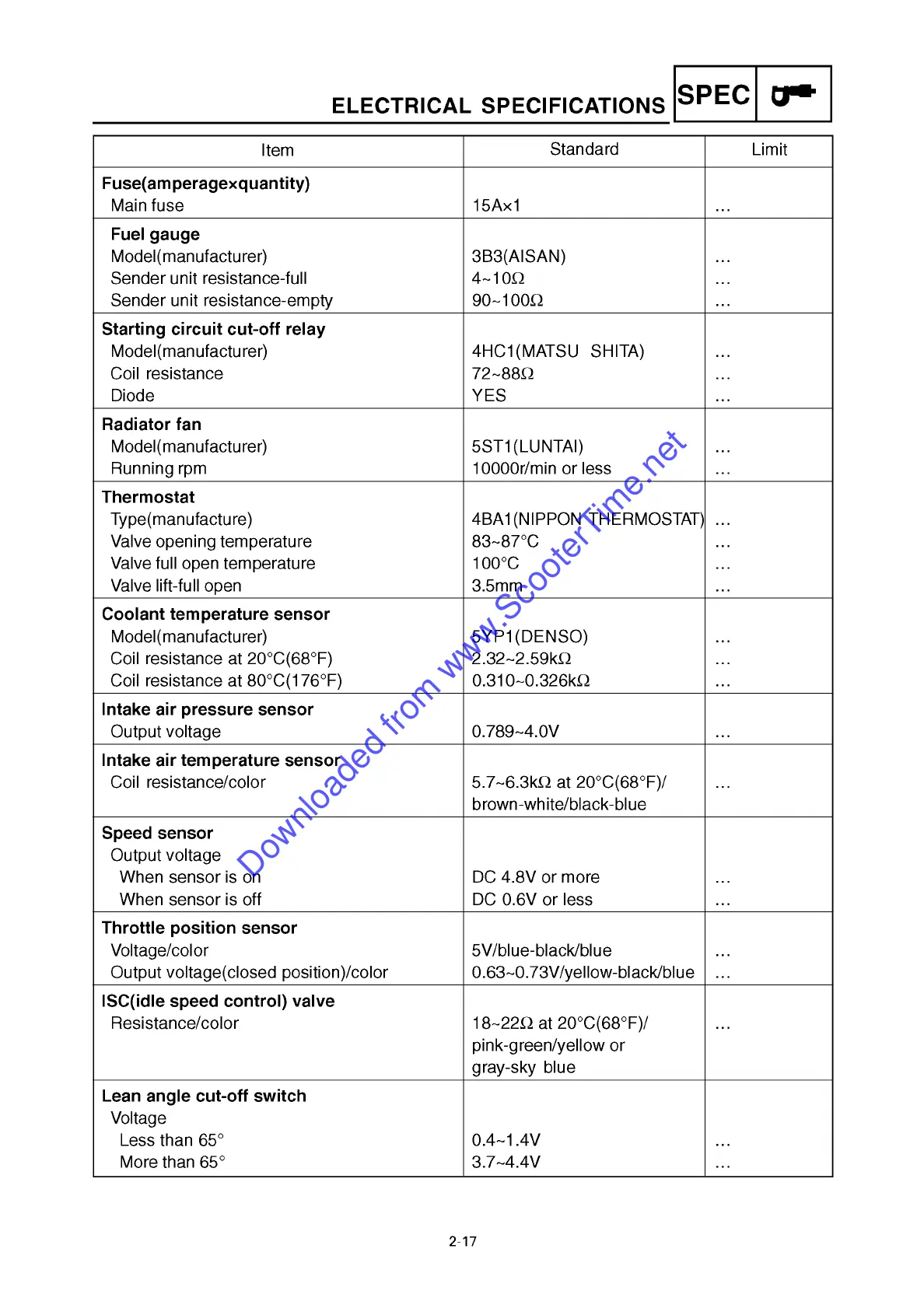

ELECTRICAL SPECIFICATIONS
SPEC 0*
Item
Standard
Limit
Fuse(amperage×quantity)
Main fuse
15A×1 …
Fuel gauge
Model(manufacturer)
Sender unit resistance-full
Sender unit resistance-empty
3B3(AISAN)
4~10Q
90~100£2
…
…
…
Starting circuit cut-off relay
Model(manufacturer)
Coil resistance
Diode
4HC1(MATSU SHITA)
72~88
YES
…
…
…
Radiator fan
Model(manufacturer)
Running rpm
5ST1(LUNTAI)
10000r/min or less
…
…
Thermostat
Type(manufacture)
Valve opening temperature
Valve full open temperature
Valve lift-full open
4BA1(NIPPON THERMOSTAT)
83~87°C
100°C
3.5mm
…
…
…
…
Coolant temperature sensor
Model(manufacturer)
Coil resistance at 20°C(68°F)
Coil resistance at 80°C(176°F)
5YP1(DENSO)
2.32~2.59k£2
0.310~0.326k£2
…
…
…
Intake air pressure sensor
Output voltage 0.789~4.0V …
Intake air temperature sensor
Coil resistance/color 5.7~6.3k at 20°C(68°F)/
brown-white/black-blue
…
Speed sensor
Output voltage
When sensor is on
When sensor is off
DC 4.8V or more
DC 0.6V or less
…
…
Throttle position sensor
Voltage/color
Output voltage(closed position)/color
5V/blue-black/blue
0.63~0.73V/yellow-black/blue
…
…
ISC(idle speed control) valve
Resistance/color 18~22 at 20°C(68°F)/
pink-green/yellow or
gray-sky blue
…
Lean angle cut-off switch
Voltage
Less than 65°
More than 65°
0.4~1.4V
3.7~4.4V
…
…
2-17
