Single-Phase 200 V Class
NNN LLL
E
N
L
PE
A
B
C
D
E
D
F
A
H
G
D
J
H
I
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface (remove any paint
or sealant)
E – Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Max. distance between drive and noise
filter
J – EMC noise filter

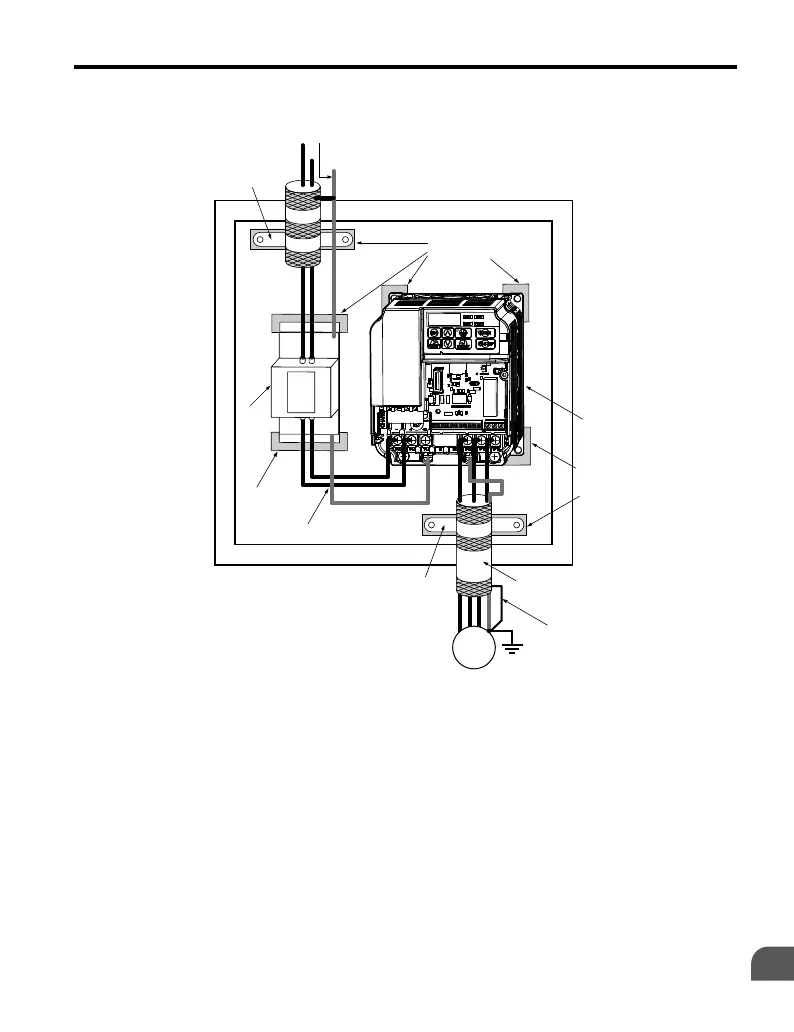

Figure C.5 EMC Filter and Drive Installation for CE Compliance (Single-Phase 200 V
Class)
n
EMC Filters
The drive should be installed with the EMC filters listed below in order to comply with the
EN 61800-3, category C1 requirements.
