3.2 Operating Procedures for Utility Functions
3.2.22 Display Servomotor ID from Feedback Option Module (Fn01F)
3-56
Preparations
No preparations are required.

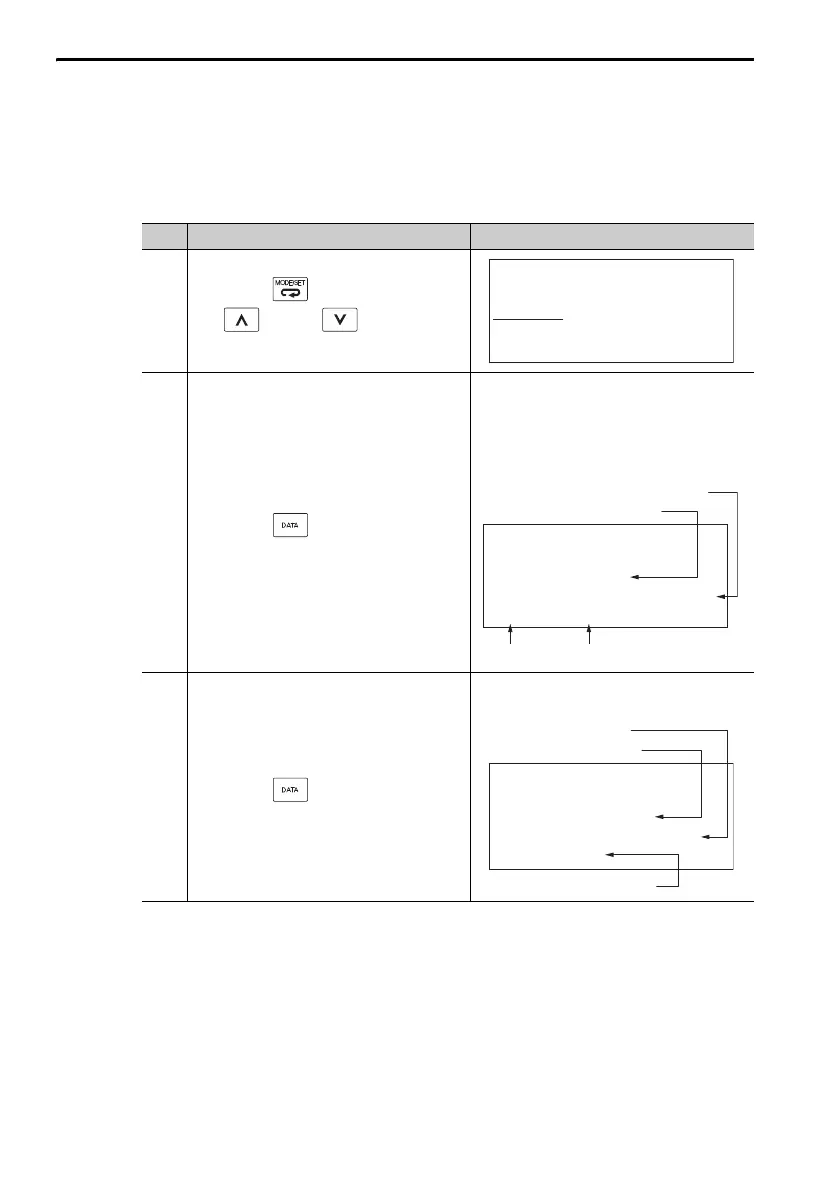

Operating Procedure
Step Operation Result
1
Press the Key, and then use
the Key or Key to select
Fn01F.
2
Press the Key.
The Fn01F (Display Servomotor ID
from Feedback Option Module) exe-
cution display will appear. The Ser-
vomotor ID information will be
displayed first.
*1 *2 *3
3
Press the Key.
The encoder ID information will be
displayed.
*3
Continued on next page.
1:BB FUNCTION
Fn01E:S vMotOp ID
Fn01F:FBOpMot ID
Fn020:S - Orig S et
Fn03 0:S oft Res et
Serial number
Servomotor model
Voltage Capacity
200V, 400W
R10419-511-DK5000
S GM-04A3 12
1:BB FBOpMtID
Motor
Encoder type/resolution
Encoder model
Serial number
Encoder
1 3 bit-INC
C13 6-1336D00200
UTS TH-U13 DB
1:BB FBOpMtID
To Next Page
