YASKAWA E-7 Series User Manual

3.2 Operating Procedures for Utility Functions
3.2.2 Jog (Fn002)
3-11
3
Utility Functions
Operating Procedure
The following procedure shows how to jog the motor at a jogging speed
of 1,000 min
-1
. (The default setting is 500 min
-1
.)

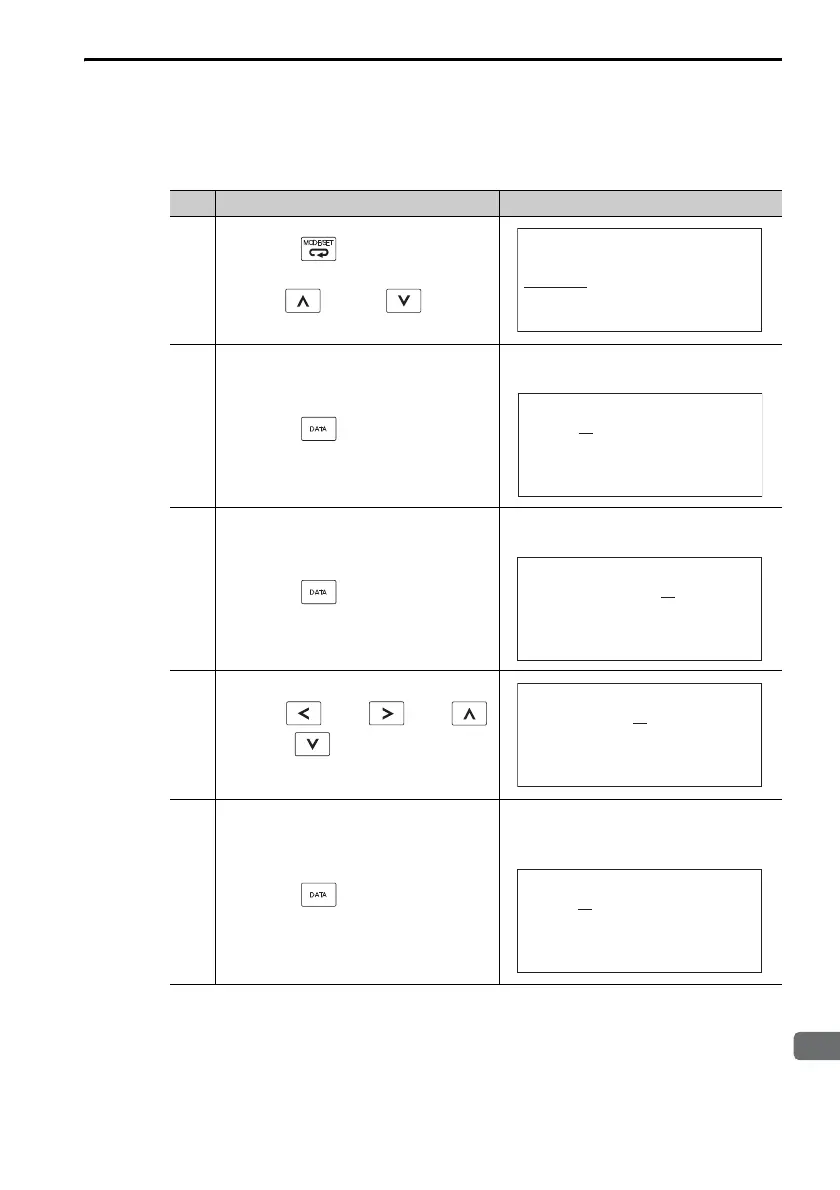

Step Operation Result
1
Press the Key to display the
Utility Mode Main Menu, and then
use the Key or Key to
select Fn002.
2
Press the Key.
The Fn002 (Jog) execution display
will appear.
3
Press the Key.
The cursor will move to the setting
for Pn304 (Jogging Speed).
4
Use the Key, Key,
Key, and Key to set Pn304
(Jogging Speed) to 1,000.
5
Press the Key.
The setting will be saved and the
cursor will move to the parameter
number.
Continued on next page.
1:BB
FUNCTION
Fn000:Alm His tory
Fn002:JOG
Fn003 :Z-S earch
Fn004:Program JOG
1:BB JOG
Pn3 04=00500
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
1:BB JOG
Pn3 04=00500
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
1:BB JOG
Pn3 04=01000
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
1:BB JOG
Pn3 04=01000
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
