3.2 Operating Procedures for Utility Functions
3.2.4 Jog Program (Fn004)
3-17
Note: When you check the parameter settings in step 3, you can change any of the set-
tings.
5
Press the Key (forward move-
ment start) or Key (reverse
movement start) according to the
initial direction of the operation pat-
tern.
Operation will start after the waiting
time that is set in Pn535.
Note: If you press the Key again,
base block status will be entered
and the motor will stop even
during operation.
When the set program jogging
operation has been completed, the
status display will change to 1:END
for approximately one second.
It will then return to RUN.
6
Press the Key.
Base block status is entered and
the display will return to the Utility
Mode Main Menu.
7
Turn the SERVOPACK power sup-
ply OFF and ON again.
–
Continued from previous page.

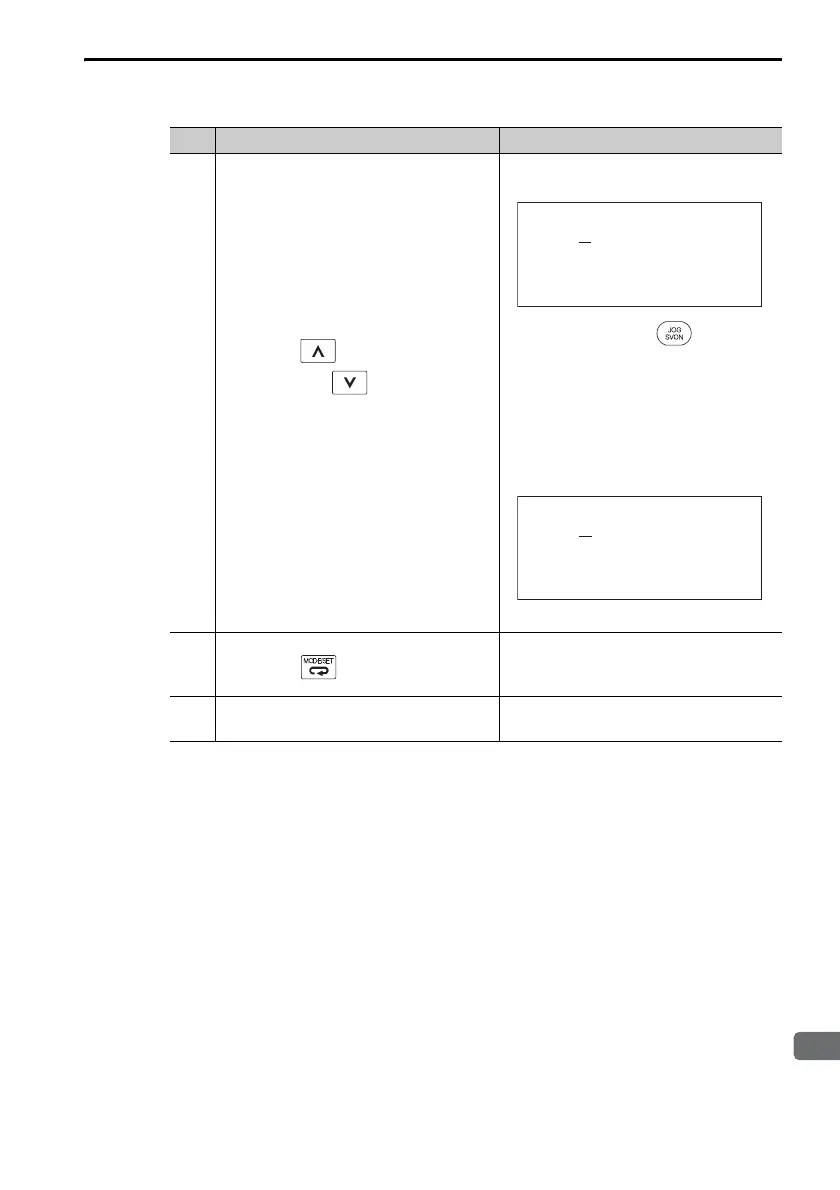

Step Operation Result
1:RUN PRG JOG
Pn53 1=0003 2768
Pn533=00500
Pn53 4=00100
Pn53 6=00010
Pn53 6=00010
1:END PRG JOG
Pn53 1=0003 2768
Pn533=00500
Pn53 4=00100
To Next Page
