2.7 H: Terminal Functions
184 YASKAWA ELECTRIC TOEP C710687 03B FSDrive-MV1000 Parameter Guide
Setting 3: User-Set Speed Agree 1 (f
ref
/f
set
Agree 1)
Closes when the actual output frequency or motor speed (CLV) and the frequency reference are within the speed agree
width (L4-02) of the programmed speed agree level (L4-01).
Note: Frequency detection works in both forward and reverse. The value of L4-01 is used as the detection level for both directions.

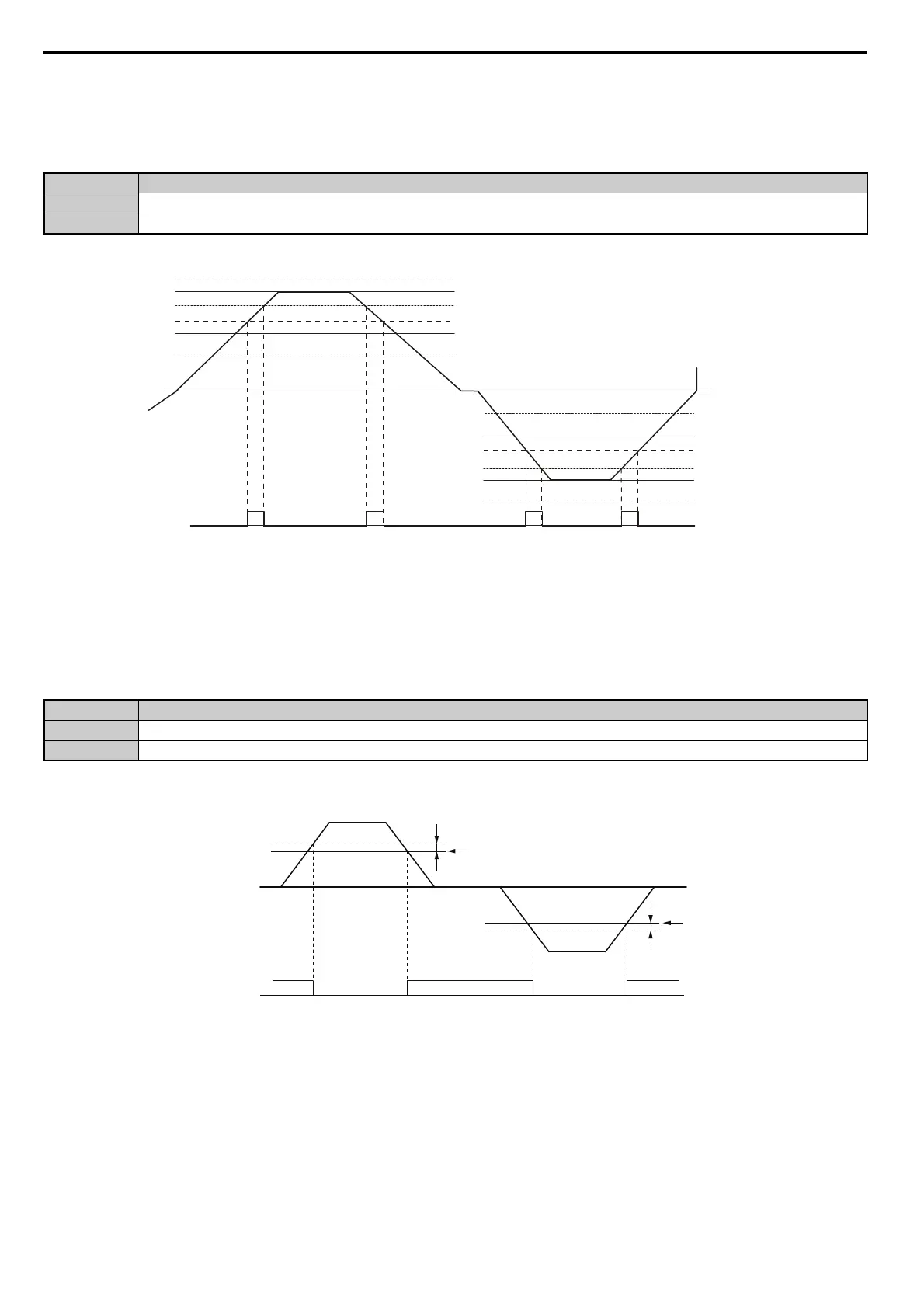

Figure 2. 54
Figure 2.54 User Set Speed Agree 1 Time Chart
Refer to L4-01, L4-02: Speed Agreement Detection Level and Detection Width on page 210 for more instructions.
Setting 4: Frequency Detection 1
Output opens when the output frequency or motor speed (CLV) rises above the detection level set in L4-01 plus the
detection width set in L4-02. The terminal remains open until the output frequency or motor speed falls below the level
set in L4-01.
Note: Frequency detection works in both forward and reverse. The value of L4-01 is used as the detection level for both directions.
Figure 2. 55
Figure 2.55 Frequency Detection 1 Time Chart
Refer to L4-01, L4-02: Speed Agreement Detection Level and Detection Width on page 210 for more details.
Status Description
Open The output frequency is outside the range “L4-01 ± L4-02” or outside the range “frequency reference ±L4-02”.
Closed The output frequency is within the range “L4-01 ± L4-02” and also within the range “frequency reference ±L4-02”.
Status Description
Open Output frequency or motor speed exceeded L4-01 + L4-02.
Closed Output frequency or motor speed is below L4-01 or has not exceeded L4-01 + L4-02.
Frequency reference
Frequency reference+ L4-02
Frequency reference– L4-02
L4-01
L4-01+ L4-02
L4-01– L4-02
Frequency reference
Frequency reference+ L4-02
Frequency reference– L4-02
–L4-01
–L4-01+ L4-02
–L4-01– L4-02
During
Forward
During Reverse
Output frequency
0 Hz
OFF
OFF OFF
ON ON ON
ON
Output frequency
User Set
Speed Agree 1
L4-02
Frequency
detection 1
ON
OFF
L4-02
L4-01
L4-01
Output Frequency
or Motor Speed
