Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 133
Set Custom Monitors

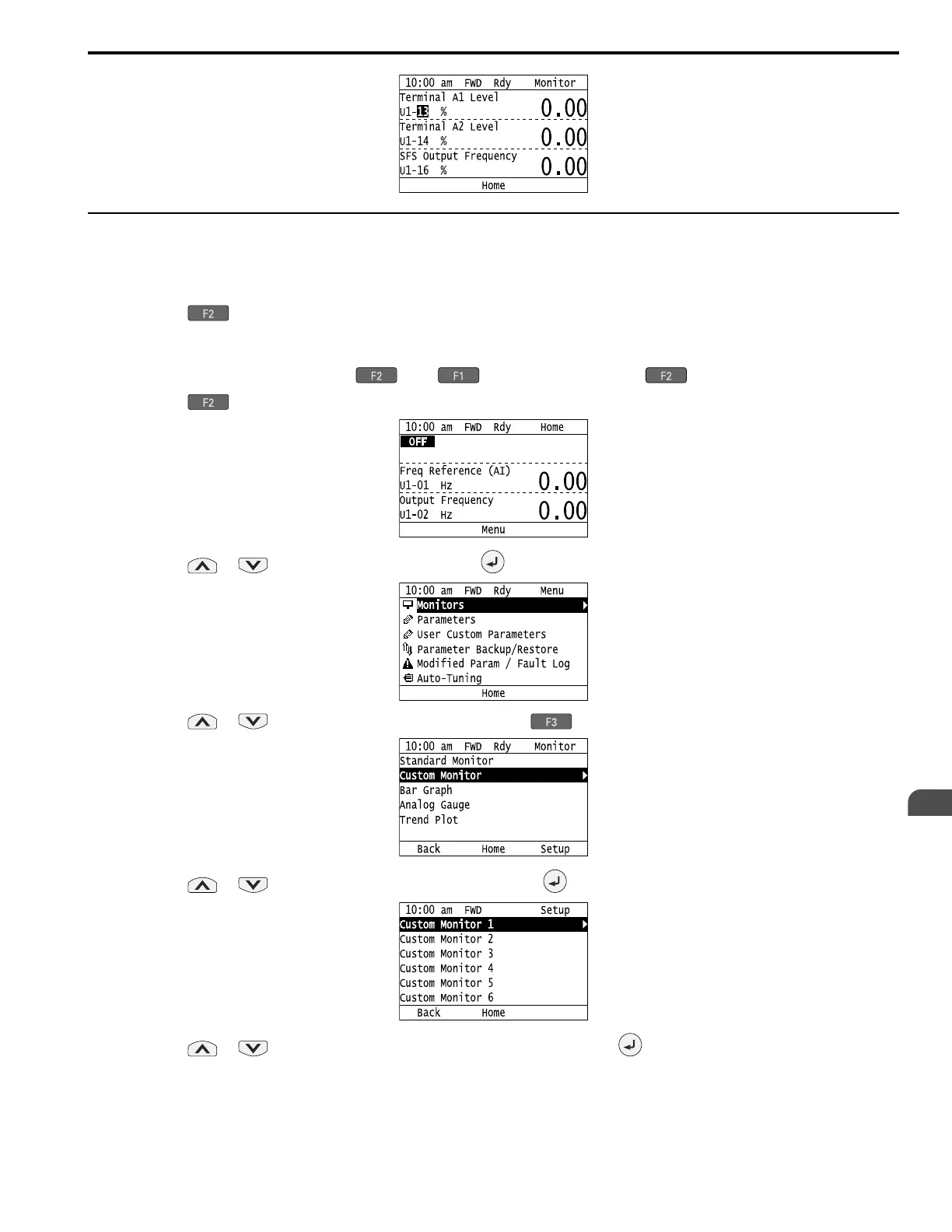

You can select and register a maximum of 12 monitoring items to regularly show on the keypad.
This procedure shows how to set the motor speed to [Custom Monitor 1].
1. Push (Home) to show the HOME screen.
Note:
The keypad will show [Home] in the top right corner when the HOME screen is active.
If the keypad does not show [Home] on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Custom Monitor], then push (Setup).
5. Push or to select [Custom Monitor 1], then push .
6. Push or to select the monitor number to register, then push .
Set the x-xx part of monitor Ux-xx. For example, to show monitor U1-05, set it to “105” as shown in this figure.
