2.7 Removing/Reattaching Covers
48 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
◆ Opening/Closing the Bypass Cover Using Procedure 2
DANGER! Electrical Shock Hazard. Do not examine, connect, or disconnect wiring on an energized bypass. Before servicing,
disconnect all power to the equipment and wait for the time specified on the warning label at a minimum. The internal capacitor
stays charged after the bypass is de-energized. The charge indicator LED extinguishes when the DC bus voltage decreases below
50 Vdc. When all indicators are OFF, remove the covers before measuring for dangerous voltages to make sure that the bypass is
safe. If you do work on the bypass when it is energized, it will cause serious injury or death from electrical shock.
1. Turn the disconnect handle to the “OFF” position.
DANGER! Electrical Shock Hazard. Do not examine, connect, or disconnect wiring on an energized bypass. Before
servicing, disconnect all power to the equipment and wait for the time specified on the warning label at a minimum. The
internal capacitor stays charged after the bypass is de-energized. The charge indicator LED extinguishes when the DC
bus voltage decreases below 50 Vdc. When all indicators are OFF, remove the covers before measuring for dangerous
voltages to make sure that the bypass is safe. If you do work on the bypass when it is energized, it will cause serious injury
or death from electrical shock.

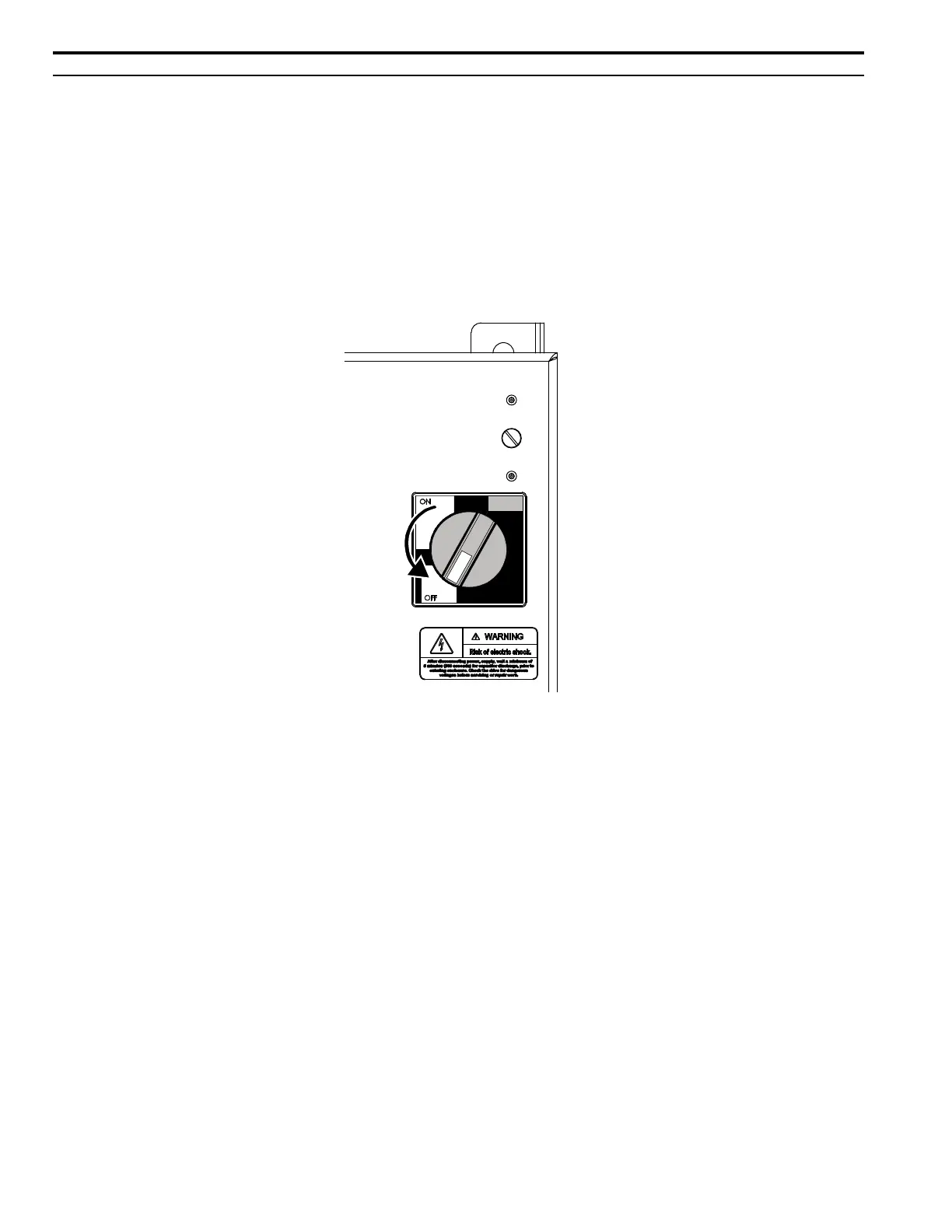

Figure 2.17 Disconnect Power
