Electrical Installation
3
3.5 Bypass PCB Control Circuit
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 93
3.5 Bypass PCB Control Circuit
Note:
When possible, use these control terminal connections on the Bypass PCB. There are additional control I/O terminals available on the Drive
Control PCB, however those terminals are active in Drive Mode ONLY and may not report correctly in Bypass Mode.
â—† Control Circuit Terminal Arrangement
The bypass control circuit terminals are in the positions shown in Figure 3.9.

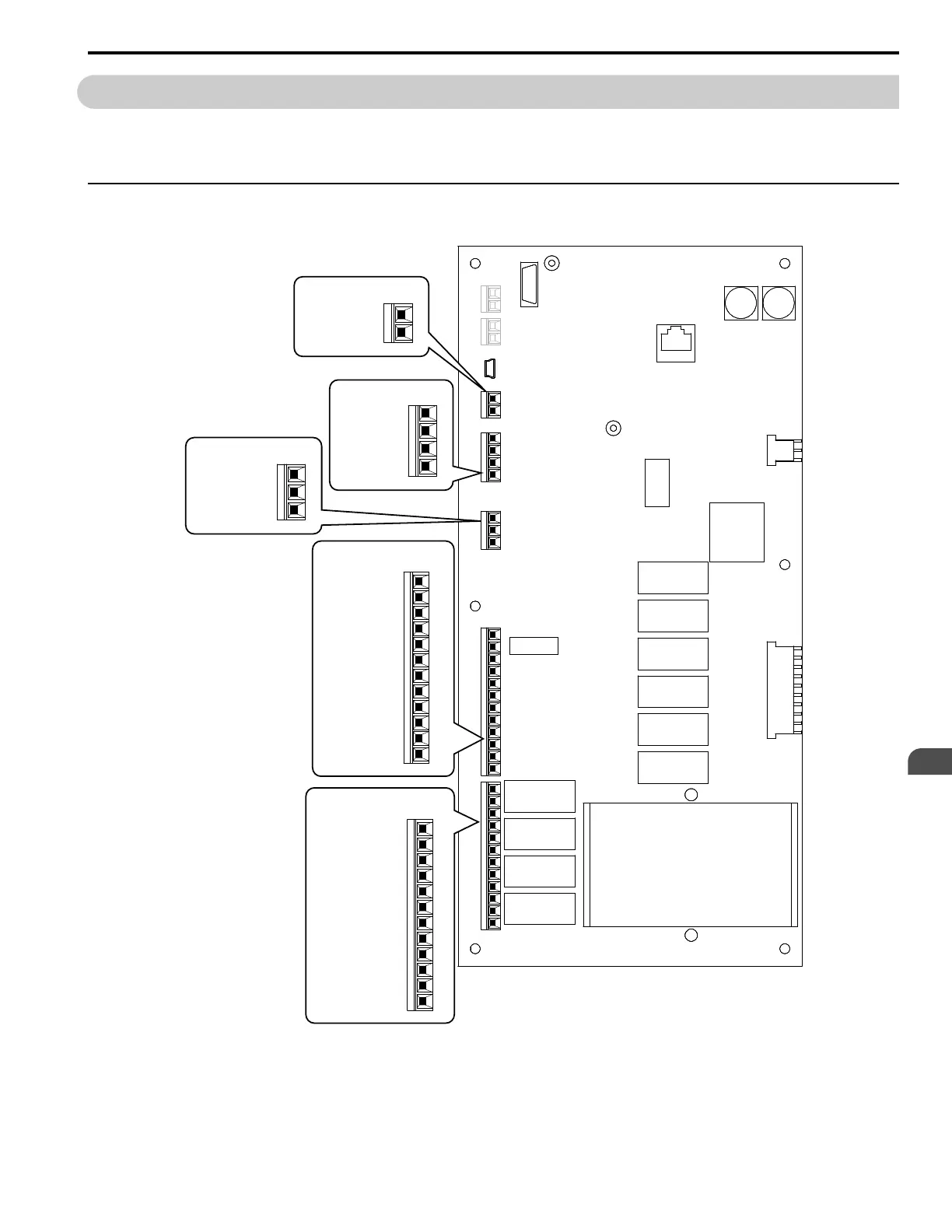

Figure 3.9 Bypass Control Circuit Terminal Arrangement
TB6
2
1
2
1
4
3
TB3
2
1
3
TB4
2
1
4
3
6
5
8
7
10
9
12
11
2
1
4
3
6
5
8
7
10
9
12
11
TB2 TB1
12. SHIELD
1 1. SHIELD
10. IG24
9. IG24
8. DI-8
7. DI-7
6. DI-6
5. DI-5
4. DI-4
3. DI-3
2. DI-2
1. DI-1
TB2
TB3
4. SHIELD
3. TXRX-
2. TXRX+
1. IG5
TB1
12. DO-10 NO
1 1. DO-10 C
10. DO-10 NC
9. DO-9 NO
8. DO-9 C
7. DO-9 NC
6. DO-8 NO
5. DO-8 C
4. DO-8 NC
3. DO-7 NO
2. DO-7 C
1. DO-7 NC
TB4
3. COMMON
2. AI-1
1. +10 Vdc
TB6
2. GROUND
1. GROUND
