4.4 Keypad Operation
148 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
Note:
Different settings and conditions will change the keypad display.
A - o2-04 [Drive Model (KVA) Selection] settings (2 or
3 digits)
B - Parameter backup data is not registered
C - Backup data does not contain the date
Information
D - Backup date
â—† Verify Keypad Parameters and Bypass Parameters
This procedure verifies that the parameter setting values that were backed up in the keypad agree with the parameter
setting values in the bypass.
Note:
• Always stop the bypass before you start to verify the parameters.
• The bypass will not accept a Run command while it verifies parameters.
1. Push (Home) to show the HOME screen.
Note:
• When the bypass is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If the screen does not show [Home] for , push (Back), and then push to show [Home].
2. Push (Menu).
3. Push or to select [Parameter Backup/Restore], then push .
4. Push or to select the item to verify, then push .

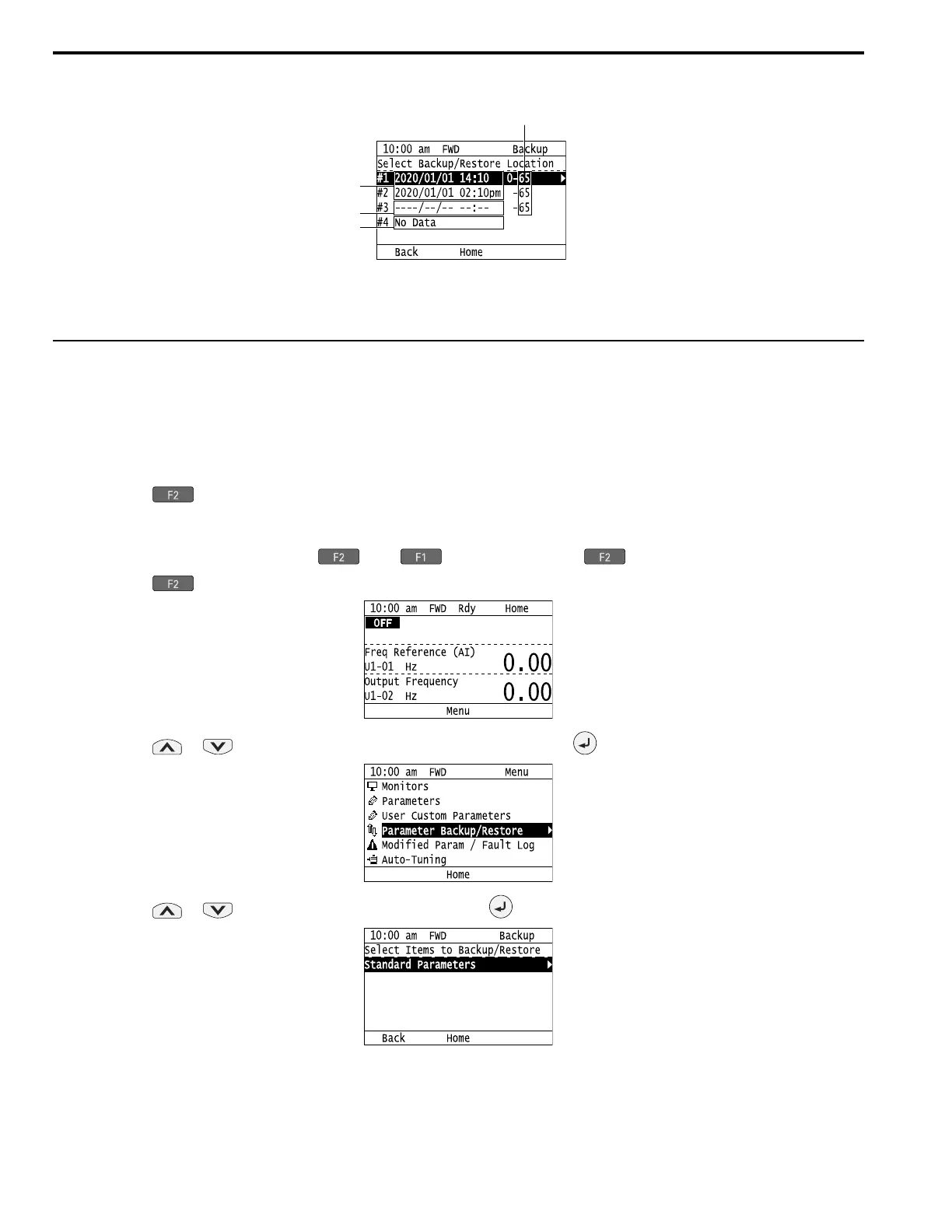

Back Home
#4 No Data
#3 ----/--/-- --:-- 0-65
#2 2020/01/01 02:10pm 0-65
#1 2020/01/01 14:10 0-65
Select Backup/Restore Location
10:00 am FWD Backup
A
D
C
B
