2.7 Removing/Reattaching Covers
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 47
2. Loosen the front cover screw.

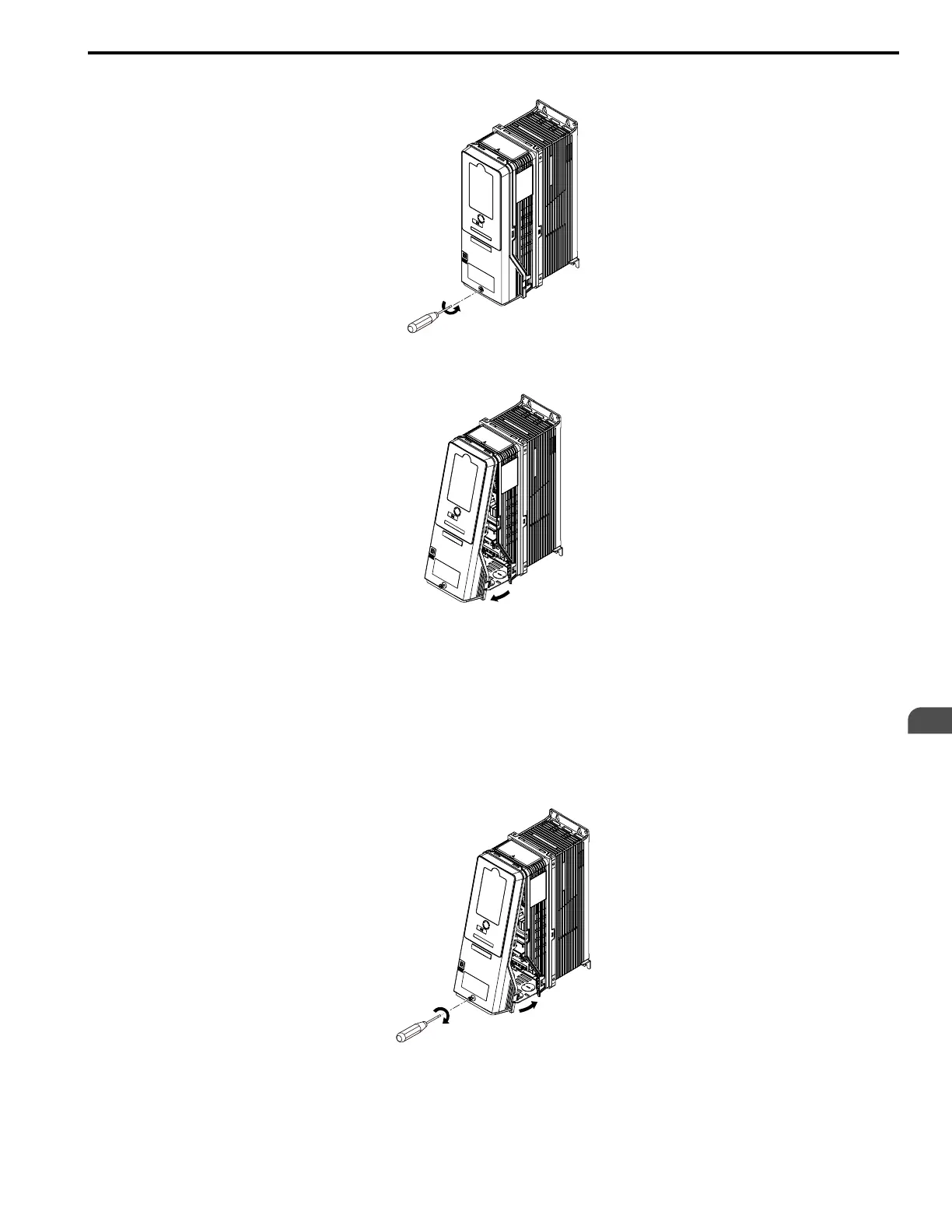

Figure 2.14 Loosen the Front Cover Screw
3. Push on the tabs in the sides of the front cover then pull the front cover forward to remove it from the drive.
Figure 2.15 Remove the Front Cover
■ Reattach the Front Cover
1. Wire the drive and other peripheral devices.
2. Reverse the steps to reattach the cover.
Note:
• Make sure that you did not pinch wires or signal lines between the front cover and the drive before you reattach the cover.
• Make sure that the tabs on the sides of the front cover correctly click into the hook.
• Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 in∙lb to 11.77 in∙lb).
Figure 2.16 Reattach the Front Cover

YASKAWA HV600 Specifications

General

Category	DC Drives
Series	HV600
Overload Capacity	150% for 60 seconds
Output Voltage	0 - Input Voltage
Enclosure	NEMA 1, NEMA 12
Communication	Ethernet/IP, Modbus, DeviceNet, Profibus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Control Method	Vector Control
