YASKAWA HV600 User Manual

Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 155

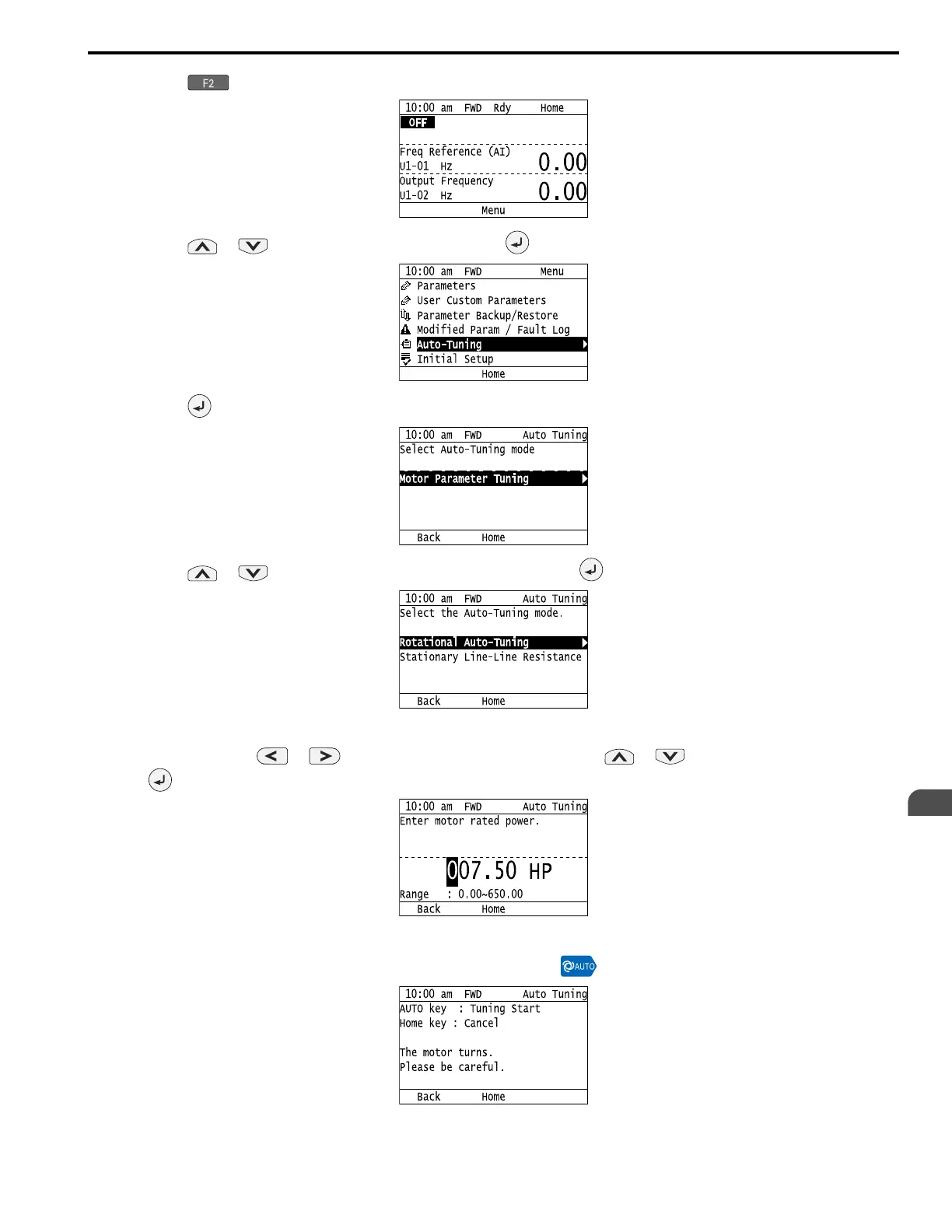

2. Push (Menu).
3. Push or to select [Auto-Tuning], then push .
4. Push .
5. Push or to select [Rotational Auto-Tuning], then push .
6. Follow the messages shown on the keypad to input the necessary Auto-Tuning data.
Example: Push or to select the specified digit, then push or to change the number. Push
to save the change and move to the next entry field.
7. Follow the messages shown on the keypad to do the next steps.
8. When the keypad shows the Auto-Tuning start screen, push .
Auto-Tuning starts.

YASKAWA HV600 Specifications

General

Category	DC Drives
Series	HV600
Overload Capacity	150% for 60 seconds
Output Voltage	0 - Input Voltage
Enclosure	NEMA 1, NEMA 12
Communication	Ethernet/IP, Modbus, DeviceNet, Profibus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Control Method	Vector Control
