5.4 d: References
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 239

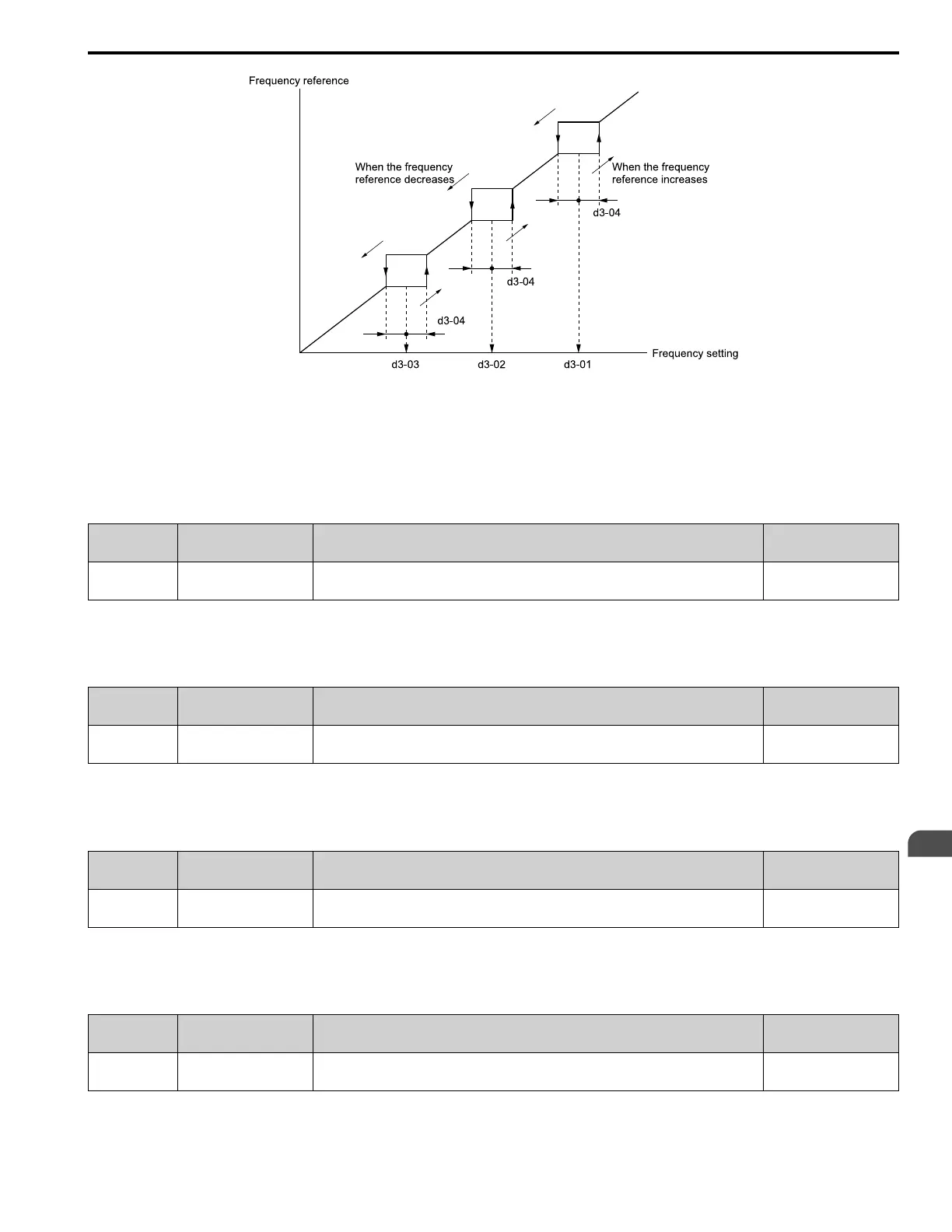

Figure 5.35 Jump Frequency
Note:
• When you set Jump Frequencies 1 to 3, make sure that the parameters do not overlap.
• When the drive is in the range of the Jump frequency, the frequency reference changes automatically. When Jump is executed, the output
frequency changes smoothly as specified by the values set in C1-01 [Acceleration Time 1] and C1-02 [Deceleration Time 1].
■ d3-01: Jump Frequency 1
No.
(Hex.)
Name Description
Default
(Range)
d3-01
(0294)
Jump Frequency 1 Sets the median value of the frequency band that the drive will avoid. 0.0 Hz
(0.0 - 400.0 Hz)
Note:
Set this parameter to 0.0 Hz to disable the Jump frequency.
■ d3-02: Jump Frequency 2
No.
(Hex.)
Name Description
Default
(Range)
d3-02
(0295)
Jump Frequency 2 Sets the median value of the frequency band that the drive will avoid. 0.0 Hz
(0.0 - 400.0 Hz)
Note:
Set this parameter to 0.0 Hz to disable the Jump frequency.
■ d3-03: Jump Frequency 3
No.
(Hex.)
Name Description
Default
(Range)
d3-03
(0296)
Jump Frequency 3 Sets the median value of the frequency band that the drive will avoid. 0.0 Hz
(0.0 - 400.0 Hz)
Note:
Set this parameter to 0.0 Hz to disable the Jump frequency.
■ d3-04: Jump Frequency Width
No.
(Hex.)
Name Description
Default
(Range)
d3-04
(0297)
Jump Frequency Width Sets the width of the frequency band that the drive will avoid. 1.0 Hz
(0.0 - 20.0 Hz)
