Parameter Details
5
5.5 E: Motor Parameters
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 247

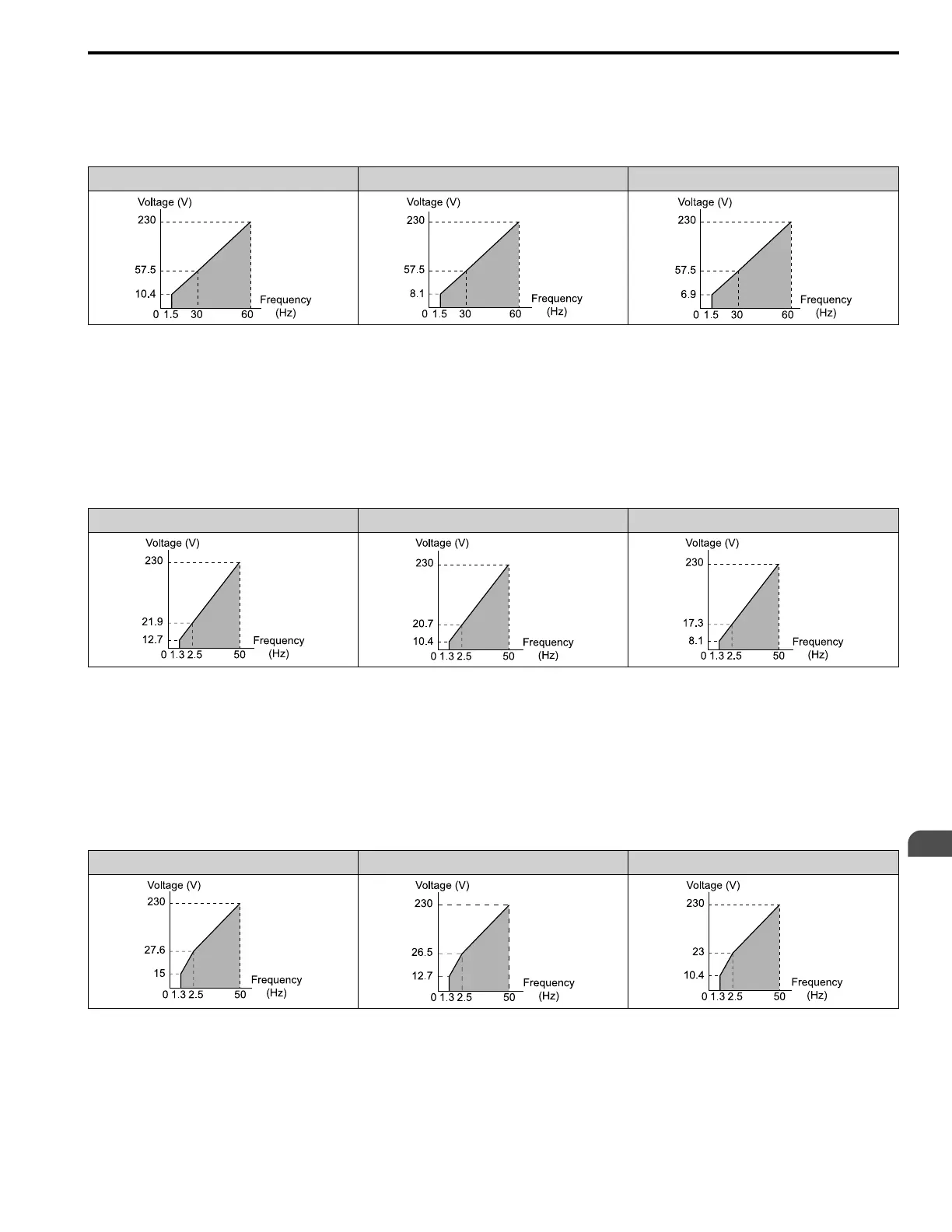

Use this derated torque pattern for torque loads proportional to two times the rotation speed. For example, fans and
pumps.
Note:
The voltage values in the figures are for 208/240 V. Multiply the values by 2 for 480 V.
D002 - D016, A002 - A015, B001 - B007 D024 - D169, A022 - A154, B011 - B077 A192 - A248, B096 - B302
8 : High Trq, 50Hz, 25% Vmin boost
Use this pattern when moderate torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft) minimum.
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 208/240 V. Multiply the values by 2 for 480 V.
D002 - D016, A002 - A015, B001 - B007 D024 - D169, A022 - A154, B011 - B077 A192 - A248, B096 - B302
9 : High Trq, 50Hz, 65% Vmin boost
Use this pattern when high torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft) minimum.
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 208/240 V. Multiply the values by 2 for 480 V.
D002 - D016, A002 - A015, B001 - B007 D024 - D169, A022 - A154, B011 - B077 A192 - A248, B096 - B302
A : High Trq, 60Hz, 25% Vmin boost
Use this pattern when moderate torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft) minimum.
• There is an AC reactor connected to the drive output.
