YASKAWA HV600 User Manual

Parameter Details
5
5.5 E: Motor Parameters
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 249

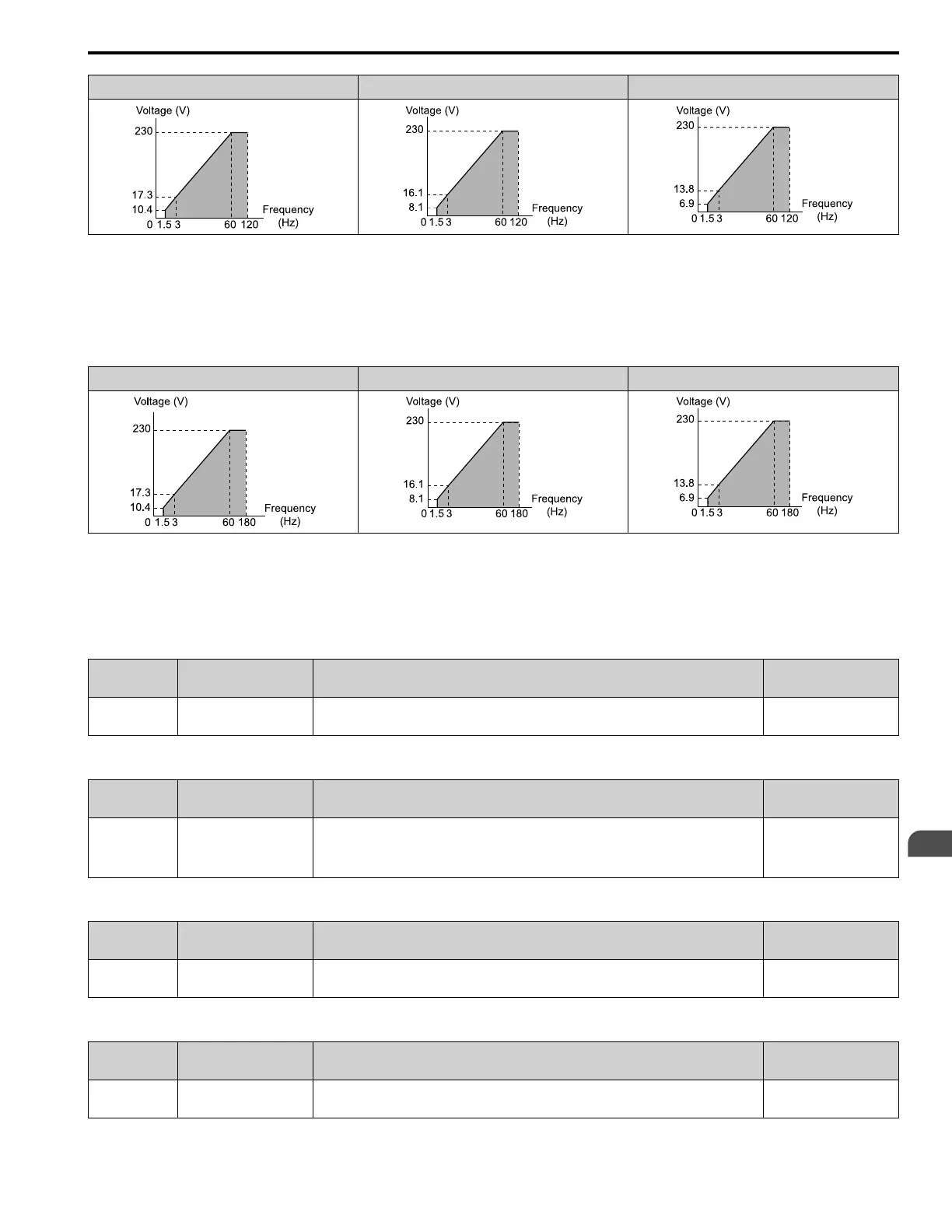

D002 - D016, A002 - A015, B001 - B007 D024 - D169, A022 - A154, B011 - B077 A192 - A248, B096 - B302
E : Const Trq, 60 Hz base, 180 Hz max
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate at
more than 60 Hz.
Note:
The voltage values in the figures are for 208/240 V. Multiply the values by 2 for 480 V.
D002 - D016, A002 - A015, B001 - B007 D024 - D169, A022 - A154, B011 - B077 A192 - A248, B096 - B302
F : Custom
Set E1-04 to E1-13 [V/f Pattern for Motor 1] to set the values for this custom pattern.
The default settings are the same as setting value 1 [Const Trq, 60Hz base, 60Hz max].
■ E1-04: Maximum Output Frequency
No.
(Hex.)
Name Description
Default
(Range)
E1-04
(0303)
Maximum Output Frequency Sets the maximum output frequency for the V/f pattern. 60.0 Hz
(40.0 to 400.0 Hz)
■ E1-05: Maximum Output Voltage
No.
(Hex.)
Name Description
Default
(Range)
E1-05
(0304)
Maximum Output Voltage Sets the maximum output voltage for the V/f pattern. 208/240 V: 230.0 V,
480 V: 460.0 V
(208/240 V: 0.0 - 255.0 V,
480 V: 0.0 - 510.0 V)
■ E1-06: Base Frequency
No.
(Hex.)
Name Description
Default
(Range)
E1-06
(0305)
Base Frequency Sets the base frequency for the V/f pattern. 60.0 Hz
(0.0 - E1-04)
■ E1-07: Mid Point A Frequency
No.
(Hex.)
Name Description
Default
(Range)
E1-07
(0306)
Mid Point A Frequency Sets a middle output frequency for the V/f pattern. 30.0 Hz
(0.0 - E1-04)
