Parameter Details
5
5.7 H: Terminal Functions
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 265
■ 5: Multi-Step Speed Reference 3
Setting Value Function Description
5 Multi-Step Speed Reference
3
Uses speed references d1-01 to d1-08 to set a multi-step speed reference.
Note:
Refer to “Setting Procedures for Multi-step Speed Operation” in “d: Reference Settings” for more information.
■ 6: Jog Reference Selection
Setting Value Function Description
6 Jog Reference Selection Sets the drive to use the JOG Frequency Reference (JOG command) set in d1-17 [Jog Reference]. The JOG Frequency Reference
(JOG command) overrides the d1-01 to d1-08 [References 1 to 8] settings.
■ 7: Accel/Decel Time Selection 1
Setting Value Function Description
7 Accel/Decel Time Selection
1
Sets the drive to use Acceleration/Deceleration Time 1 [C1-01, C1-02] or Acceleration/Deceleration Time 2 [C1-03, C1-04].
Note:
Refer to C1: Accel & Decel Time on page 227 for more information.
■ 8: Baseblock Command (N.O.)
Setting Value Function Description
8 Baseblock Command (N.O.) Sets the command that stops drive output and coasts the motor to stop when the input is ON.
The keypad flashes bb [Baseblock]. If you cancel the baseblock command when the Run command is active, the drive
will restart the motor and use the speed search function.

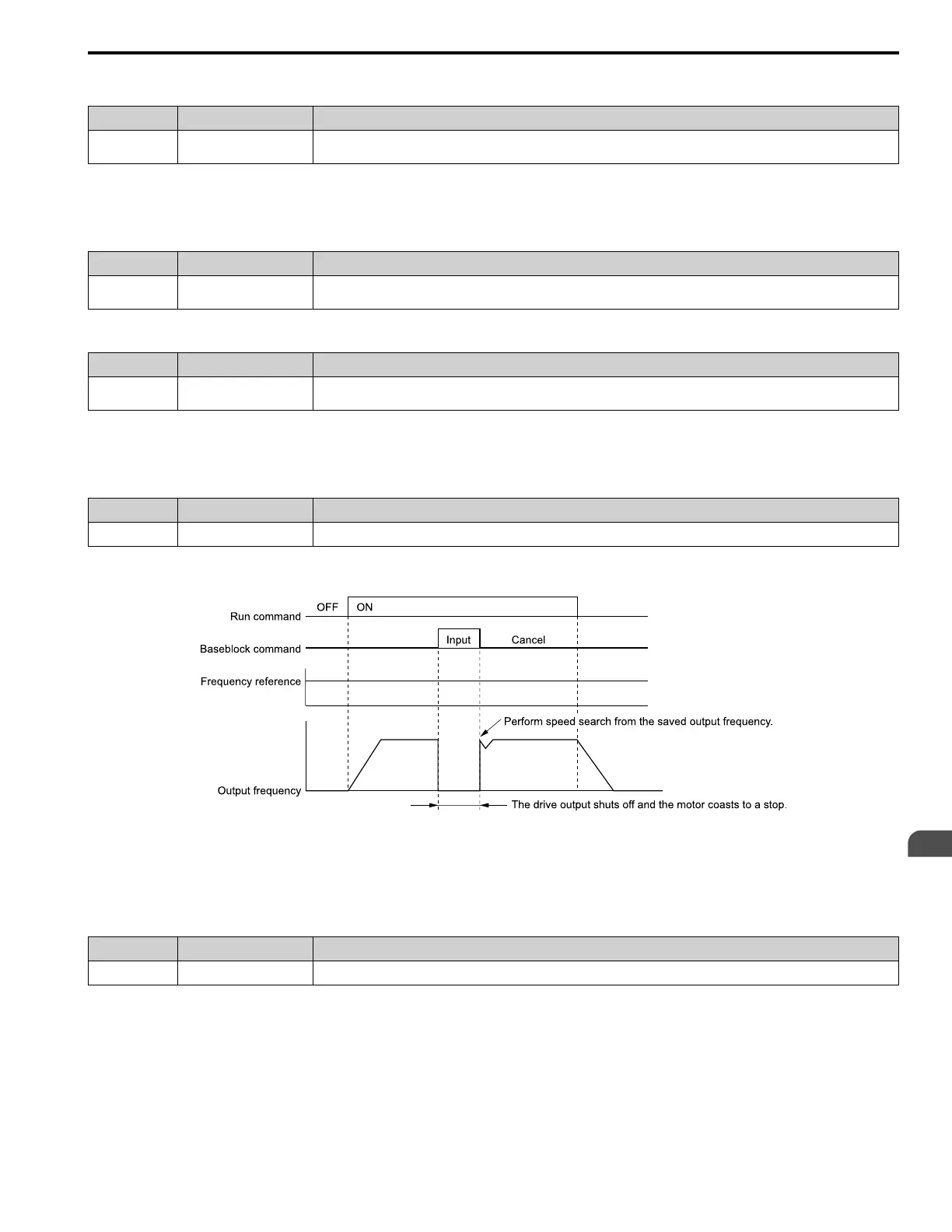

Figure 5.40 Baseblock Command Time Chart
ON : Baseblock (drive output stop)
OFF : Normal operation
■ 9: Baseblock Command (N.C.)
Setting Value Function Description
9 Baseblock Command (N.C.) Sets the command that stops drive output and coasts the motor to stop when the input terminal is OFF.
The keypad flashes bb [Baseblock]. If you cancel the baseblock command when the Run command is active, the drive
will restart the motor and use the speed search function.
ON : Normal operation
OFF : Baseblock (drive output stop)
