Mechanical Installation
2

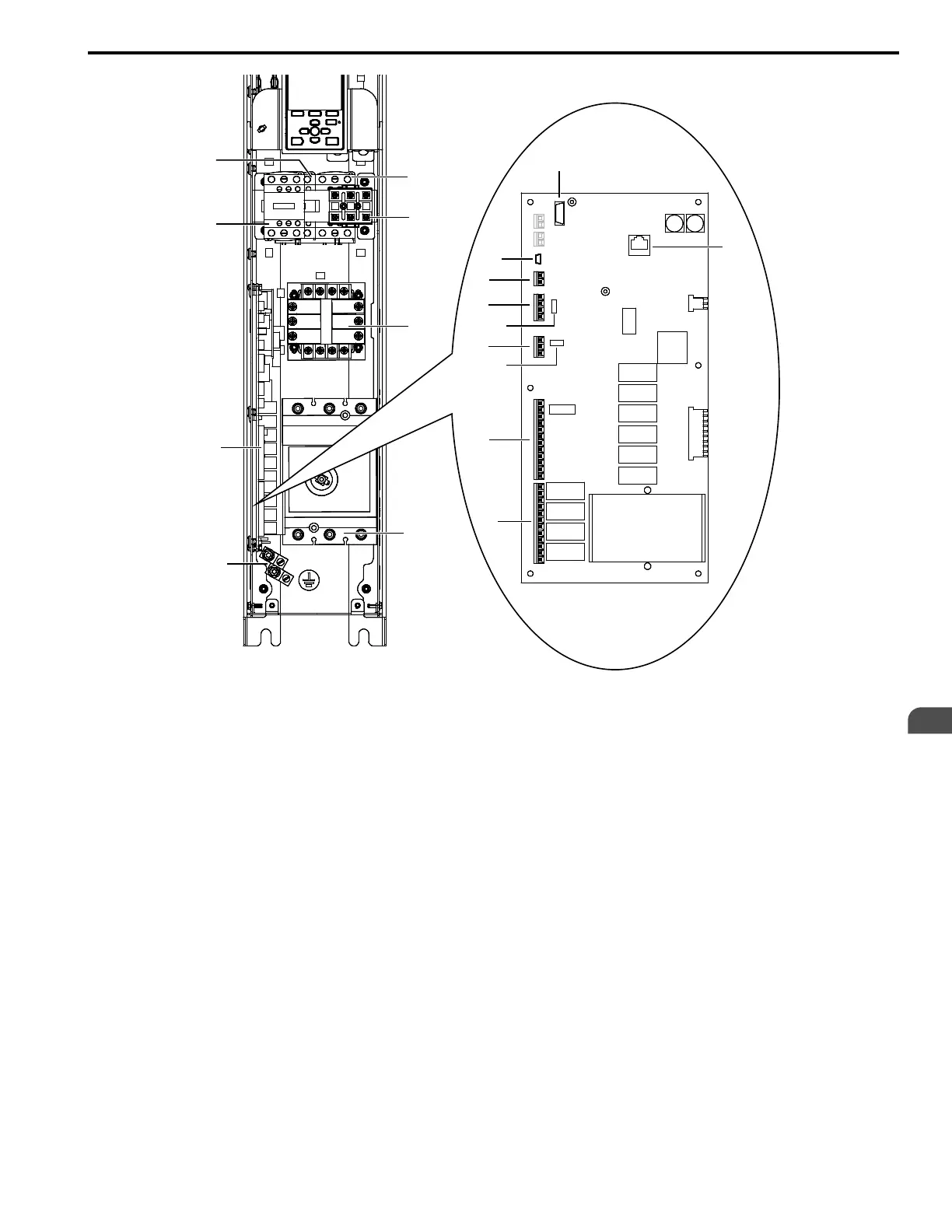

2.5 Bypass Component Names
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 39
A - Output contactor K2
B - Input contactor K1
C - Motor connections
D - Input power terminals
E - Ground terminals
F - A2 bypass control board
G - 120 V control transformer
H - Bypass contactor K3
I - USB port CN1
J - Terminal TB6 (Ground)
K - Terminal TB3 (Serial Comms)
L - RS-485 terminator switch S1
M - Terminal TB4 (Analog Input)
N - Analog input V or I switch S2
O - Terminal TB2 (Digital Inputs)
P - Terminal TB1 (Digital Outputs)
Q - Digital operator port CN2
R - Option card connector CN5
Figure 2.6 Front View of Narrow Components
E
F
C
B
A
H
G
D
Q
P
O
M
K
J
I
R
L
N
