Parameter Details
5
5.11 S: Special Applications
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 391

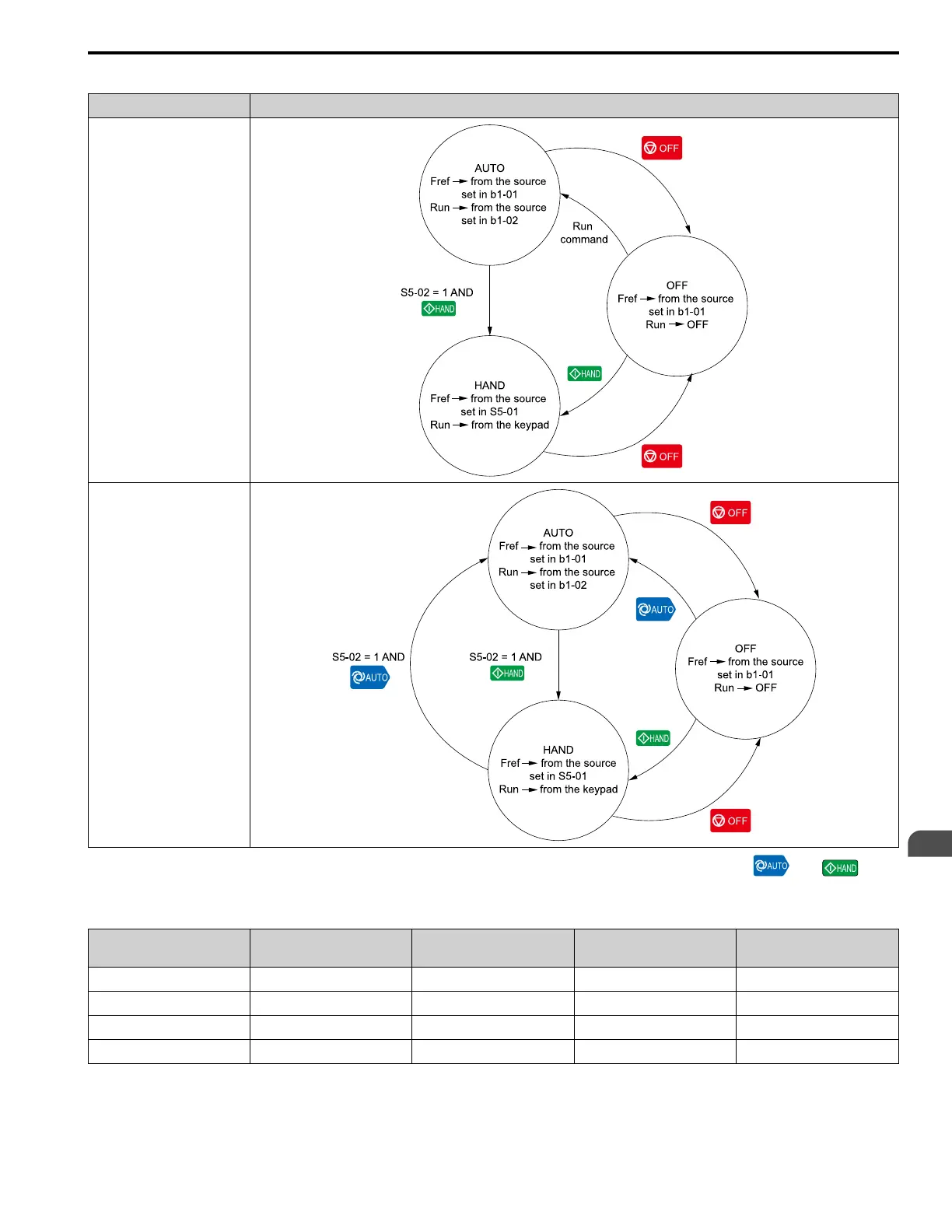

Table 5.59 Drive Operation in Normal Mode
b1-02 Settings HOA Modes Transition
0 to 3
7 to 9
When you use the MFDIs set for H1-xx = 6D and 6E [AUTO Command and HAND Command], and on
the HOA keypad do not function. When S5-04 = 1, use these MFDIs together.
Table 5.60 MFDI Settings and Drive Operation in Normal Mode
H1-xx = 6D
[AUTO Command]
H1-xx = 6E
[HAND Command]
Operation Mode Frequency Reference Source Run Command Source
OFF OFF OFF Based on b1-01 -
OFF ON HAND Based on S5-01 Keypad
ON OFF AUTO Based on b1-01 Based on b1-02
ON ON OFF Based on b1-01 -
