2.6 Moving the Bypass
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 43
1. Put the bypass on the ground horizontally.
NOTICE: When you attach a horizontal lifting cable or chain to the bypass, use a jig or pad between the wire and the
bypass. The wire can scratch the drive and cause damage to the bypass.
A - Hanging bracket (4)

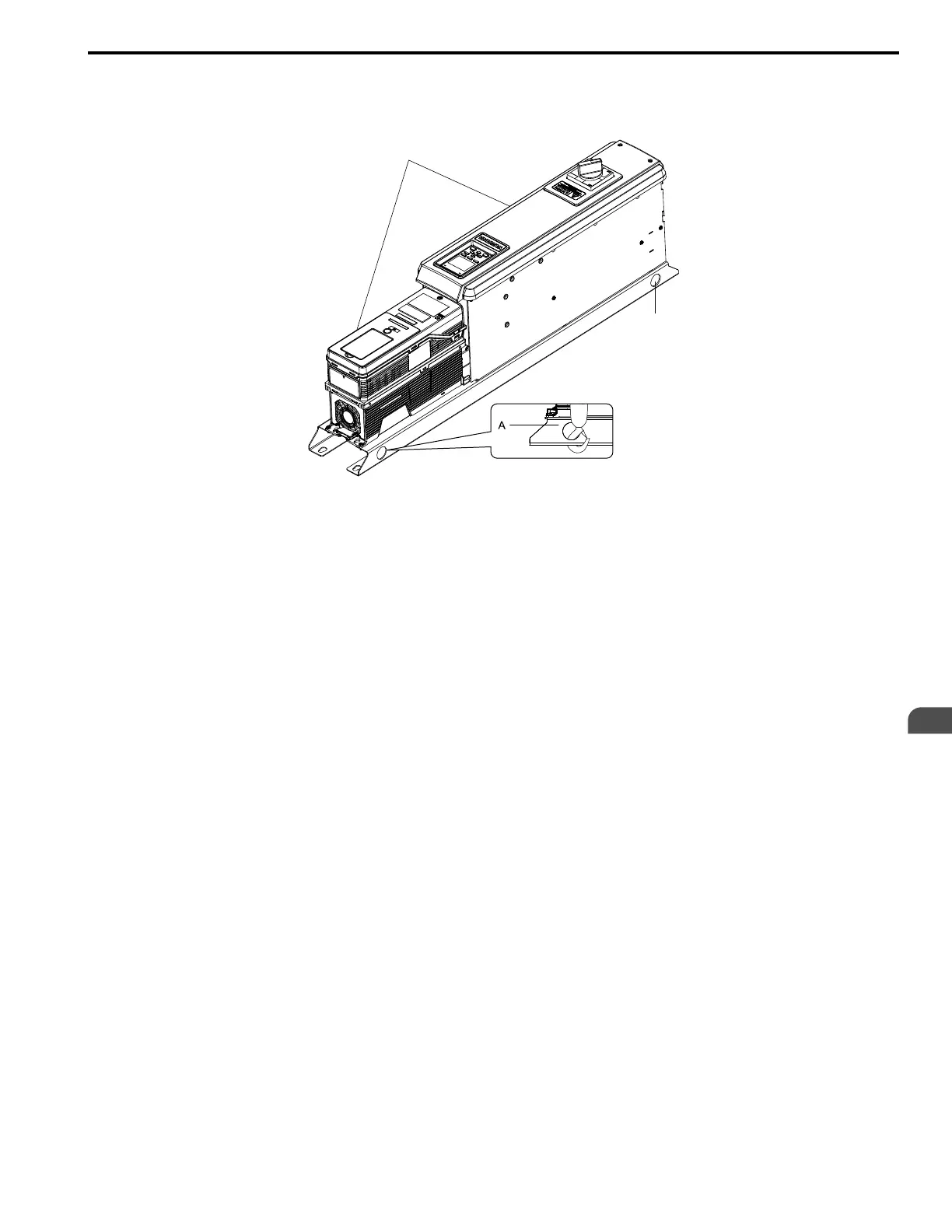

Figure 2.10 Horizontal Suspension
2. Connect wires to the four hanging brackets.
3. Use a crane to lift the bypass.
A
A

YASKAWA HV600 Specifications

General

Category	DC Drives
Series	HV600
Overload Capacity	150% for 60 seconds
Output Voltage	0 - Input Voltage
Enclosure	NEMA 1, NEMA 12
Communication	Ethernet/IP, Modbus, DeviceNet, Profibus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Control Method	Vector Control
