8.4 Replace Drive Cooling Fans and Circulation Fans
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 565
2. Push the fan toward the bottom of the drive to push on the tabs at the bottom of the fan, then pull the fan
forward to remove it from the drive.
A - Circulation fan B - Tabs

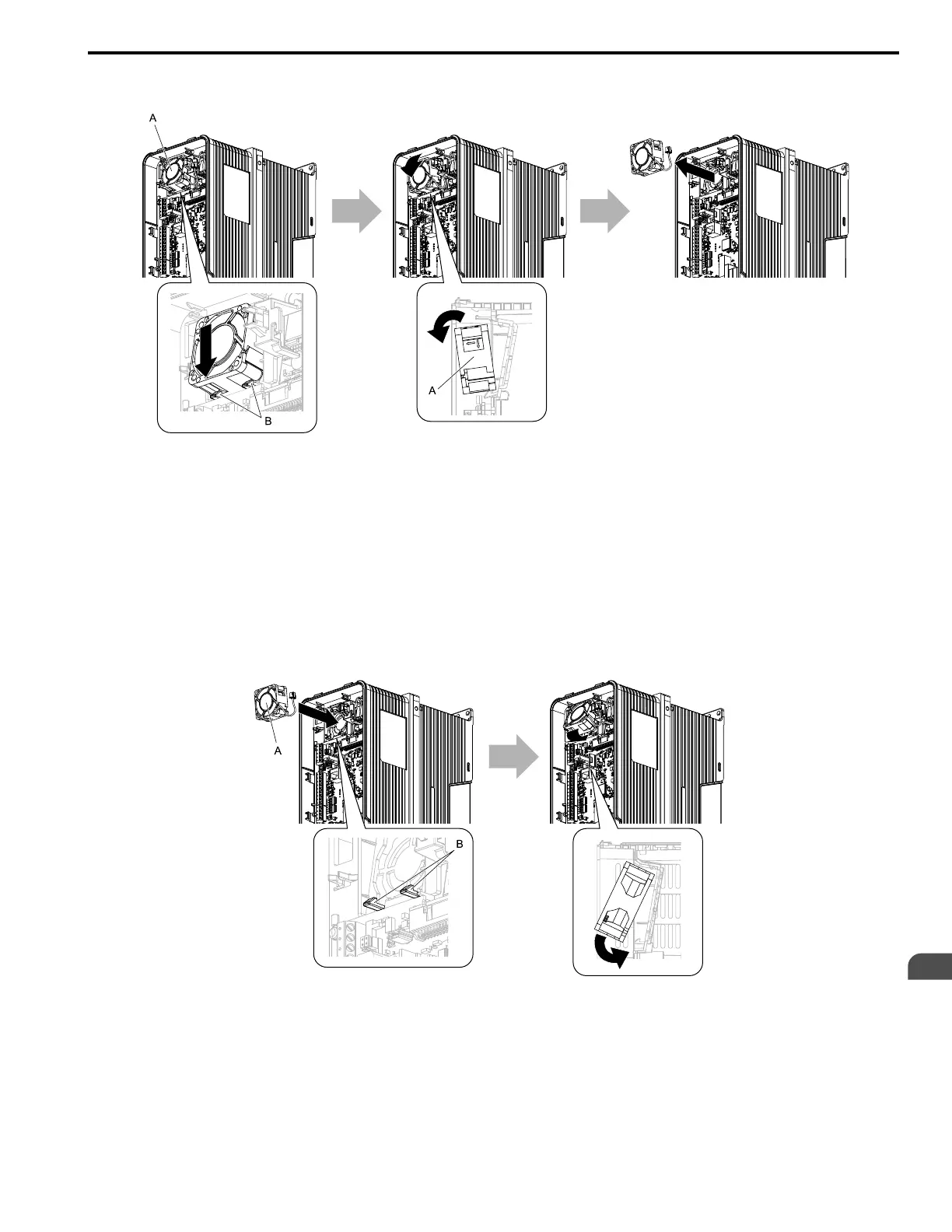

Figure 8.10 Remove the Circulation Fan
■ Install a Circulation Fan
Note:
Use this procedure only when you use one of these drive models:
• 2024CVx, 2031CVx
• 4021CVx to 4034CVx
Reverse the removal procedure to install a circulation fan.
1. Put the side of the fan nearest to the top of the drive in first, and push it until the tabs click into position.
A - Circulation fan B - Tabs
Figure 8.11 Install the Circulation Fan
