8.4 Replace Drive Cooling Fans and Circulation Fans
586 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

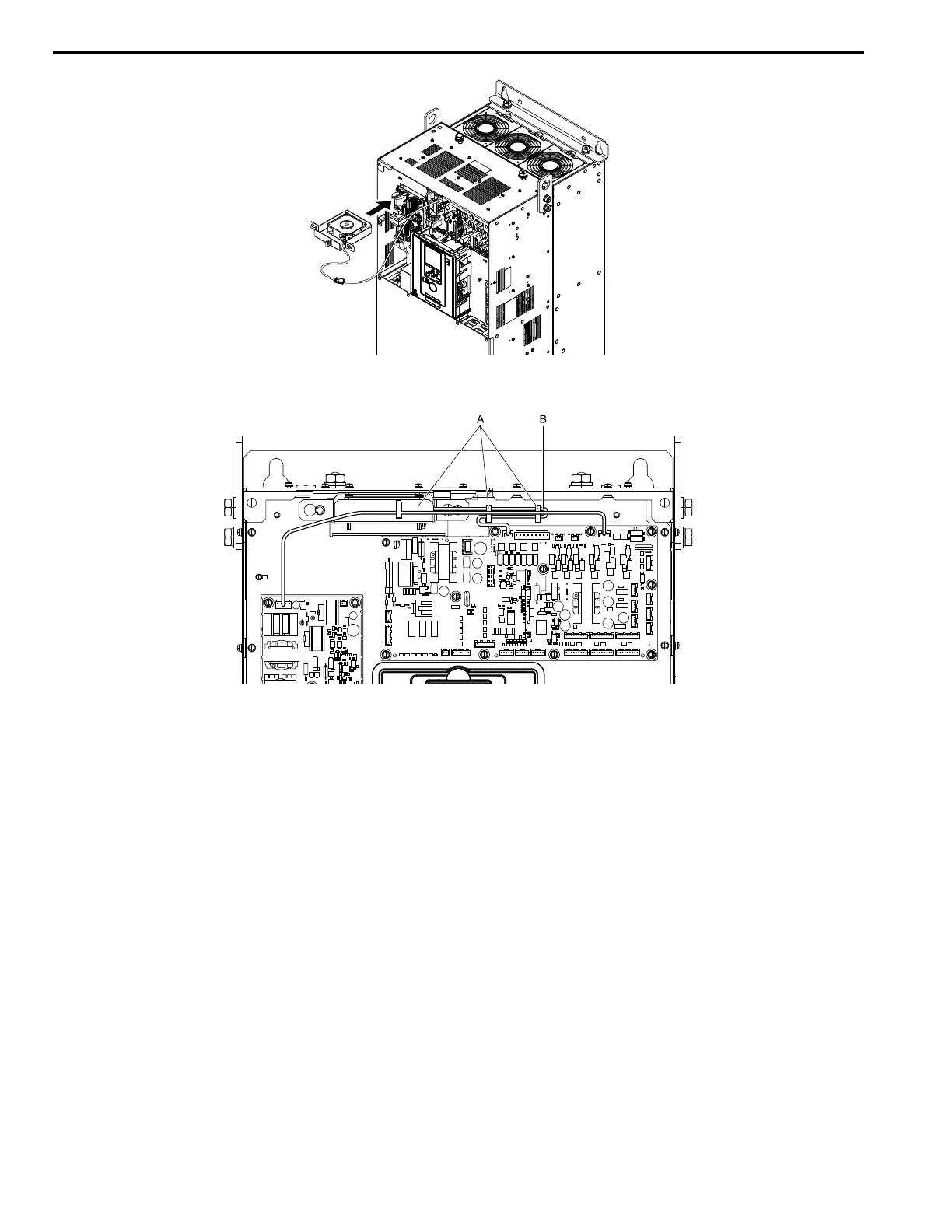

Figure 8.60 Install the Fan Unit
5. Safety the cables through the clamps.
A - Clamps B - Fan cable
6. Install the drive cover.
7. Energize the drive and set o4-03 = 0 [Fan Operation Time Setting = 0 h] to reset the cooling fan operation
time.
