YASKAWA HV600 User Manual

Standards Compliance
11
11.3 European Standards
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 775

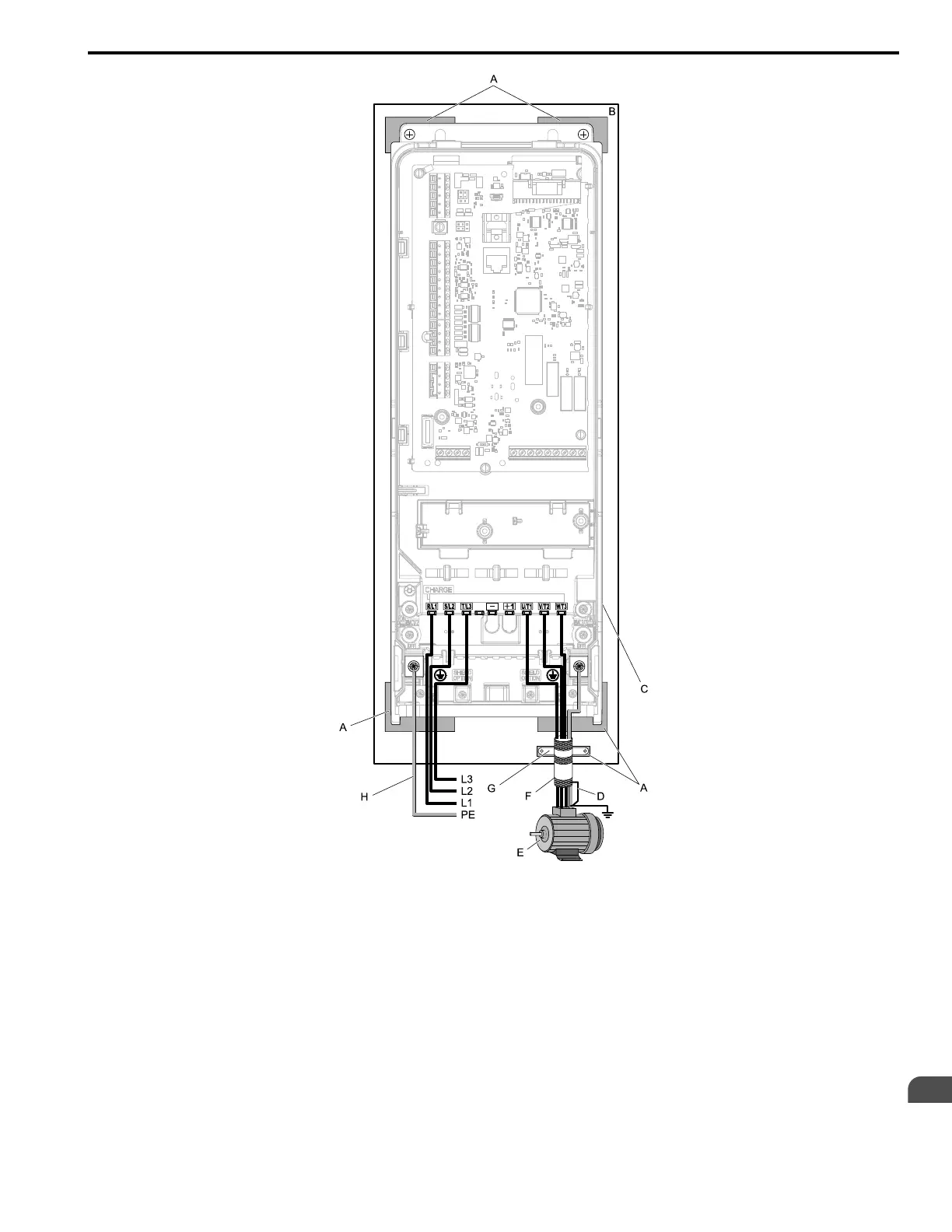

A - Grounding surface (Remove any paint or sealant.)
B - Metal plate
C - Drive
D - Shielded wire
E - Motor
F - Motor cable
G - Cable clamp
H - Grounding wire
Figure 11.5 Install a Drive with a Built-in EMC Filter
Ground Wiring
WARNING! Electrical Shock Hazard. Do not remove covers or touch circuit boards while the bypass is energized. If you touch the
internal components of an energized bypass, it can cause serious injury or death.
WARNING! Electrical Shock Hazard. Ground the neutral point on the power supply of the bypass to comply with the EMC Directive
before you turn on the EMC filter. If you turn ON the EMC filter, but you do not ground the neutral point, it can cause serious injury or
death.
Enable the Internal EMC Filter
Move the screws to turn ON and OFF (enable and disable) the EMC filter.

YASKAWA HV600 Specifications

General

Category	DC Drives
Series	HV600
Overload Capacity	150% for 60 seconds
Output Voltage	0 - Input Voltage
Enclosure	NEMA 1, NEMA 12
Communication	Ethernet/IP, Modbus, DeviceNet, Profibus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Control Method	Vector Control
